The key features of the CompuCarve multi-purpose tool and their
locations are shown in the following illustrations.
Flexshaft
Cable
Head Crank
Handle
Top Safety
Cover
" Cutting
Trucks
Head
Head Locking
Lever (Shown in
Non-Locked
Position)
LCD Display
Sliding Guide Plate
Release Lever
Keypad
Display Contrast
Control
Vertical Corner Post
Sliding Guide Plate
Memory Card
Slot
• Folding Outfeed
Table
Outfeed Table
Height Adjuster

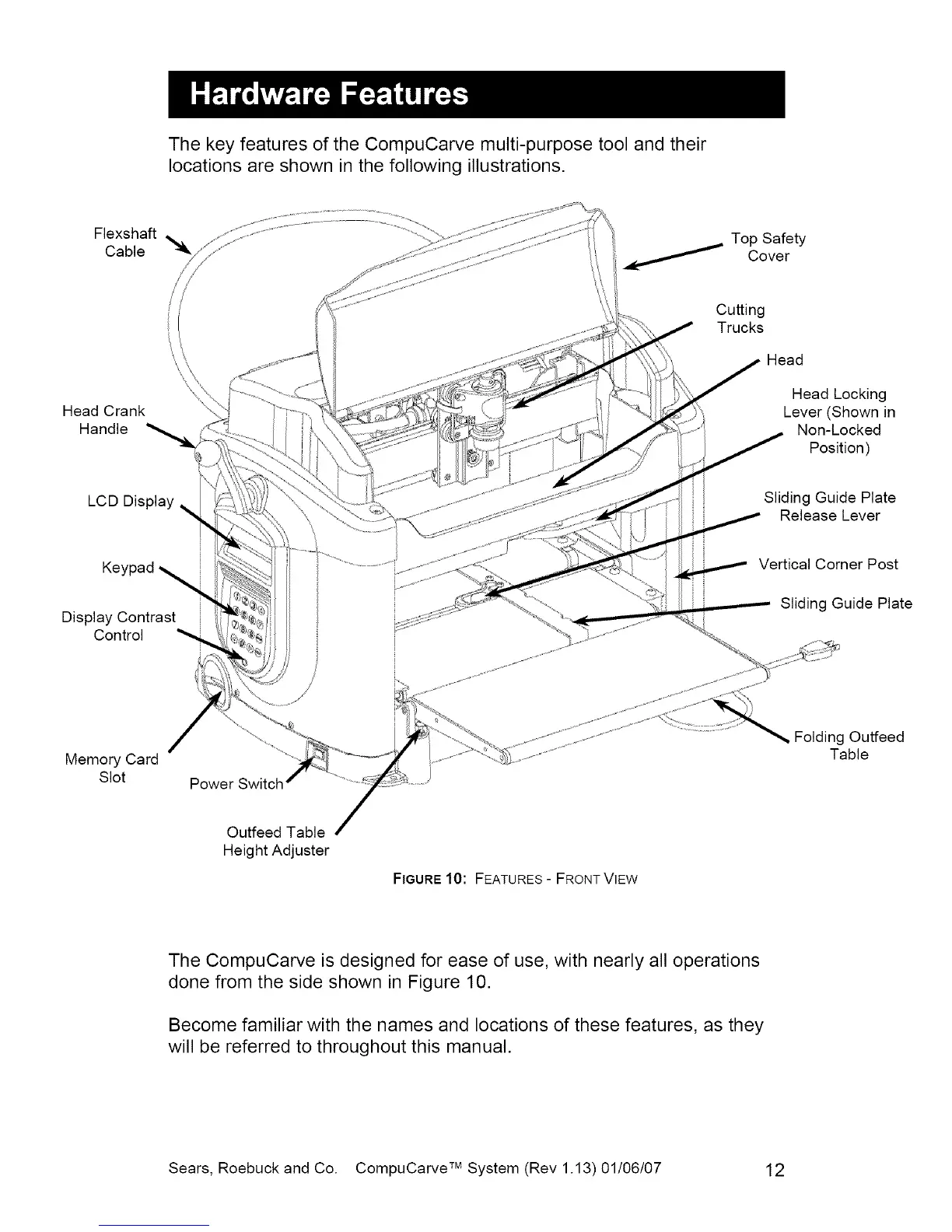

FIGURE 10" FEATURES - FRONT VIEW
The CompuCarve is designed for ease of use, with nearly all operations
done from the side shown in Figure 10.
Become familiar with the names and locations of these features, as they
will be referred to throughout this manual.
Sears, Roebuck and Co. CompuCarve TM System (Rev 1.13) 01/06/07 12
