Creality CR-5 Pro User Manual

8

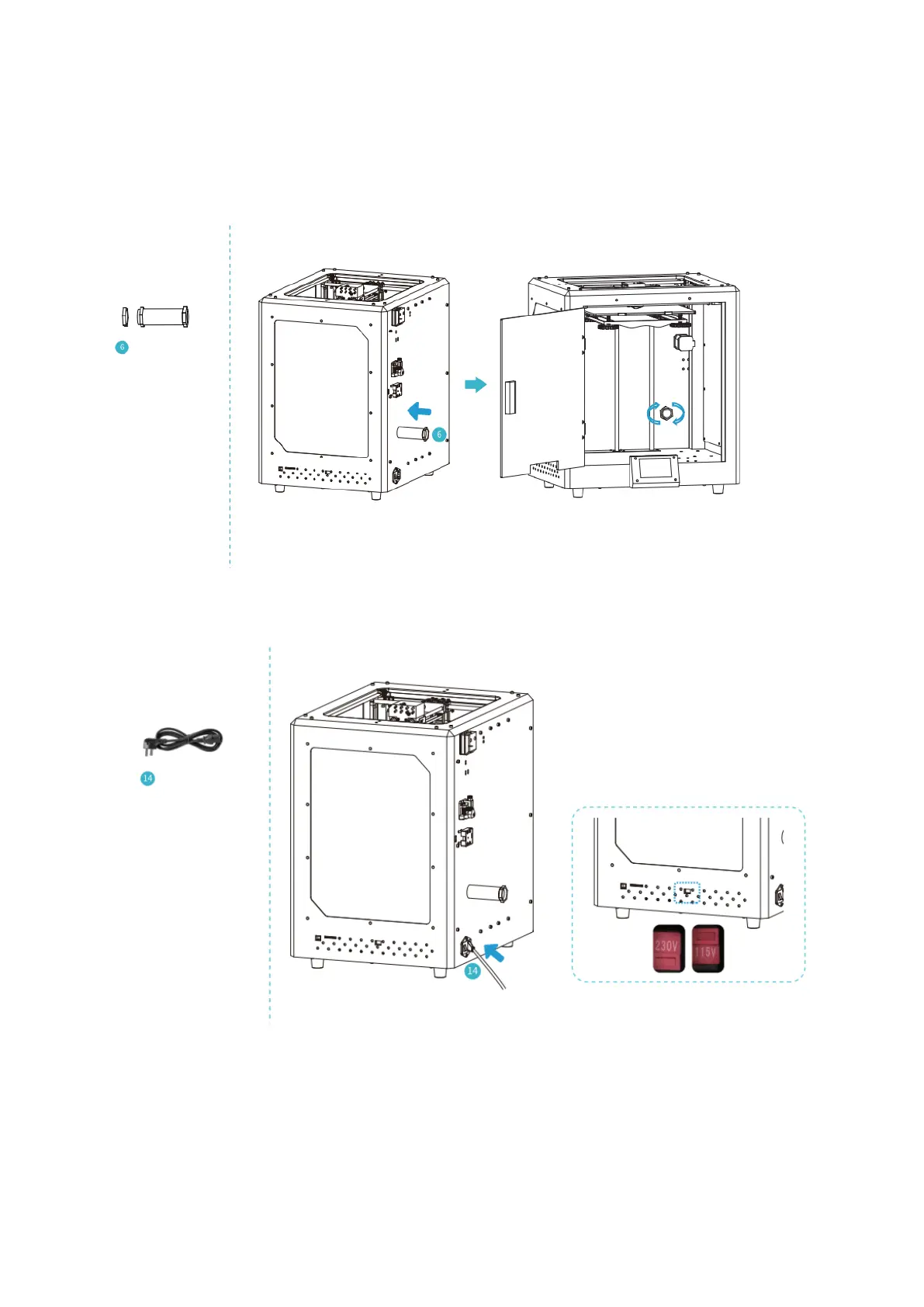

1. Install The Spool
Attach Spool Holder with included Nuts.
2. Power Supply Wiring
Caution
• Select the correct input voltage to match your local mains (115/230V)
• Damage can occur if voltage is set incorrectly.
• Connect the power cord and turn the power switch to 1 to turn it on.
• Do not connect or disconnect the cables when the machines is powered on.
1x Spool & Nuts
1x Power Adapter

Creality CR-5 Pro Specifications

General

Layer Resolution	0.1 - 0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Nozzle Temperature	260°C
Max Bed Temperature	100°C
Connectivity	USB, SD Card
Printing Speed	30 - 60 mm/s
Supported Materials	PLA, ABS, PETG, TPU
Printing Technology	FDM (Fused Deposition Modeling)
Display	4.3-inch Touch Screen
Machine Dimensions	530 x 487 x 612 mm
Build Volume	300 x 225 x 380 mm
