Creality Ender-3 V3

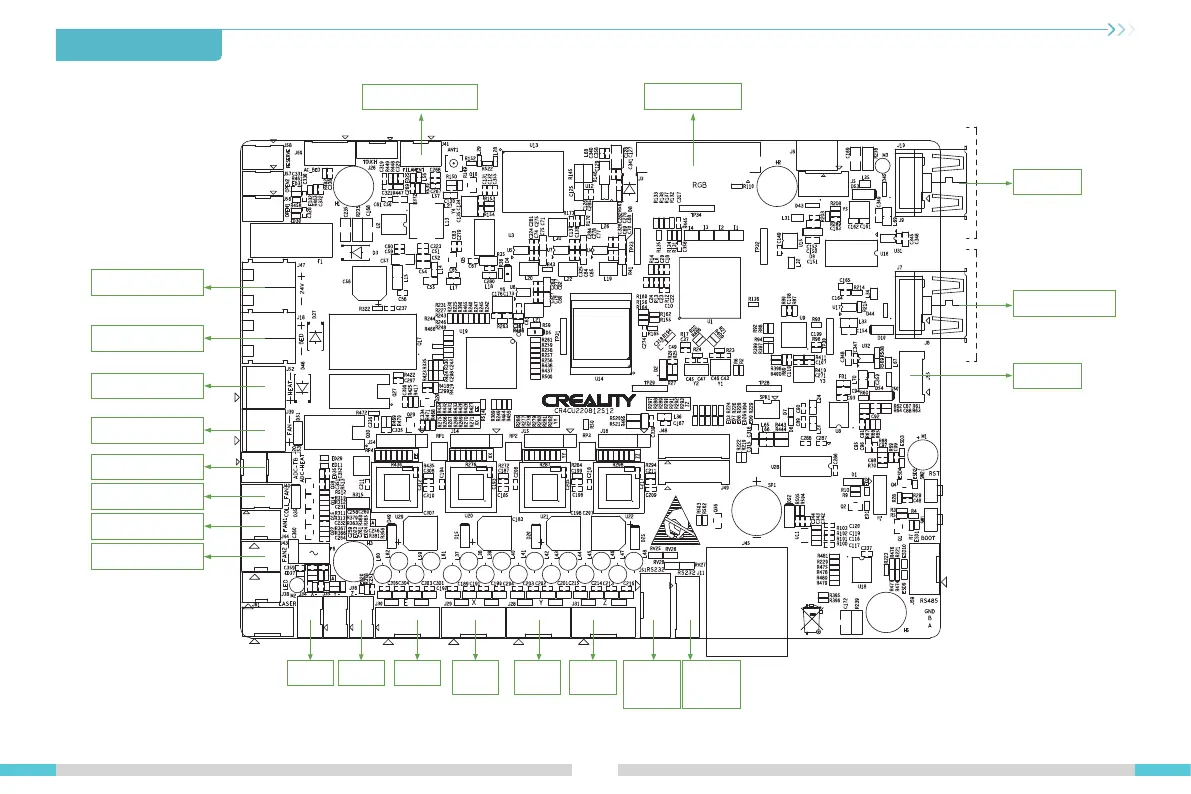

9.Circuit Wiring
22
RGB screen
NC
USB flash disk
AI LiDAR
NC
DC 24V
Hotbed (BED)
Heating (NC)
Fan (NC)
Hotbed thermistor
Bottom shell fan
Fan (NC)
Fan (NC)
X-axis
motor
Y-axis
motor
Z-axis
motor
Extruder
commu-
nication
Hotbed
commu-
nication
X limit Z limit
Filament Detection
