Product Manual — Doc. 9324A IV-SAM-VXP-1B and IV-SAM-VXS-1B • 25
If using multiple devices, a P300, Q-SYS, SCM-820, or Tesira device (or the Intellimix Room
software) must be set as an adjudicator. To set an adjudicator device, select the Enable
Adjudicator check box, then enter the control IPaddress of the device into the Adjudicator IPtext
field.

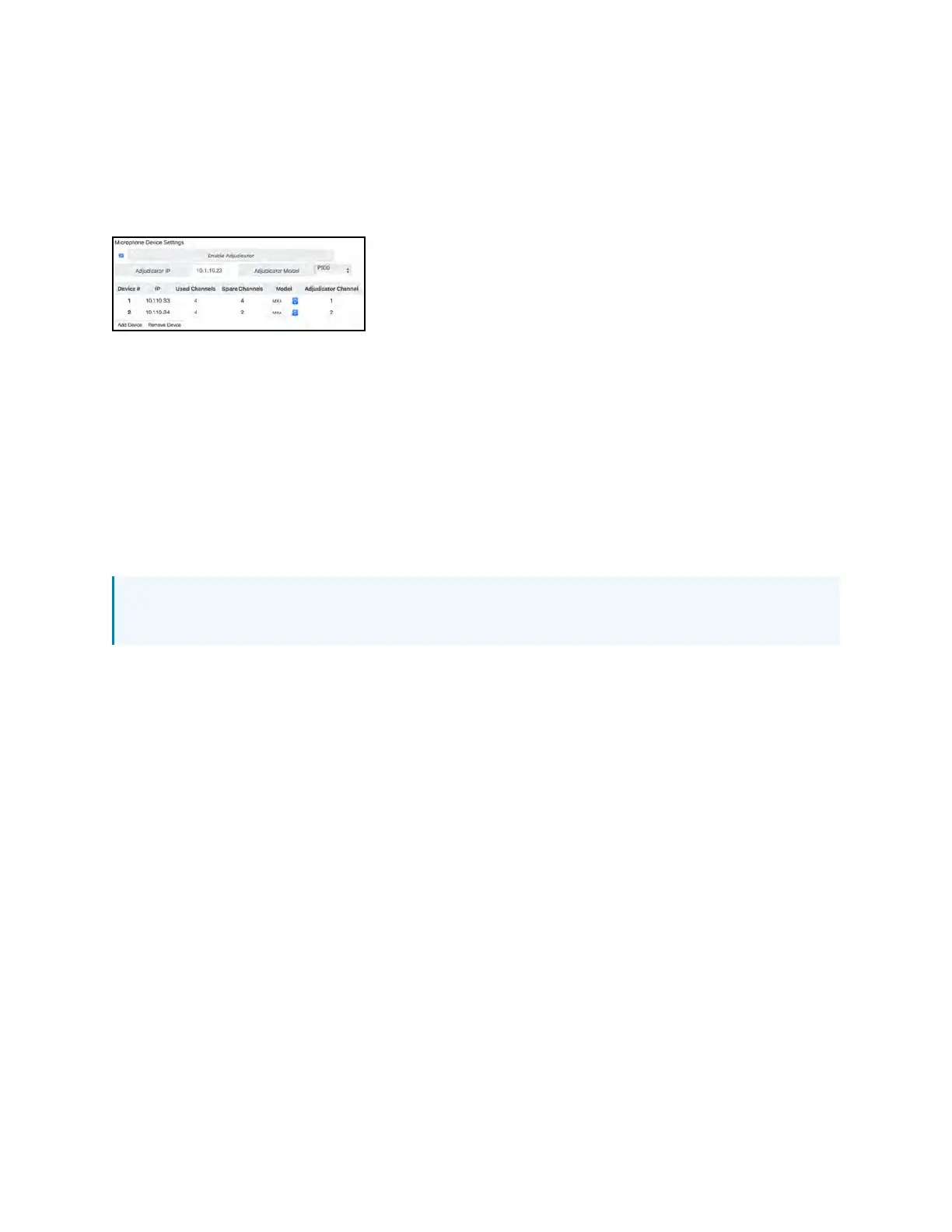

Microphone Device Settings Table - Enable Adjudicator
Select the device model from the Adjudicator Model drop-down menu:
l
Intellimix Room
l
P300
l
SCM-820
l
Q-SYS
l
Tesira
Turning on an adjudicator will add a fifth Adjudicator Channel column to the table. Enter the
channel number from which the automix from each device is routed to the adjudicator.
NOTE:If using an adjudicator as a device in the device list, enter the Used Channels as
normal, and set the Spare Channels and Adjudicator Channel values to 0.
