Crestron TSS-770 User Manual

Product Manual — Doc. 8745C TSS-770 and TSS-1070 • 21
Wi-Fi Test
Tap Wi-FiTest on the Diagnostics & Advanced screen to display the Wi-FiDiagnostics screen.

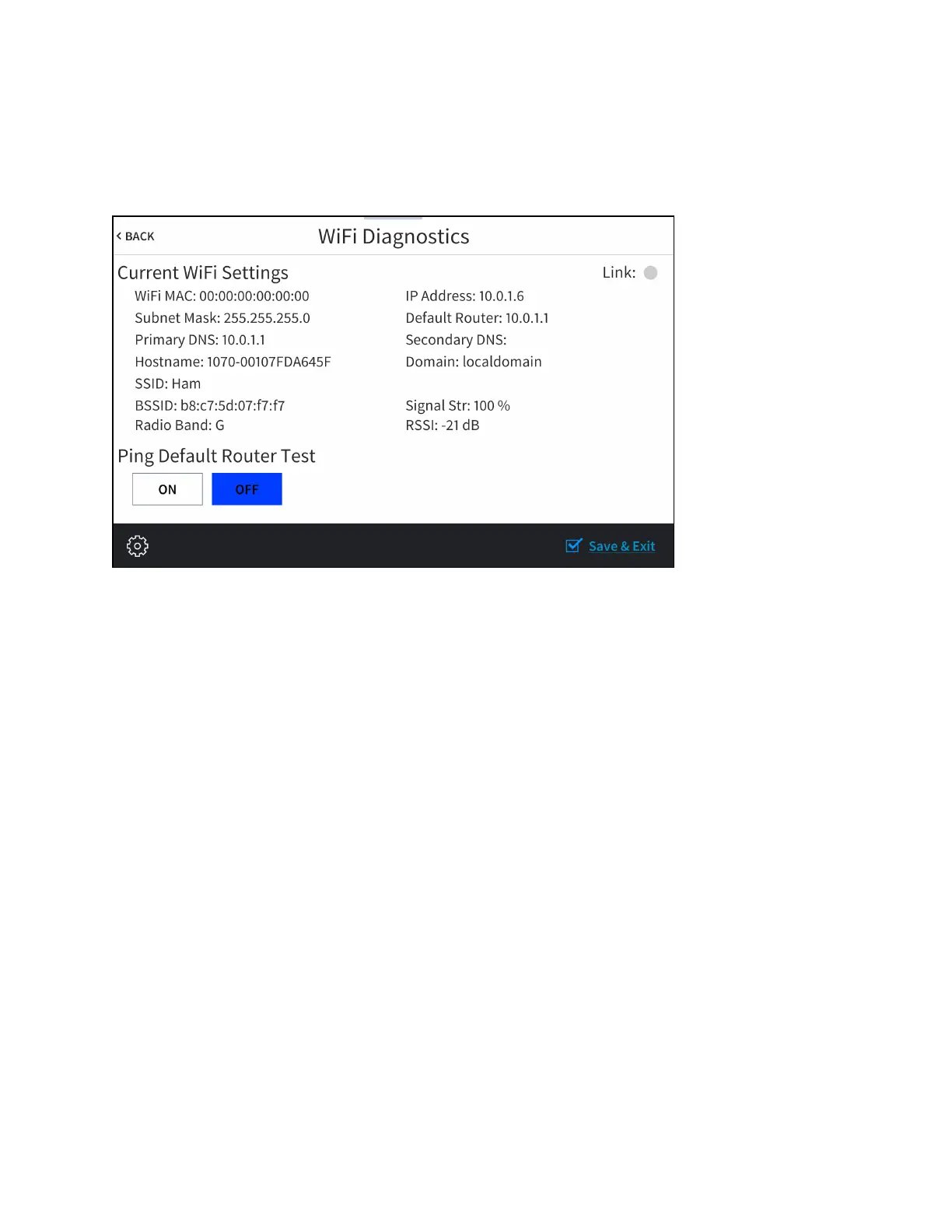

Wi-Fi Diagnostics Screen
Use the Wi-Fi Diagnostics screen to view and test the Wi-Fi network connection. The Ethernet
Diagnostics screen displays the Wi-Fi network MAC and IP addresses, subnet mask address,
default router address, primary and secondary DNS addresses, hostname, and domain name. A
Link indicator is provided to indicate the status of the Wi-Fi network connection. (Green
indicates that the Wi-Fi network connection is active.)
The Wi-Fi Diagnostics screen also provides controls to test the connection to the default router.
Tap On to begin the test and Off to end the test.
During the router test, the touch screen pings the default router. If the router is communicating
with the touch screen, connection data is displayed below the ping test controls within five
seconds. The connection data updates after every successive ping.
Tap < BACK to return to the Diagnostics & Advanced screen.

Crestron TSS-770 Specifications

General

Network Connectivity	10/100 Mbps Ethernet
Operating Temperature	32° to 104° F (0° to 40° C)
PoE	IEEE 802.3af Class 3 (12.95 W)
Memory	2 GB RAM
Display Size	7 in (178 mm) diagonal
Resolution	1024 x 600 pixels
Touch Technology	Projected capacitive
Power	PoE Class 3 (12.95 W)
Ethernet	10/100 Mbps
Mounting	Surface mount
Processor	Quad Core
