Local Configuration
Refer to the following sections for information about configuring the device locally using its
setup screens.
Ethernet Setup
Tap Ethernet Setup on the Setup screen to display the Ethernet Setup screen.

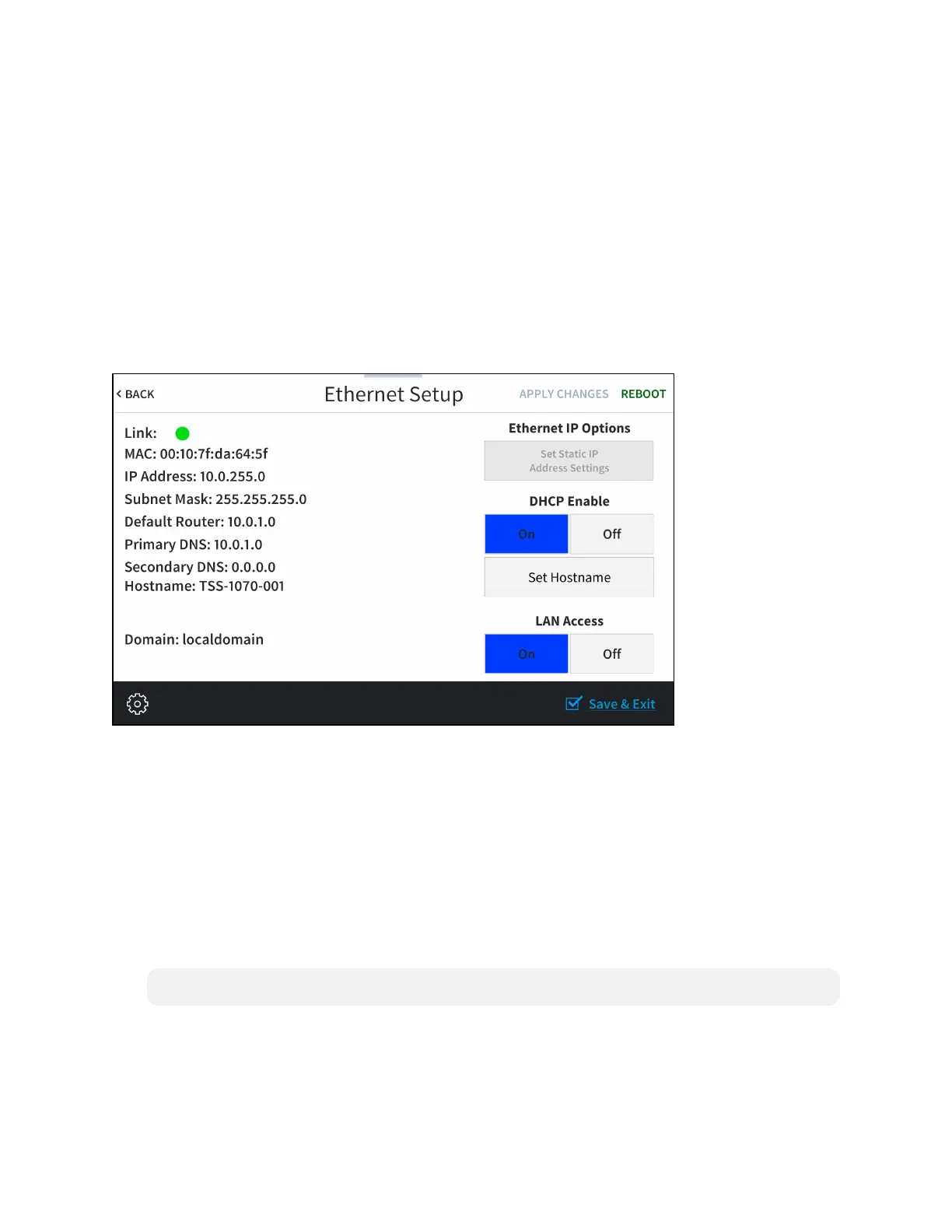

Ethernet SetupScreen
Use the Ethernet Setup screen to view the touch screen MAC and IP addresses, subnet mask
address, default router address, primary and secondary DNS addresses, hostname, and domain.
A Link indicator is provided to indicate the status of the Ethernet connection. (Green indicates
that the Ethernet connection is active.)
The following buttons are provided for configuring Ethernet settings:
l Tap On or Off under LAN Access to turn the Ethernet adapter on or off. If LAN Access is
set to Off, Ethernet will not function and a Wi-Fi connection can be established.
l Tap On or Off under DHCP Enable to turn DHCP (dynamic host configuration protocol) on
or off.
NOTE: DHCP is turned on by default.
l If DHCP is turned off, tap Set Static IP Address Settings to enter static IP addresses
manually.
l Tap Set Hostname to enter a new touch screen hostname using an on-screen keyboard.

Crestron TSS-770 Specifications

General

Network Connectivity	10/100 Mbps Ethernet
Operating Temperature	32° to 104° F (0° to 40° C)
PoE	IEEE 802.3af Class 3 (12.95 W)
Memory	2 GB RAM
Display Size	7 in (178 mm) diagonal
Resolution	1024 x 600 pixels
Touch Technology	Projected capacitive
Power	PoE Class 3 (12.95 W)
Ethernet	10/100 Mbps
Mounting	Surface mount
Processor	Quad Core
