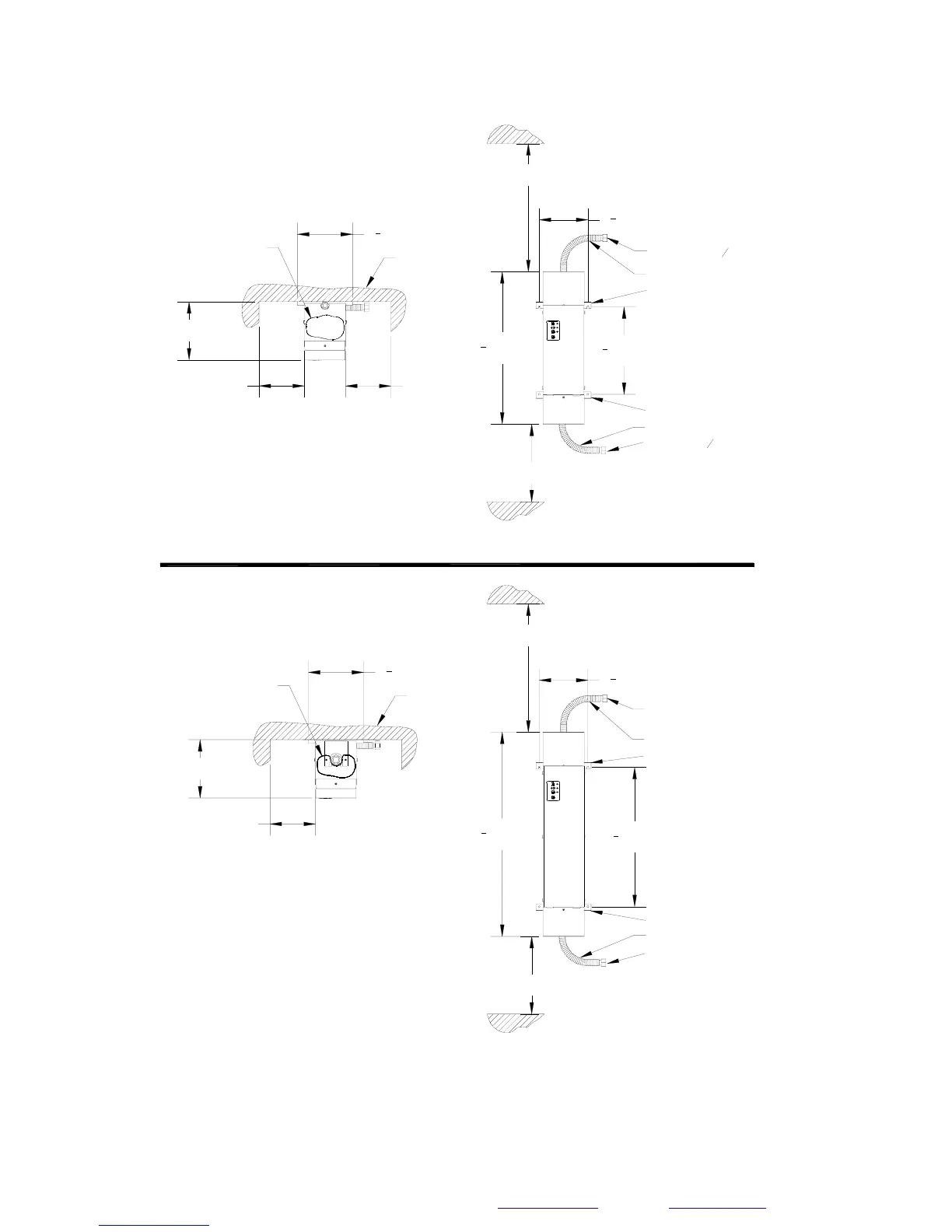

Crossfire Hallett 13 - Front View

10
Released on 10/31/05 - X800058A UV Pure Technologies Inc. © 2005
No part of this document may be photocopied, reproduced, transmitted, or translated to another language without the
prior written consent of UV Pure Technologies Inc.
For additional info call 1-888-407-9997 or email info@uvpure.com
or visit www.uvpure.com
14" [36cm]
12" [30.5cm] MIN.
WATER OUT,
3
4
" FIP
WATER IN,
3
4
" FIP
REQUIRED CLEARANCE
FOR LAMP REPLACEMENT
RECOMMENDED CLEARANCE
FRONT VIEW
TOP VIEW
FLEXIBLE TUBING
FLEXIBLE TUBING
13
1
2
" [34.3cm]
7
1
2
" [19.1cm]
LEAVE THIS AREA
CLEAR OF PIPES FOR
LAMP REPLACEMENT
7" [17.8cm] MIN.
7" [17.8cm]
MIN.
WALL
8
1
2
" [21.6cm]
9" [22.9cm]
23
1
2
" [59.7cm]
Hallett 13
WALL BRACKET
WALL BRACKET
31
1
2
" [80.0cm]
21
1
2
" [54.6cm]
12" [30.5cm] MIN.
TOP VIEW
RECOMMENDED CLEARANCE
FRONT VIEW
WALL BRACKET
WATER IN
1" FIP
FLEXIBLE TUBING
9" [22.9cm]
7" [17.8cm] MIN.
LEAVE THIS AREA
CLEAR OF PIPES FOR
LAMP REPLACEMENT
21" [53.3cm]
REQUIRED CLEARANCE
FOR LAMP REPLACEMENT
8
1
2
" [21.6cm]
WALL
7
1
2
" [19.1cm]
WALL BRACKET
WATER OUT
1" FIP
FLEXIBLE TUBING
Hallett 30
Figure 1A
