Crow PowerWave-4 - Inputs; Zone Inputs

Page 4
INPUTS
The PW-4 has 5 separate programmable monitored analogue inputs,
4 x Programmable, multi-state detection inputs
1 x Programmable tamper input ( with optional Key-switch functions)
Each input must be terminated with short circuit or the appropriate value of end-of-line resistors, even if the input
is unused.
ZONE INPUTS - Each of the 4 zone inputs can be assigned one of the following configuration options;
Type 1 Short circuit input No-End-of-Line (EOL).
Type 2 End-of-Line 2k2 (EOL) with no tamper.
Type 3 End-of-Line (EOL) No Tamper.
Type 4 End-of-Line (EOL) With open & short circuit Tamper.

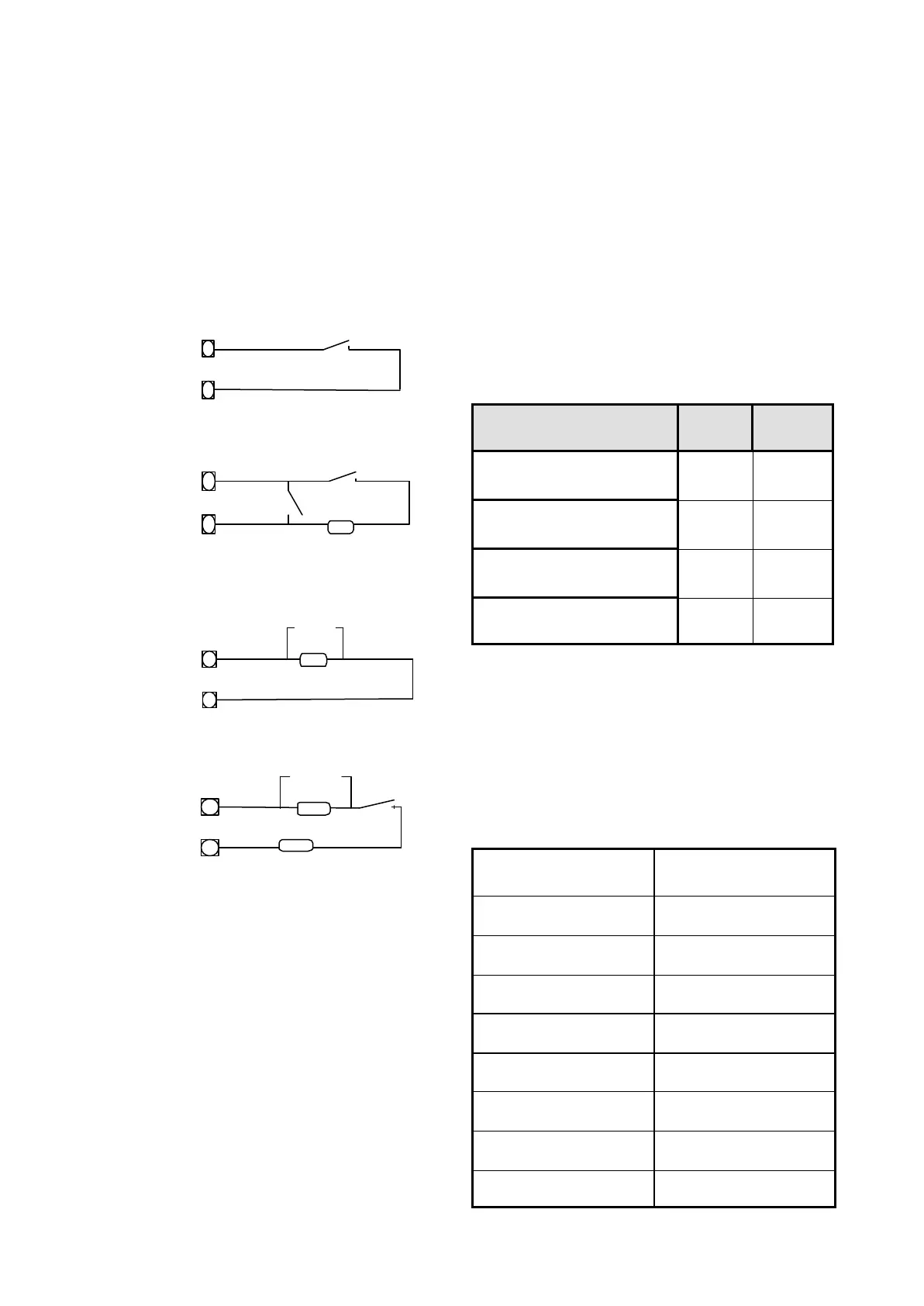

The following table shows end-of-line resistor
configurations.
The reference to LEDS in bold below relate to the
program option setting at address P130E.
Zone
Type
Zone
Resistor
Tamper
End-of-
Type 1
LEDS 1-4 off, 5-8 off
N/A
(Short
N/A
Type 2
LEDS 1-4 on, 5-8 off
2k2 -
Type 3
LEDS 1-4 off, 5-8 on
4k7 N/A
Type 4
LEDS 1-4 on, 5-8 on
4k7 2k2
2k2
Alarm Contact
n/c or n/o
4k7
Tamper
Alarm Contact
n/c or n/o
4k7
LED at Addr. P130E Zone Relationship
LED #1 Zone 1 Short or EOL
LED #2 Zone 2 Short or EOL
LED #3 Zone 3 Short or EOL
LED #4 Zone 4 Short or EOL
LED #5 Zone 1 TAMPER
LED #6 Zone 2 TAMPER
LED #7 Zone 3 TAMPER
LED #8 Zone 4 TAMPER
n/c
n/c
n/o
2k2
