Electrical wiring
VX 570 English V1.10 Page 23 of 44
10 Electrical wiring
10.1 Cable glands clamping range
For ensuring the tightness and strain relief, connector cables with the following diameters
must be used.
VX 570 Standard clamping range : Ø 5- 9mm

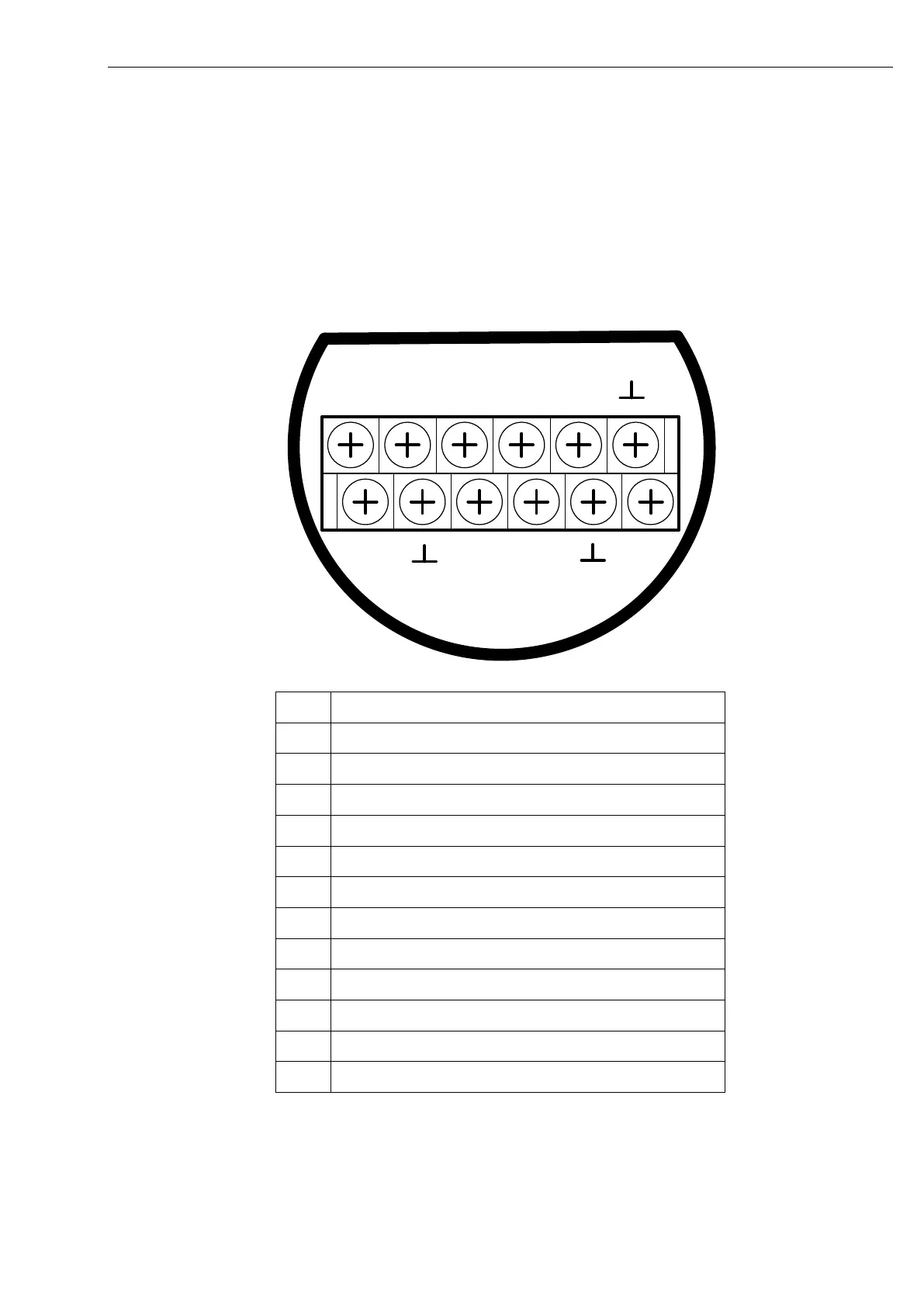

10.2 Connector pin assignment
V+ V- I1
A(+) B(-) I2 I3
13
5
7
9
11
12
10
8
6 4
2
Pin
Signal Description
1
I3+ Aktive
2
GND
3
GND
4
I1+ Aktive
5
I2+ Aktive
6
Not used
7
Modbus B (-)
8
Not used
9
GND
10
VB - (negative power supply GND)
11
Modbus A (+)
12
VB+ (positive power supply)
