Operation
VX 570 English V1.10 Seite 39 von 44
11.3.5 Settings Outputs 4..20mA

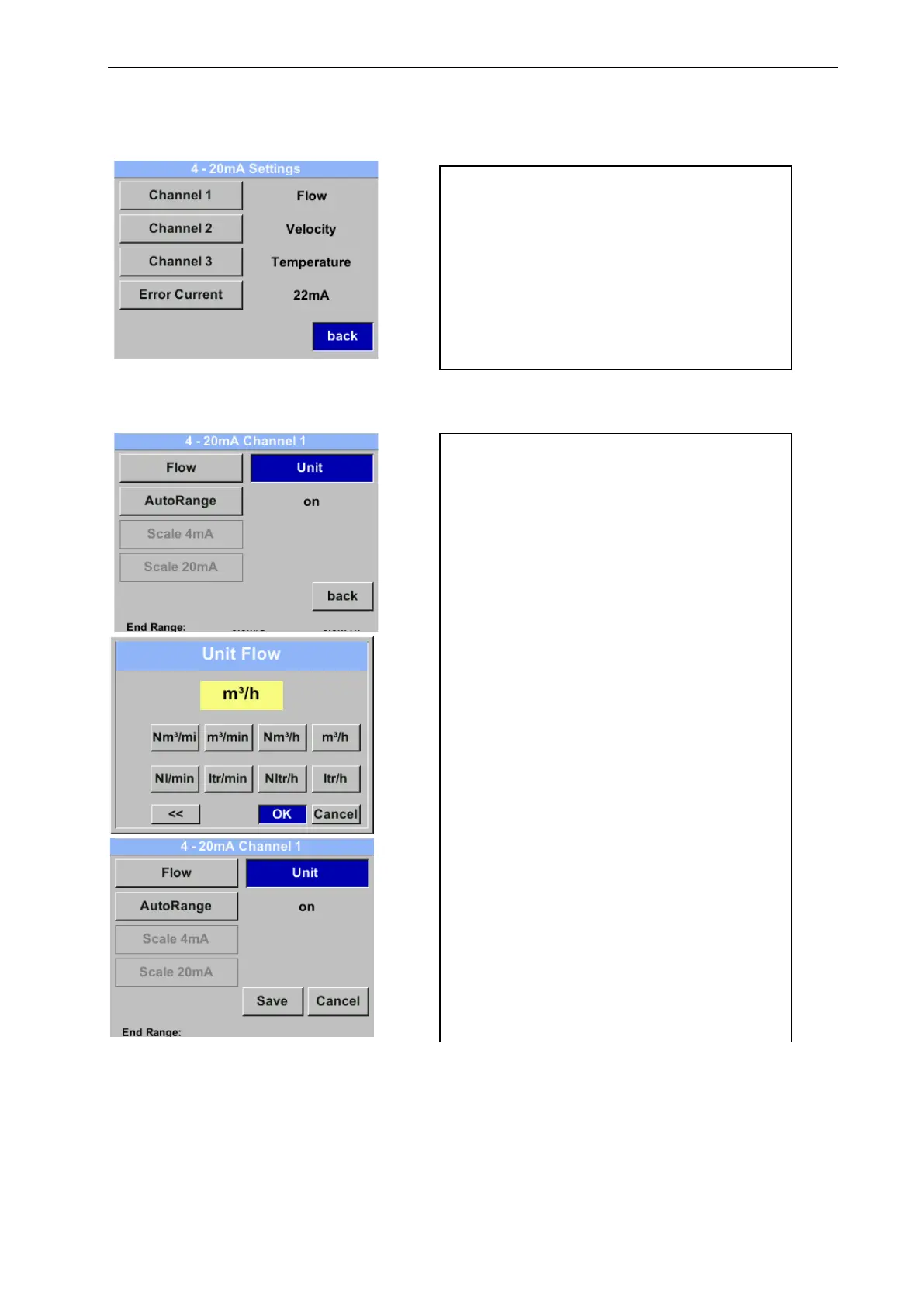

Settings 4-20mA
Settings 4-20mA
Channel 1
To make changes, first select an item with >
and confirm selection by pressing „OK“ .
The 4-20 mA Analogue output of the Sensor
VX 570 can be individually adjusted.
It is possible to assign following values
„Temperature, VelocityFlow and
Pressure to the channel.
To make changes, select the menu item with
the > key and then select the corresponding
measured variable with the "OK" key or
deactivate the 4-20mA output with "free".
For the selected measurand, the corresponding
units can be selected under "Unit".
Select with key ">" and afterwards select with
key "OK" the corresponding measurand.
Here example for flow rate, procedure for flow
velocity, temperature and pressure is analog.
Accept the entries by pressing "Save", discard
the changes by pressing "Cancel".
Change to the settings menu with "Back".
0.0 m³/h
1098.9 m³/h
169,8 m/s 1098.9 m³/h
0.0 m³/h
1098.9 m³/h
169,8 m/s 1098.9 m³/h
