Electrical wiring
VX 570 English V1.10 Seite 24 von 44

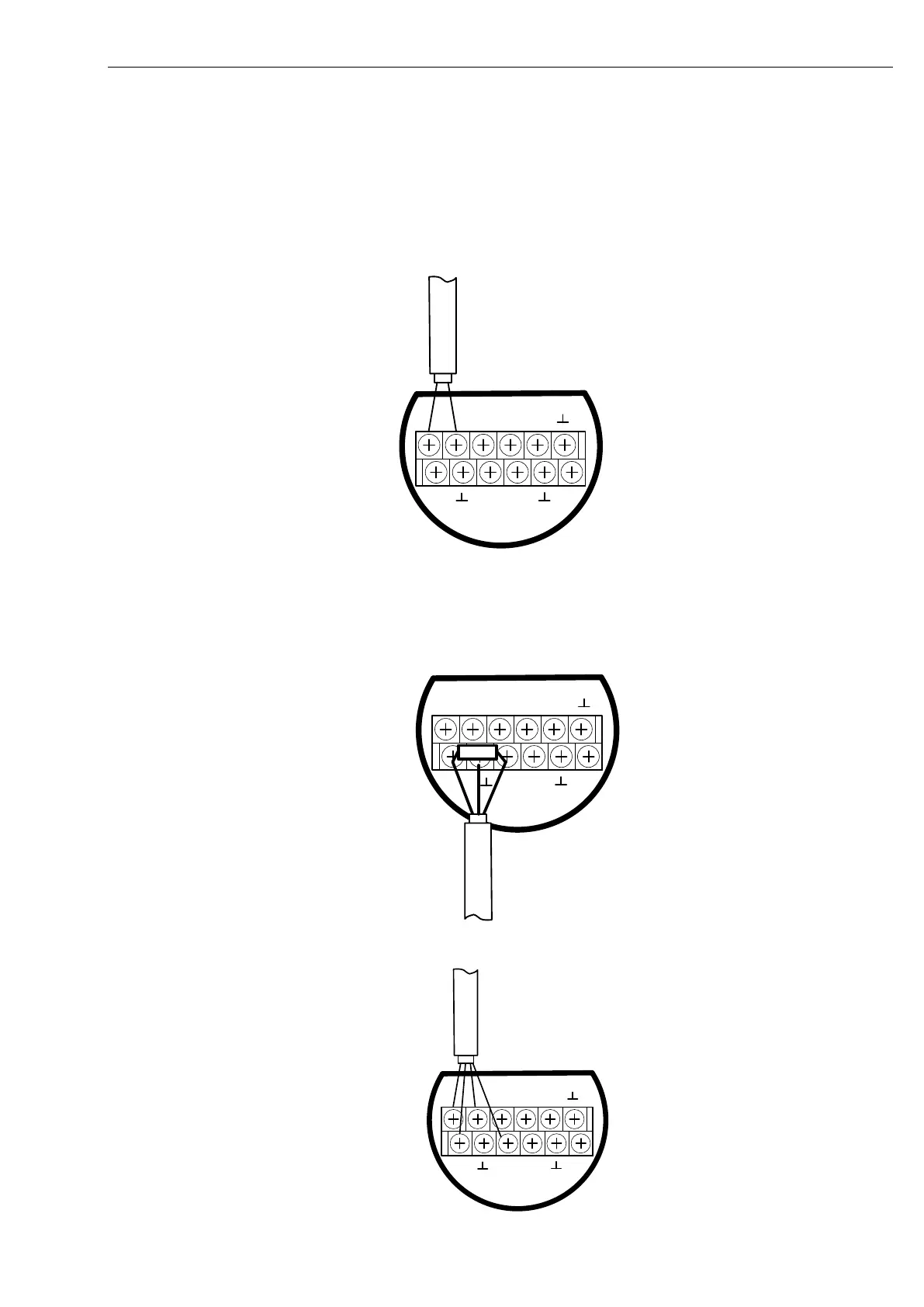

10.3 Wiring
10.3.1 General
Wiring to be done in strain less state only.
Length of cable skinning to be minimized
Not used cable entries must be closed with end caps
Use of cables with cross section of >= 0.25mm²
10.3.2 Power supply
V+ V- I1
A(+) B(-) I2 I3
13
5
7
9
11
12
10
8
6 4
2
10.3.3 Modbus RTU:
If the sensor placed at the end of the Modbus system a termination is required.
Therefore, the enclosed 120R resistor is to be connected at Pin 7 and Pin11.
V+ V-
A(+) B(-) I2 I3
13
5
7
9
11
12
10
8
6 4
2
120R
I1
10.3.4 Service Software Interface
V+ V- I1
A(+) B(-) I2 I3
13
5
7
9
11
12
10
8
6 4
2
V+ braun/ brown
V- blau / blue
Modbus A (+) weiß/white
Modbus B(-) schwarz / black
