Appendix A. I/F Modules
81
May 2011

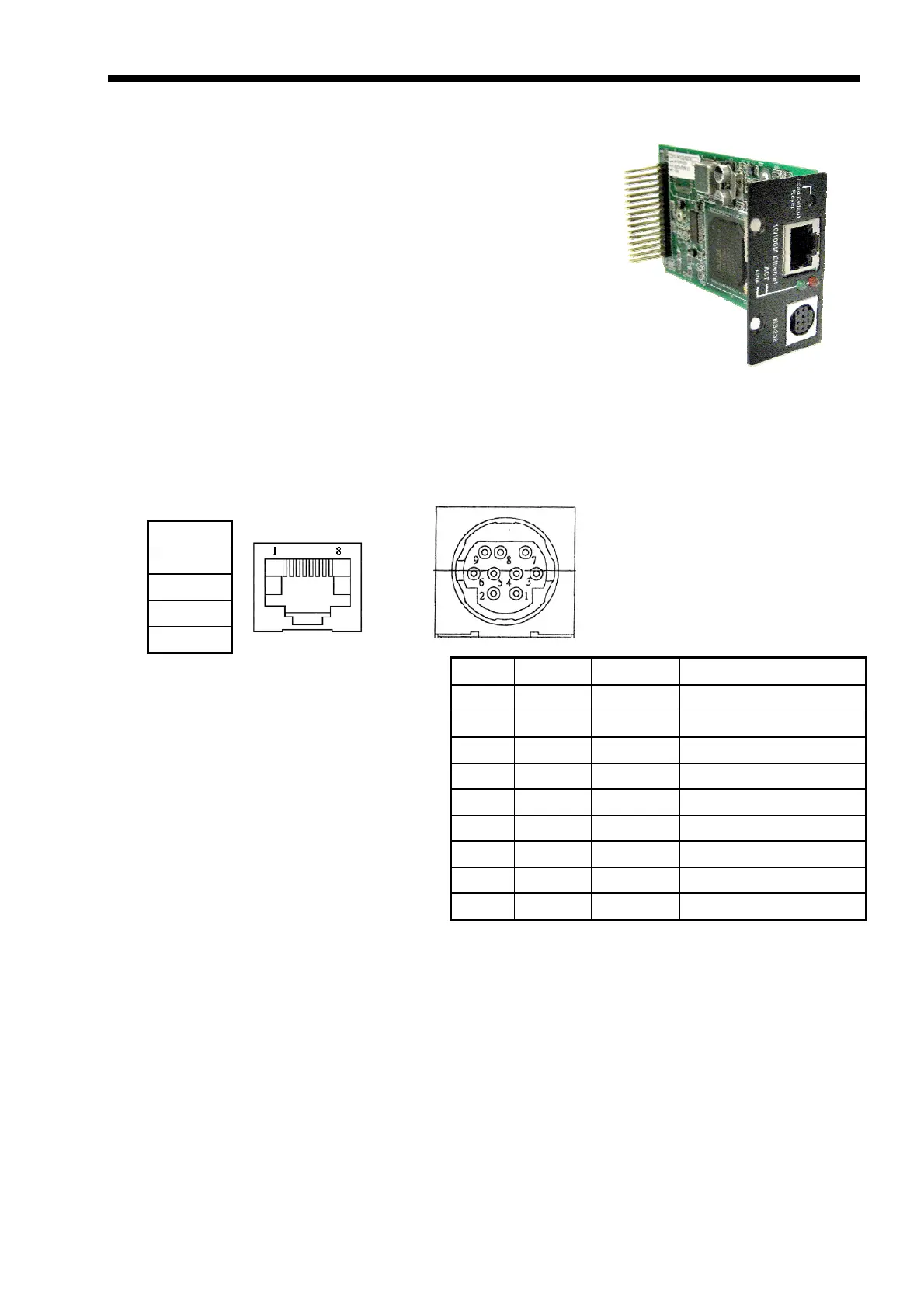

A.10 ET100R 10/100Base-TX Ethernet Router
When the ETU-01A is ordered with an ET100R Interface,
the unit is not only an access unit for E1, but also becomes a
high performance router for 10Base-T or 100Base-TX Ethernet
LAN connection. The ET100R utilizes standard pin out on one
RJ-45 connector, providing connection to Ethernet (10Base-T)
or Fast Ethernet (100Base-TX) networks over UTP (unshielded
twisted pair) cabling.
Configuration of the router is beyond the scope of this manual.
Please refer to the CDROM based instructions that are included
with the router module. The ET100R router module is
configured with the CLI Telnet or Web based GUI. The user
manual and quick start guide are included on the CDROM. Alternately the router may be
configured via the RS-232 console port. A special cable must be used to connect to the modules
DIN connector. Pinouts are provided below for reference.
MDI
1. Tx +
2. Tx -
3. Rx +
6. Rx -
Specifications
CPU
Hi-Perf. 32 bit ARM 9 RISC CPU
Network Protocols
TCP/IP, DHCP, ARP, PPP, HDLC,
Cisco HDLC, NAT (SNAT, DNAT)
Routing Protocols
Static, RIP I, RIP II
DTE Baud rate
Synchronous ≤ 2M bps
WAN Support
T1/E1
LAN Support
10Base-T / 100Base-TX, Auto
MDIX
Memory
32M bytes SDRAM
8M bytes Flash Memory
RS-232
DCE
Table C-9 Console port, RS-232, pin allocation
PIN Circuit Direction Description
1 NC
2 RD OUT Receive data
3 TD IN Transmit data
4 DTR IN Data Terminal Ready
5 GND Signal ground
6 DSR OUT Data Set Ready
7 RTS IN Request to Send
8 CTS OUT Clear to Send
9 NC
