Appendix C. Rack Mounting Option
All Standalone/Rack Series units have the option of adding standard EIA 19" rack mount
capability. Two rack mount options provide for either mounting a single unit (half space) in a rack
or for mounting two units in tandem (full space). In either situation, one standard rack unit space is
required. Each rack mount kit provides all the necessary hardware for a complete installation.

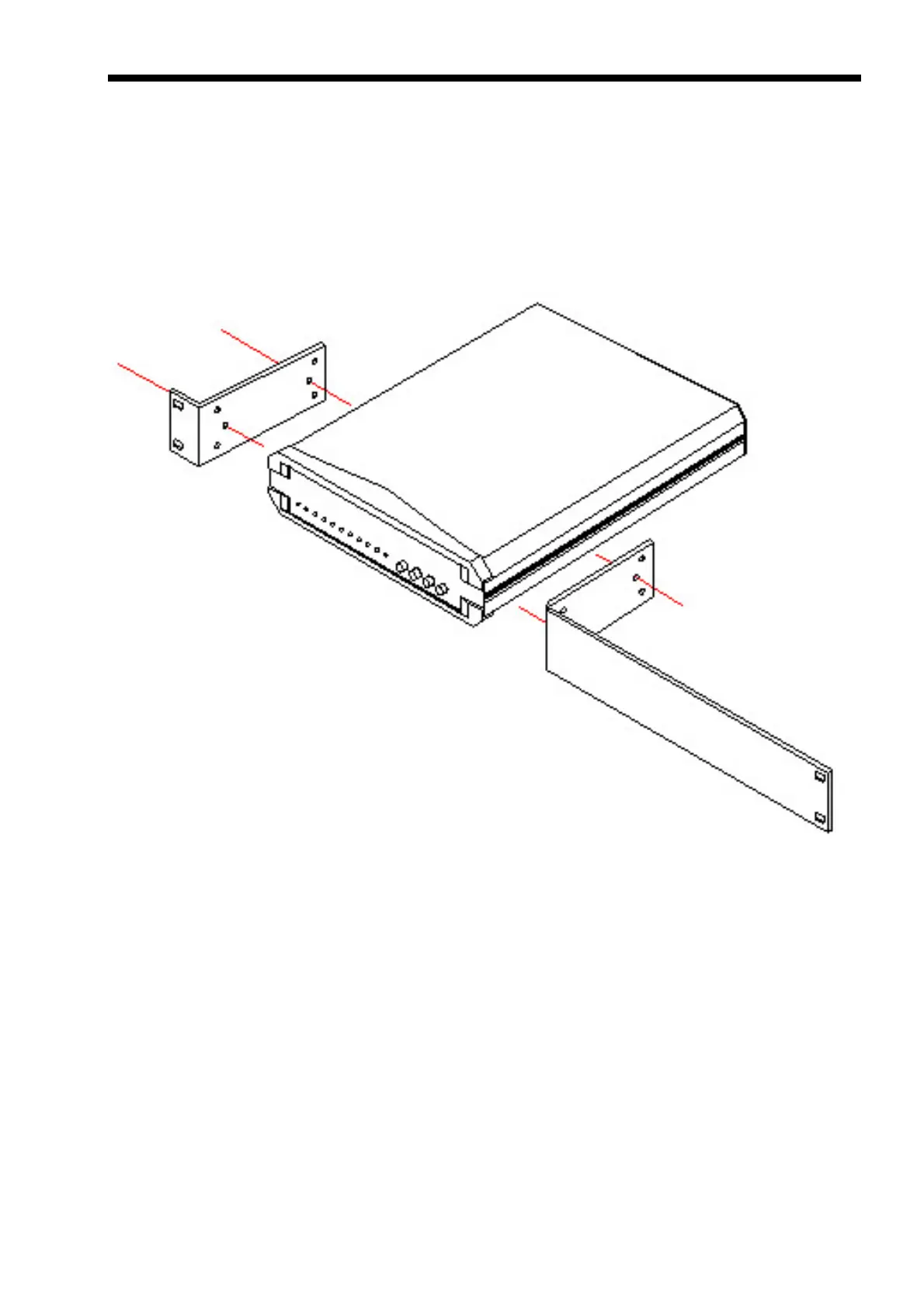

Figure C-1: Rack Mount Installation, ETU01-SS.
In single unit installations, the unit may be placed in the left or right side position simply by
reversing the rack mounting brackets. The kit includes, one (1) short and one (1) long rack adapter,
four (4) 3x8mm self-tapping screws, and four (4) #12-24x0.5" screws.
