Appendix C: Rack Mounting Option
86
May 2011
In order to save rack mount space, units may be mounted in tandem. Please refer to the
following drawing examples for this application.

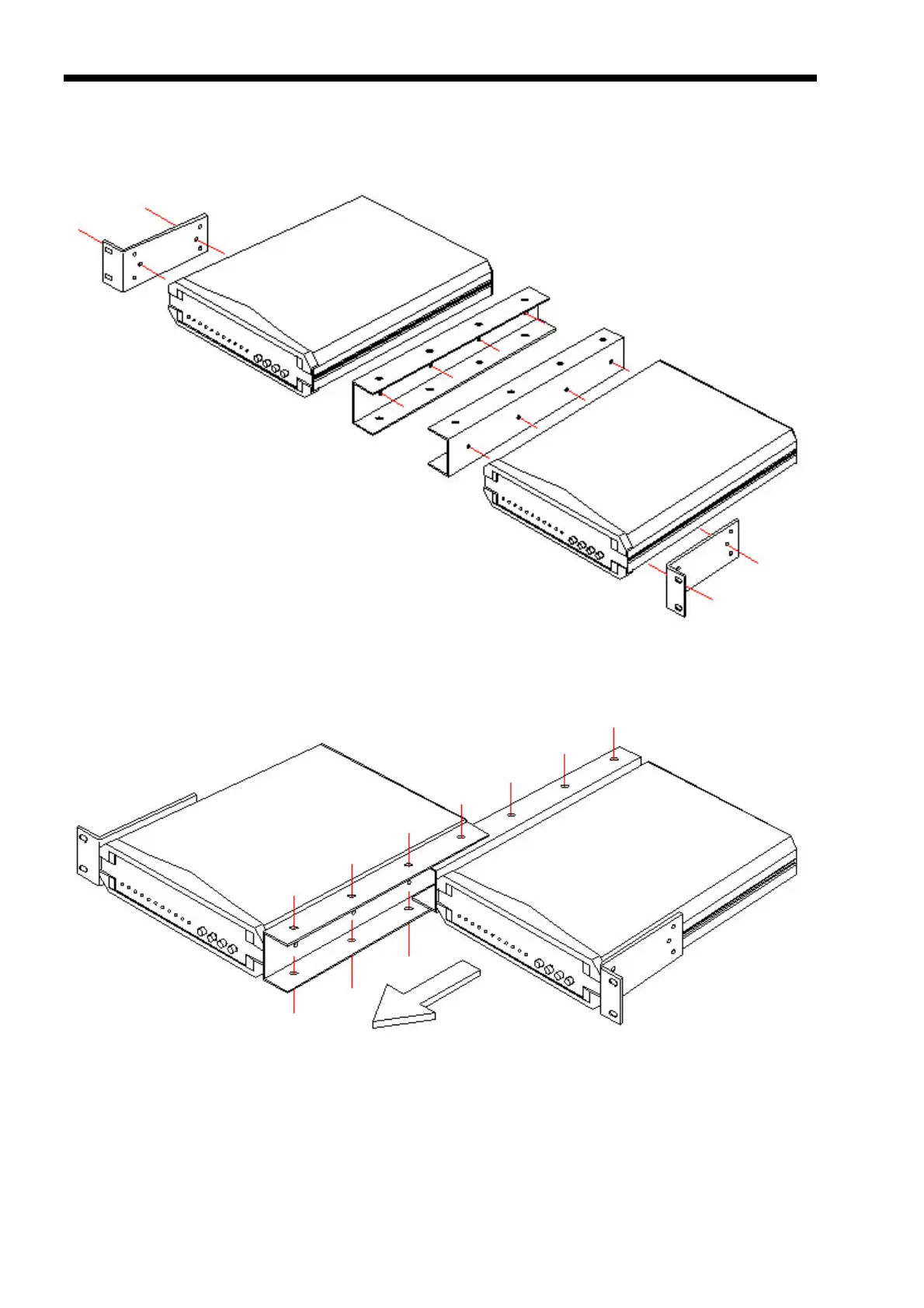

Figure C-2: Tandem Units Mounting (Exploded)
Figure C-3: Tandem Units Mounting Detail
The tandem kit includes two (2) rack mount adapters, one (1) each of inner and outer central
mounting adapters, twenty (20) 3x8mm self-tapping screws, and four (4) #12-24x0.5" screws.
