STEERING-IVT
104
7. Take the bolt all the way out.
NOTE: The axle should fall out at this point.
8. Install the axle by following the previous steps in
reverse order.
9. Install the axle by following the previous steps in
reverse order.
NOTE: Align the timing marks when installing
the outboard steering gear. See Figure 6B.81.
10. Test drive the tractor in a safe area before
returning it to service.
Drag links
To remove/replace a drag link:
1. Remove the steering gear covers.
2. Remove and discard the nut holding the drag
link to the inboard steering gear using two 9/16”
wrenches (one of them should be a slim-line
wrench). See Figure 6B.82.
3. Remove the nut and bolt that secures the drag
link to the steering arm. See Figure 6B.83.

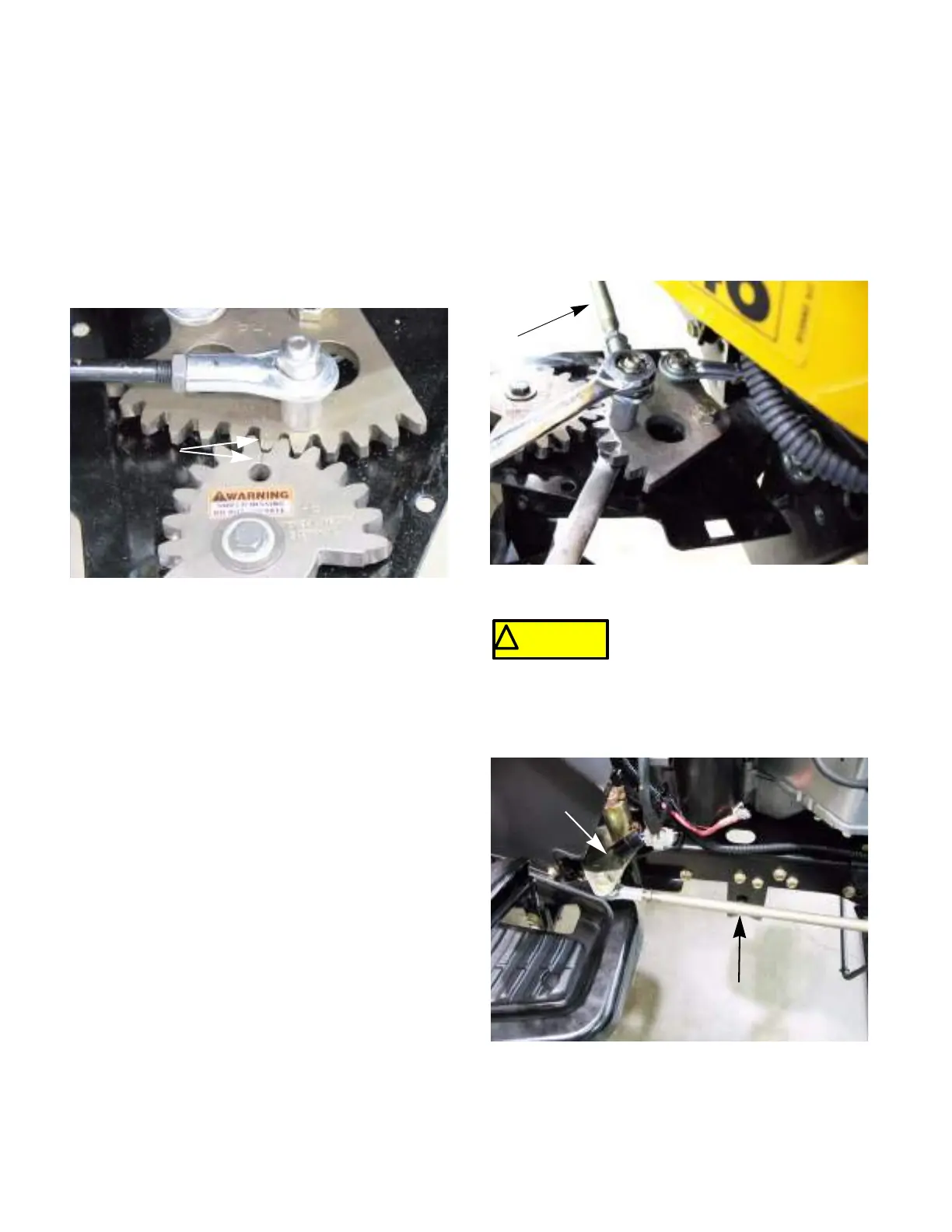

Figure 6B.81
Timing marks
Figure 6B.82
Drag link
! CAUTION! CAUTION
The nuts used on the drag links and
the tie rod are single use only. Do
not try to reuse them by applying a
thread locking compound. Use new nuts every time.
Figure 6B.83
Drag link
Steering arm
