ENGINE RELATED PARTS
3
This chapter will cover the engine accessories that
are manufactured by Cub Cadet.
IMPORTANT: The engine is manufactured by
Kohler. Refer to the Kohler manual for engine
specific service information.
Muffler
Remove the muffler by following these steps:
1. Remove the hood and bumper by following the
steps described in Chapter 4: Body/Chassis.
2. Remove the two screws on each side that hold
the muffler guard bracket. See Figure 2.1.

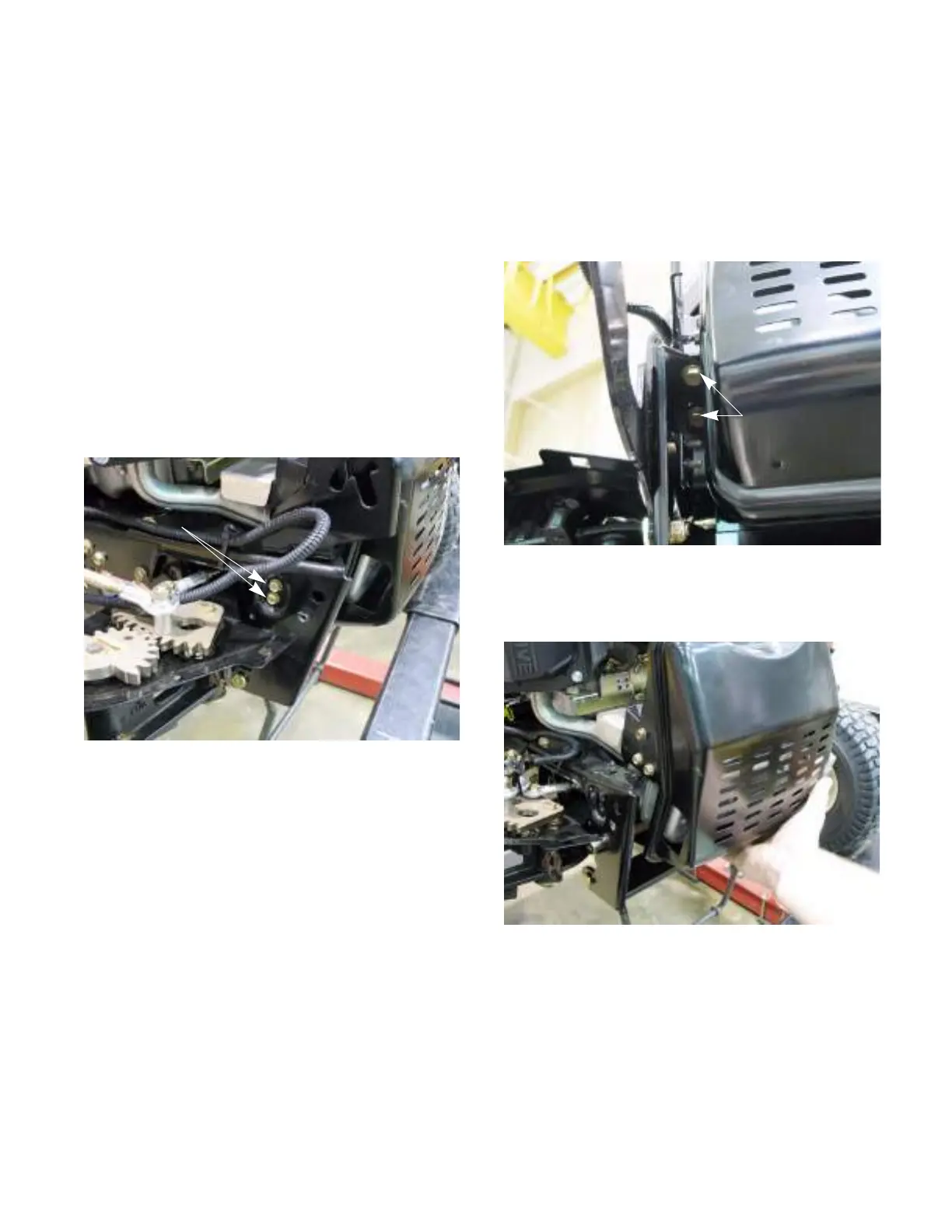

Figure 2.1
Remove these screws
3. Remove the hood pivot brackets by removing
the two screws that secure each one in place.
See Figure 2.2.
4. Pull the muffler cover and muffler out together.
See Figure 2.3.
NOTE: The muffler slides onto the exhaust
pipes. The heat of the exhaust makes the pipes
expand and forms a seal with the muffler. Do not
weld or place a sealer between the muffler and
exhaust pipes.
Figure 2.2
Remove these
screws
Figure 2.3
Pull muffler foreword
CHAPTER 2: ENGINE RELATED PARTS
