ENGINE RELATED PARTS
4
5. With the muffler on a work bench, remove the
four screws that fasten the muffler to the muffler
bracket. See Figure 2.4.
6. Remove the two screws that fasten the muffler
guard to the muffler bracket. See Figure 2.5.
7. The muffler, muffler cover and the muffler
bracket can now be separated. See Figure 2.6.
NOTE: The heat shield and muffler brackets can
be left together and handled as one part.
8. Install the muffler by following the above steps in
reverse order.

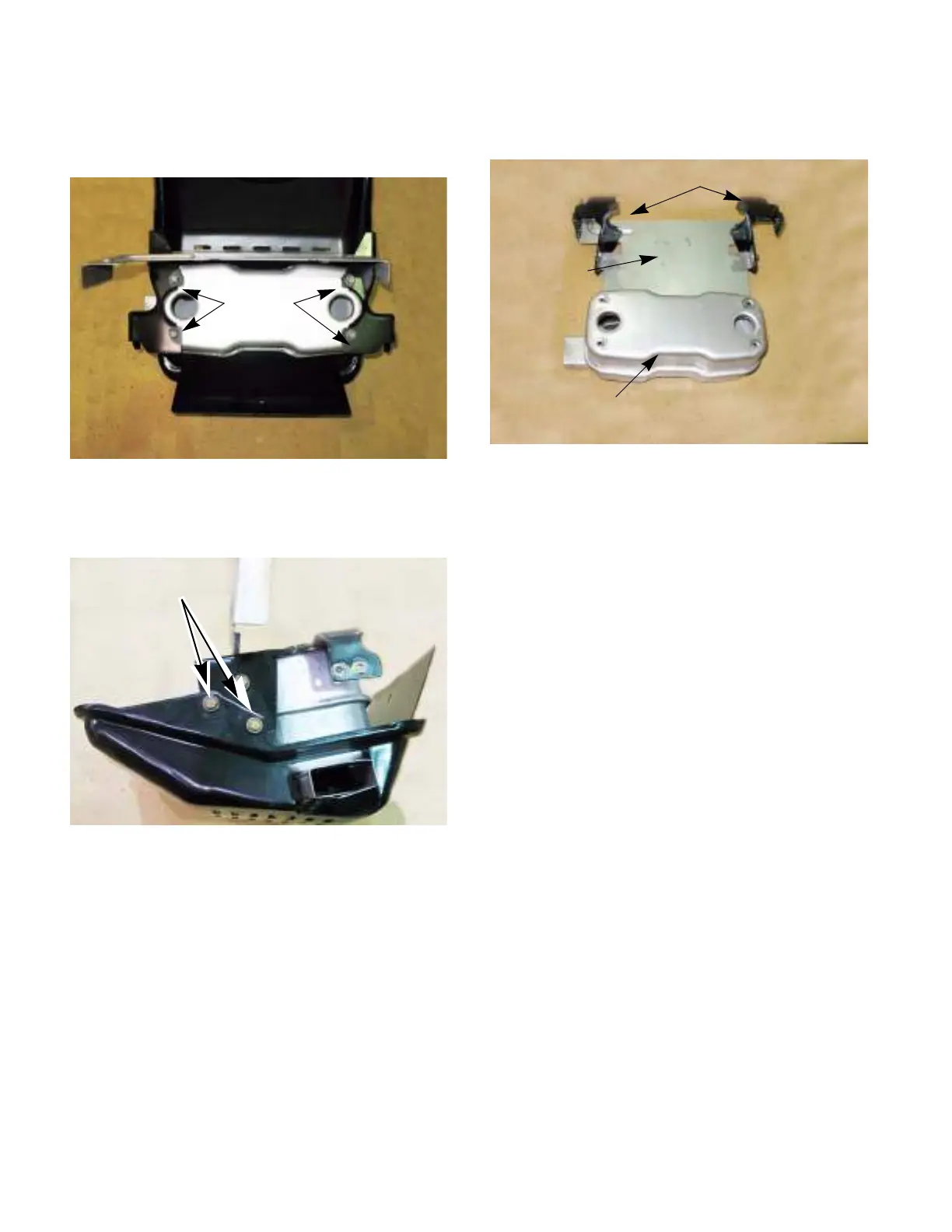

Figure 2.4
Remove these
screws
Figure 2.5
Remove these screws
Figure 2.6
Muffler
Muffler brackets
Heat shield
