DRIVE SYSTEM-IVT
32
The transmission output shafts drive a pair of drop
axles assemblies.
The IVT transmissions are NOT serviceable.
The drop axles and brakes are serviceable and will be
covered in later sections of this chapter.
NOTE: Currently replacement traction fluid is not
available for purchase.
Drive belt
The drive belt is the most common drive system
component that will need attention. To remove/replace
the drive belt:
1. Remove the deck as described in chapter 8:
Cutting Decks and Lift Shaft.
2. Lift and safely support the rear of the tractor.
3. Remove the three belt guides near the idler pul-
leys. See Figure 5B.11
Cub Cadet belts are design to fit
our equipment and are not stan-
dard lengths. Use of a non-OEM
belt may prevent the de-clutching mechanism from
working properly when the brakes are applied.
! CAUTION! CAUTION

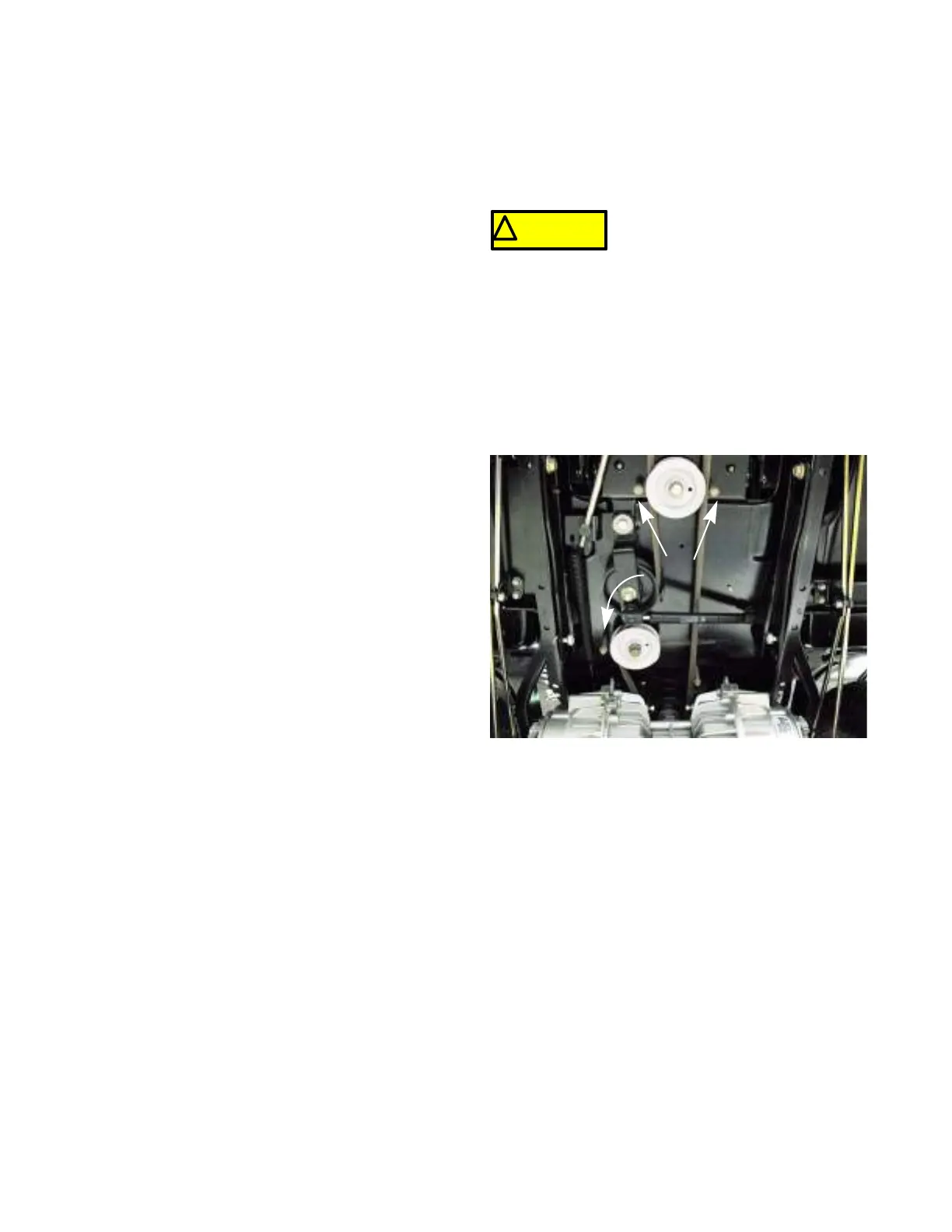

Figure 5B.11
Belt Guides
