20. Install the tie rod end using a new lock nut.
21. Apply high quality grease to the frame and the
inside of the pivot bar bracket, where the pivot
bar rides. See Figure 6B.95.
22. Install the pivot bar by following steps 3 - 7 in
reverse order.
NOTE: When installing the pivot bar, use a
clamp to line up the screw holes in the frame,
pivot bar and bumper mounting brackets.
See Figure 6B.96.
23. Slide the front wheels on and secure them with
new cotter pins.
NOTE: Make sure the washer is installed
between the wheel bearings and the cotter pin.
24. Push the hub caps on till they snap in place.
25. Take the tractor off of the jack stands.

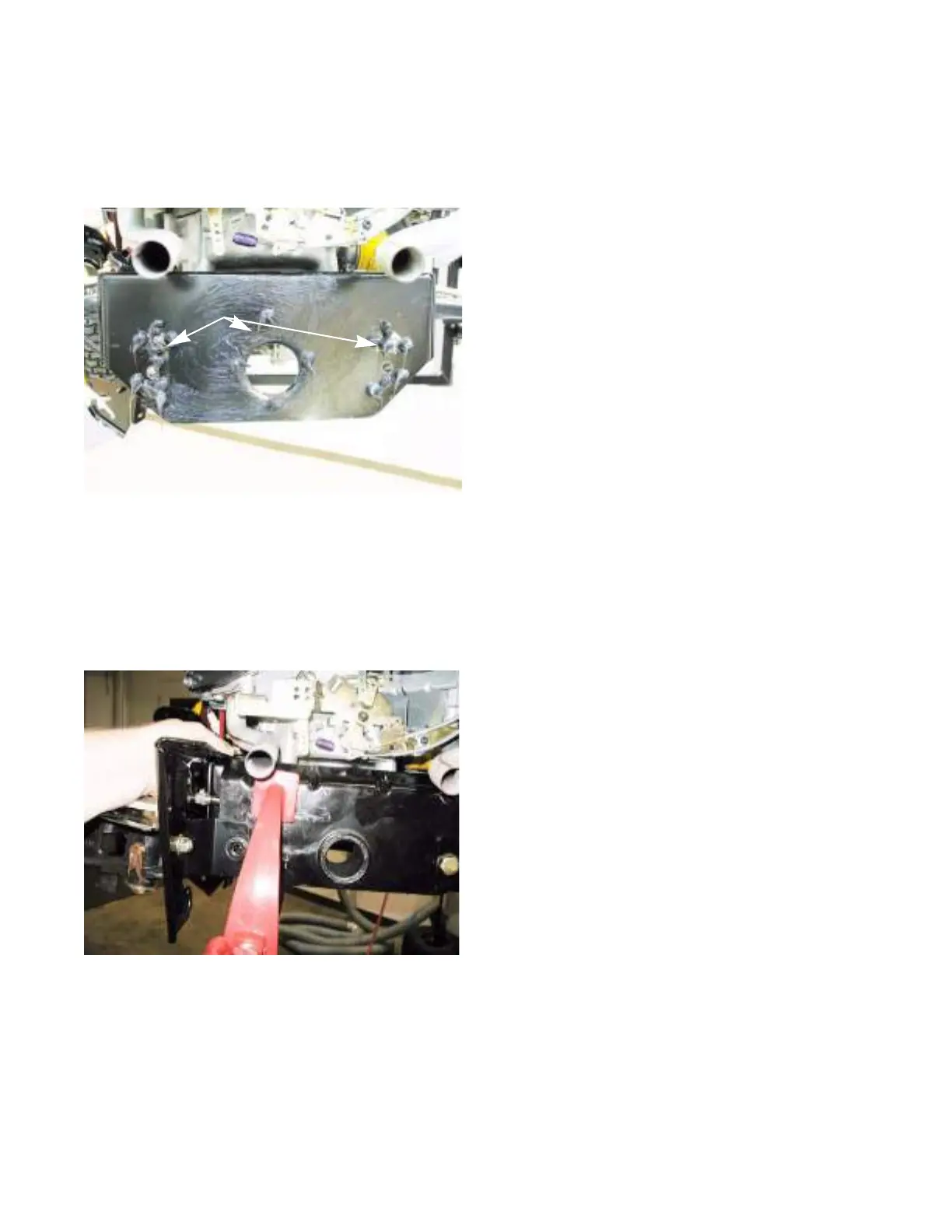

Figure 6B.95
Apply grease here
Figure 6B.96
26. Perform a neutral adjustment and wheel align-
ment as described in the begining of this chap-
ter.
27. Test drive the tractor in a safe area before
returning to service.
