BODY/CHASSIS
19

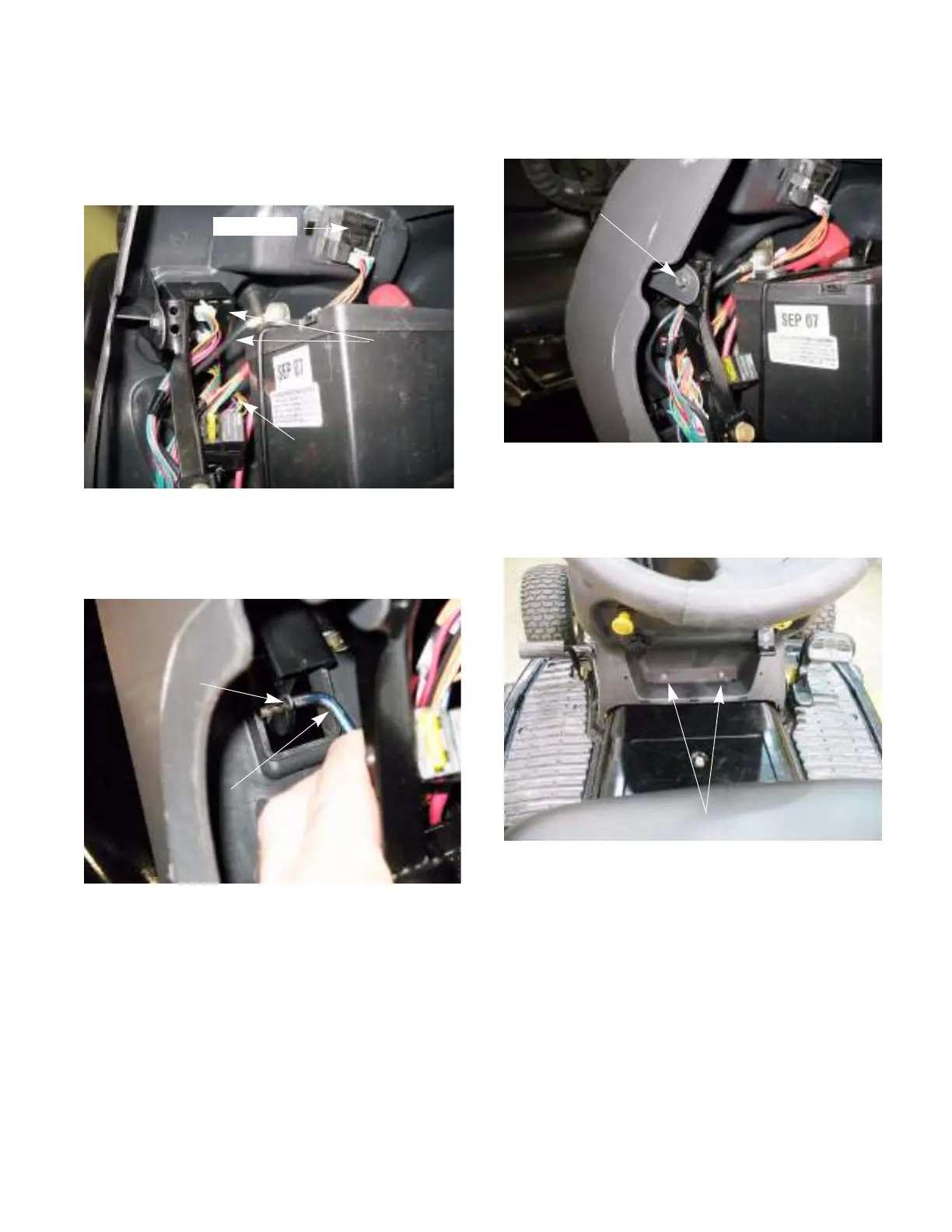

2. Remove the dash:
2a. Disconnect the key switch, module, PTO
switch and the hour meter.
See Figure 4.9.
2b. Disconnect the parking brake by removing
the hair pin clip and sliding the rod out of the
lever. See Figure 4.10.
Figure 4.9
Hour meter
Module and
key switch
PTO switch
Figure 4.10
Hair pin
clip
Rod
2c. Remove the two screws attaching the dash
to the dash support. See Figure 4.11.
2d. Remove the two screws in the cargo net
area, at the bottom of the dash.
See Figure 4.12.
NOTE: The cargo net was removed for a clearer
picture. Do not remove the net to remove the
dash.
NOTE: If removing the dash, disconnect the
throttle and choke cables at this point.
Figure 4.11
One on each side
Figure 4.12
Remove these screws
To Next Page
