4. Insert the pins of the gauge block tool P/N 753-
05437 into the cam slot. See Figure 6A.5.
5. Rest the tool flat against the frame.
See Figure 6A.6.

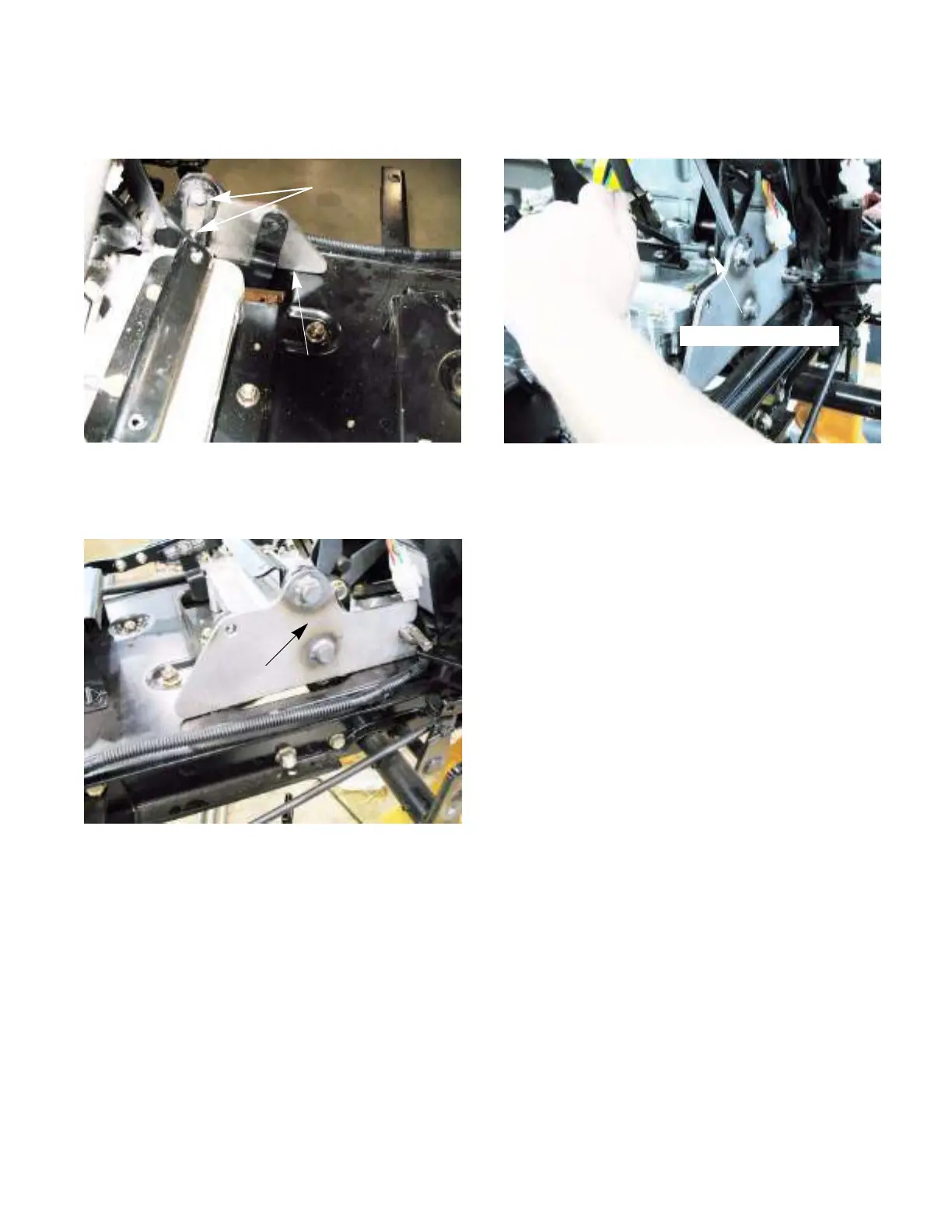

Figure 6A.5
Gauge block tool
Pins
Figure 6A.6
P/N 753-05437
6. Tighten the return to neutral bolt.
See Figure 6A.7.
7. Remove the gauge block.
8. Adjust the transmission for neutral and align the
front wheels as described in the following sec-
tions of this chapter.
9. Reassemble the tractor.
10. Test drive the tractor in a safe area before
returning it to service.
Figure 6A.7
Return to neutral bolt
