HOW TO USE THE PINHEAD®LOCKING SYSTEM
(if mounted)

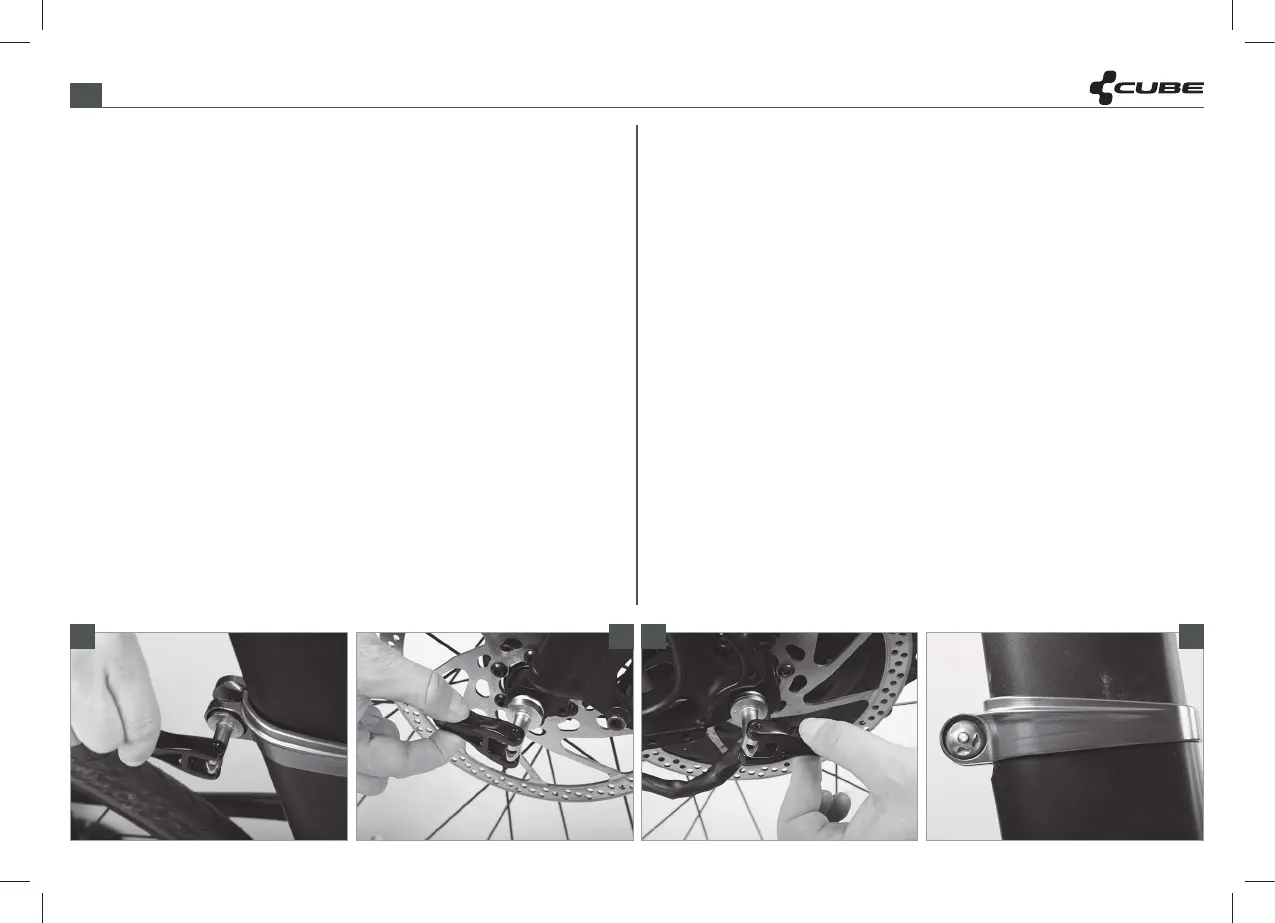

For easy adjusting or mounting and dismounting the rechargeable bat-
tery or the seat post
(a) and the wheels (b+c) of your CUBE EPO pedelec
are tted with a so-called Pinhead®-locking system. At the same time
the Pinhead®-locking system provides reliable theft protection for
these components. The Pinhead®-locking system should be handled
with greatest attention, as it directly aects your safety. Practise the
proper use of the Pinhead®-locking system to avoid any accidents.
g
Make sure the Pinhead®-locking system at the wheels is al-
ways on the side opposite the chain drive. Easy reach for
releasing and tightening is only given with the Pinhead®-
locking system on the side opposite the chain drive. At the
seat post the Pinhead®-locking system is on the right side.
g
With an insuciently closed Pinhead®-locking system the
wheel can come loose, thus creating a serious risk of ac-
cident!
g
Never ride a CUBE EPO pedelec without having checked
the wheel and the seat post fastenings before you set o.
Risk of accident!
How to Fasten Components Securely with a Pinhead®-Locking
System
Apply the Pinhead®-key and make sure the three small pins of the
key engage snugly with the recesses of the Pinhead®-locking system
(d) . Open the Pinhead®-locking system by turning the Pinhead®-key
anticlockwise.
Make sure the component to be fastened is in the accurate position.
For more information see chapters “Check the wheels” and “Adjust-
ing and using your bike” of your general CUBE handbook.
Thighten the Pinhead®-connection by turning the Pinhead® clock-
wise. To check the proper seat of the wheels lift the wheels, one after
the other, a few centimetres from the ground and hit the tyres from
above. If it is properly fastened, the wheel will remain firmly fixed in
the drop-outs of the frame or fork without producing any rattling.
g
Do not touch the rotor directly after having stopped – you
may burn your ngers! Always let the rotor cool down be-
fore opening the Pinhead®-locking system.
b da c
