CUES Inc., MPlus+ User Manual | CH905
www.cuesinc.com, | salesinfo@cuesinc.com
SET-UP & INSTALLATION
CONNECTING THE COILER TO THE PCU -
STANDARD OR XL VERSION

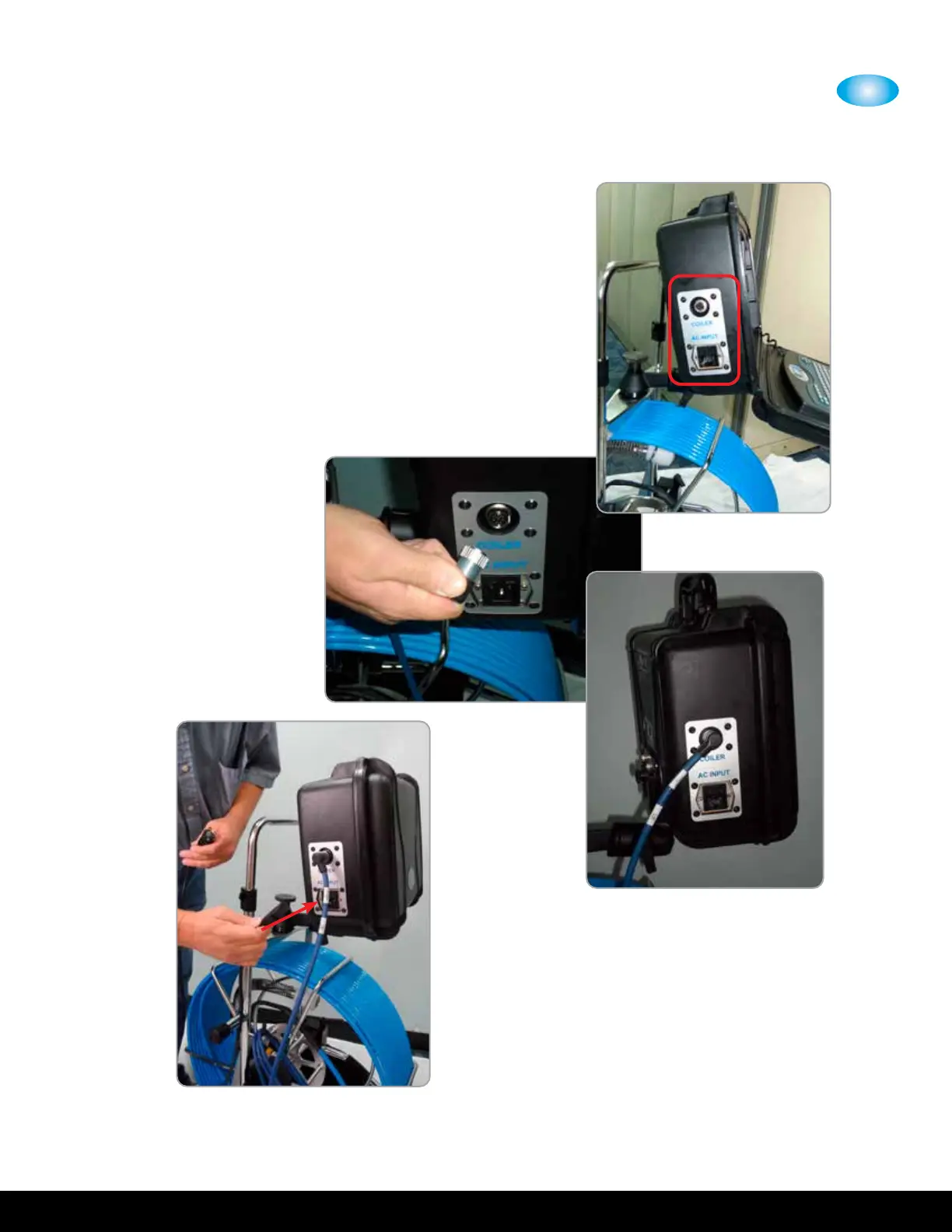

The coiler and AC connections are located on the
side of the control unit.
Attach the interconnect cable, P/N CH, from
the coiler to the control unit as shown.
Connect the AC power cord to the control
unit as shown.
Conrm the Battery “Charging” Yellow
Light or “Charged” Green Light indication
appears on control unit.
