OPERATING THE SYSTEM
Monitor:
A high-resolution, high-viewability LCD Monitor
is provided to view the inspection / observations.

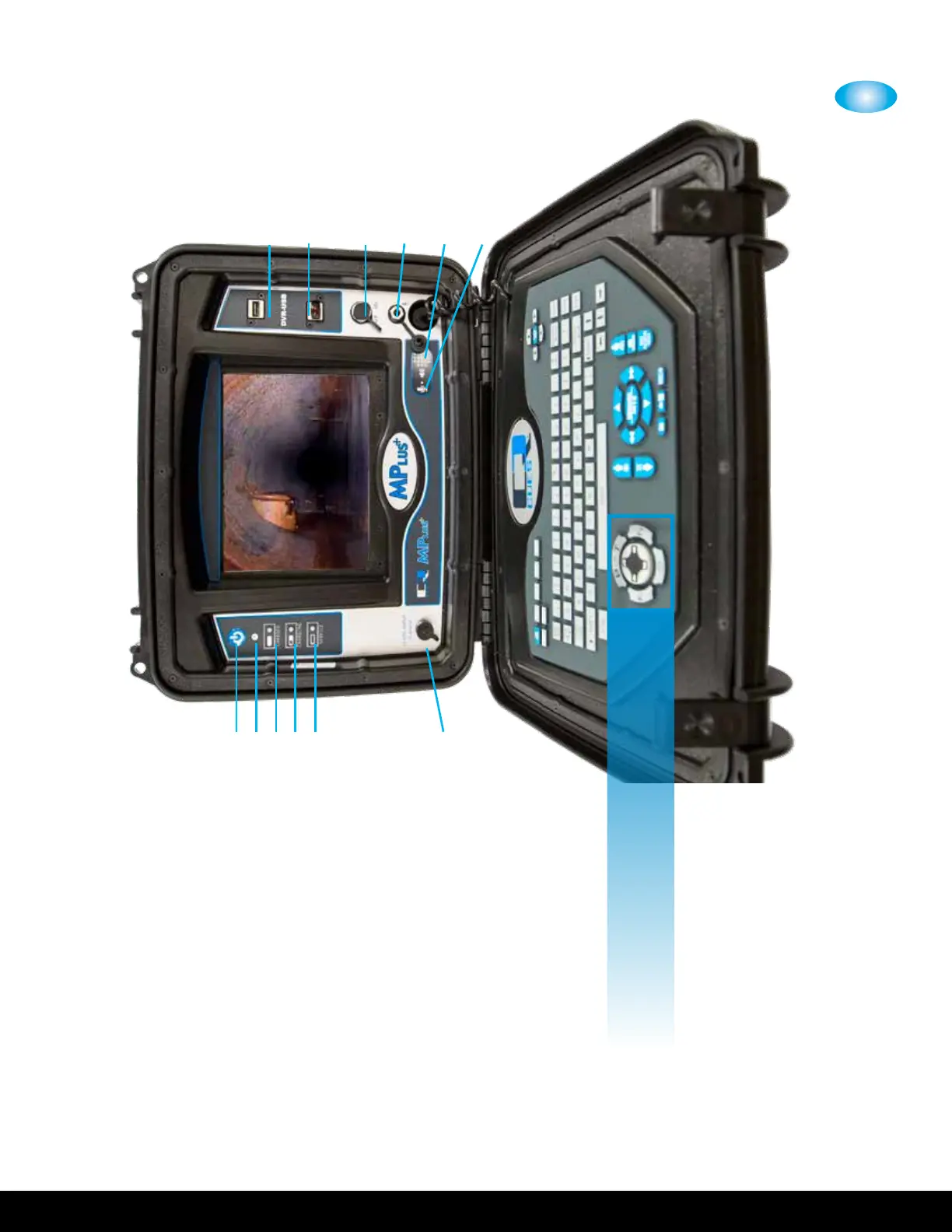

Power Control Unit (PCU):
The MPlus XL system is controlled by the PCU
(power control unit). The PCU contains all of the
controls for the system including system power,
camera, lightring, recording, video titling, and
observation coding
.
POWER ON/OFF
POWER INDICATOR LIGHT
BATTERY FULLY CHARGED INDICATOR (GREEN)
BATTERY IS CHARGING INDICATOR (YELLOW)
BATTERY NEEDS SERVICING (RED)
VDC INPUT ( AMPS)
DVR-USB
USB
AUX I/O (IN/OUT for
audio, video, footage, etc)
AUX MICROPHONE
SPEAKER
MICROPHONE
The PCU has been updated to reect signicant
improvements, including the addition of Pan & Tilt
Camera Head functionality. The operator interface
includes Pan, Tilt, Focus, Home, and automatic picture-
STANDARD OR XL VERSION, AUXILLIARY
CONNECTIONS
