OPERATING THE SYSTEM

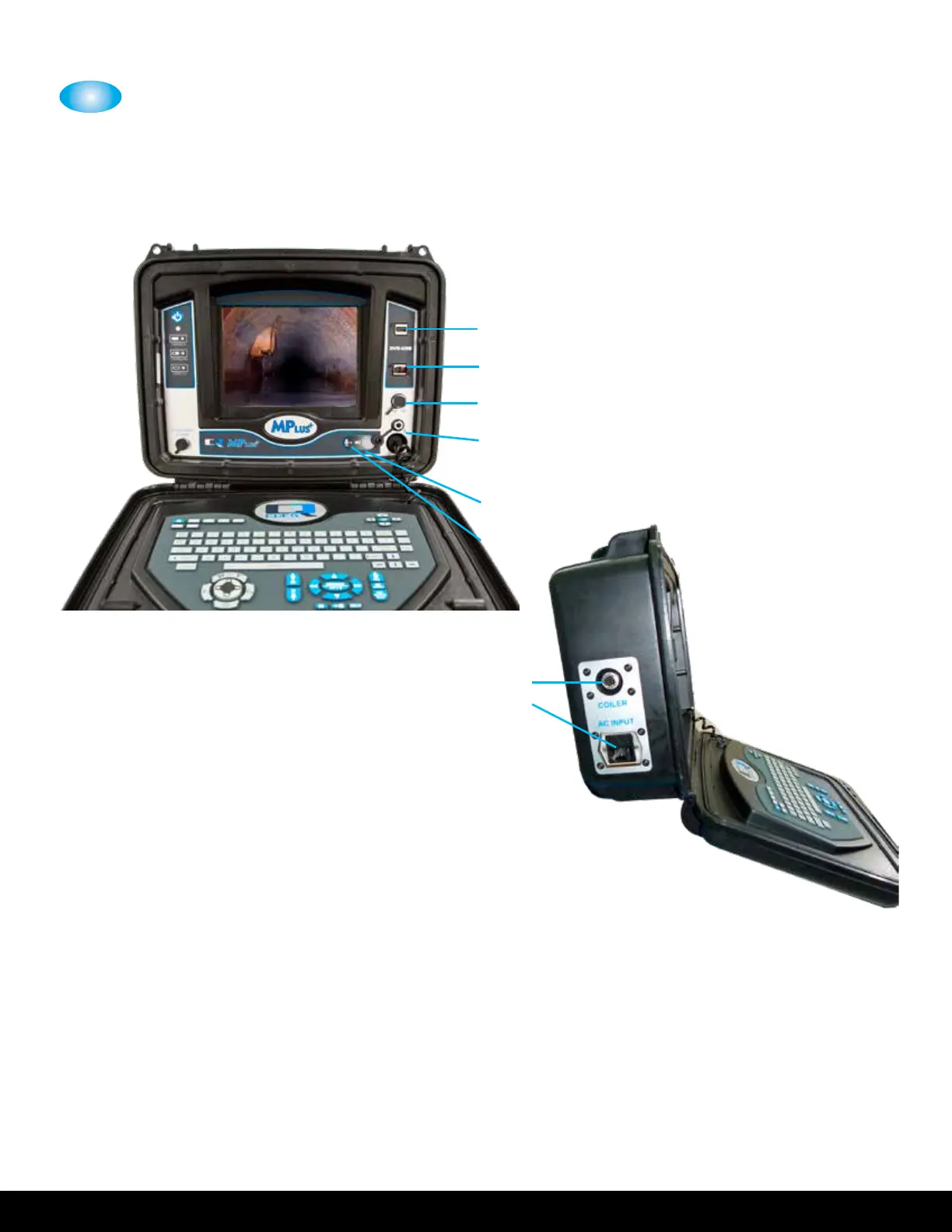

COILER INPUT
AC INPUT
STANDARD OR XL VERSION, AUXILIARY CONNECTIONS - CONTINUED
MPLUS auxiliary connections include auxiliary microphone jack
and a multipurpose I/O port that features Video out, Video in, Audio Out,
distance counter quadrature out and auxiliary vdc out. The following are
interconnecting options available for your MPlus system. Please contact CUES
for a recommended or full list of available options.
Auxilliary Microphone Jack
Multipurpose I/O Port
• CH – Cable to operate MPlus with Multi Conductor Truck System – Connects
Video from MPlus to pin Mainline Cable
• CH – pin to pin Cable – Converts pin CH Cable to pin output.
• CH - Cable with RCA Video Output – ft
• CH - Granite-Net Translator with video and footage counter interface
DVR-USB
USB
AUX I/O (IN/OUT for audio, video,
footage, etc)
AUX MICROPHONE
SPEAKER
MICROPHONE
