Chapter Ⅴ Advanced Function Description
This chapter introduces parameter settings in the modern
parameter interface (default).
advanced
Photosensor
Speed Ctrl
Sensor
Ctrl Out
5.1 Remote Speed Control
The controller supports external analog signal to control output voltage,
analog signal supports potentiometer, 1~5V voltage, 4~20mA current.

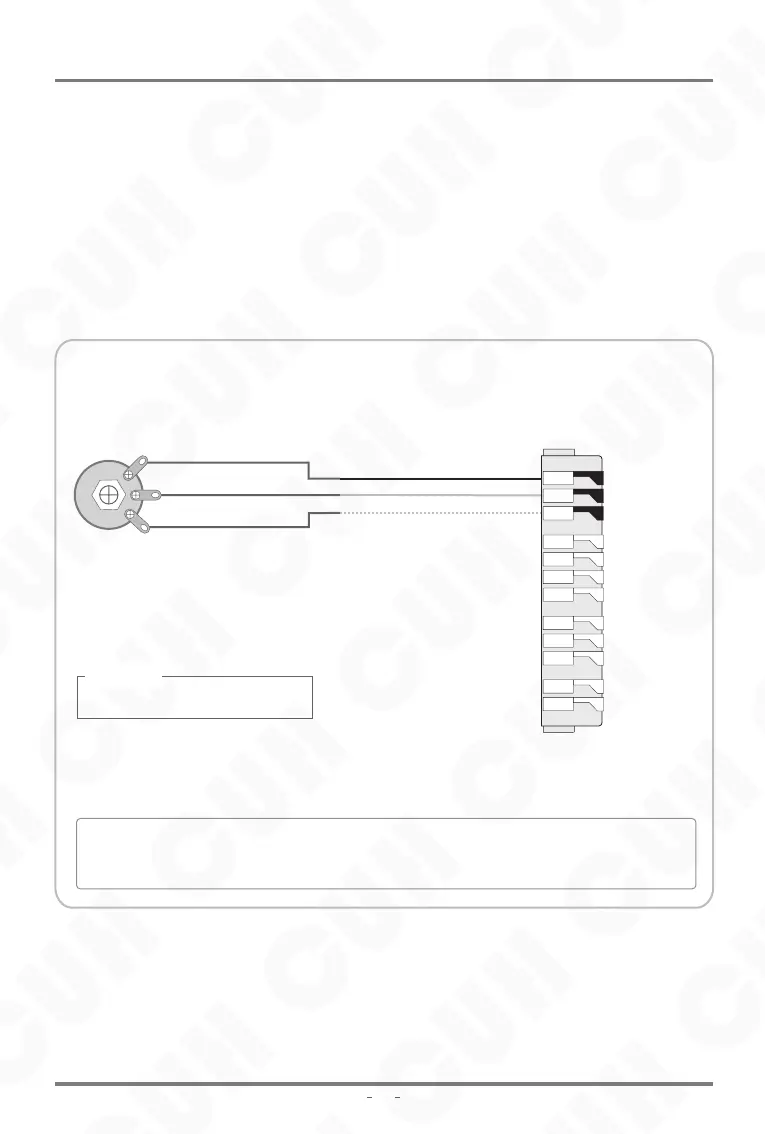

Potentiometer control connection
Suggest：
Please use a 1K linear potentiometer
When the remote speed control signal takes effect, the speed control indicator
lights on , at the same time regulating the voltage on the panel will fail.
Remote speed control power supply+5V
Remote speed control input
Remote speed control resistive ground
SDVC311 Series
Variable Frequency Digital Controller for Vibratory Feeder
SDVC311SMSEN_1.032023-08
