Variable Frequency Digital Controller

for Vibratory Feeder

Saturated Accelerate

Remote

Stop

Lock

Voltage

Frequency

On Delay

Off Delay

Soft Start

SDVC31 1

-M

3.3 Install and Use

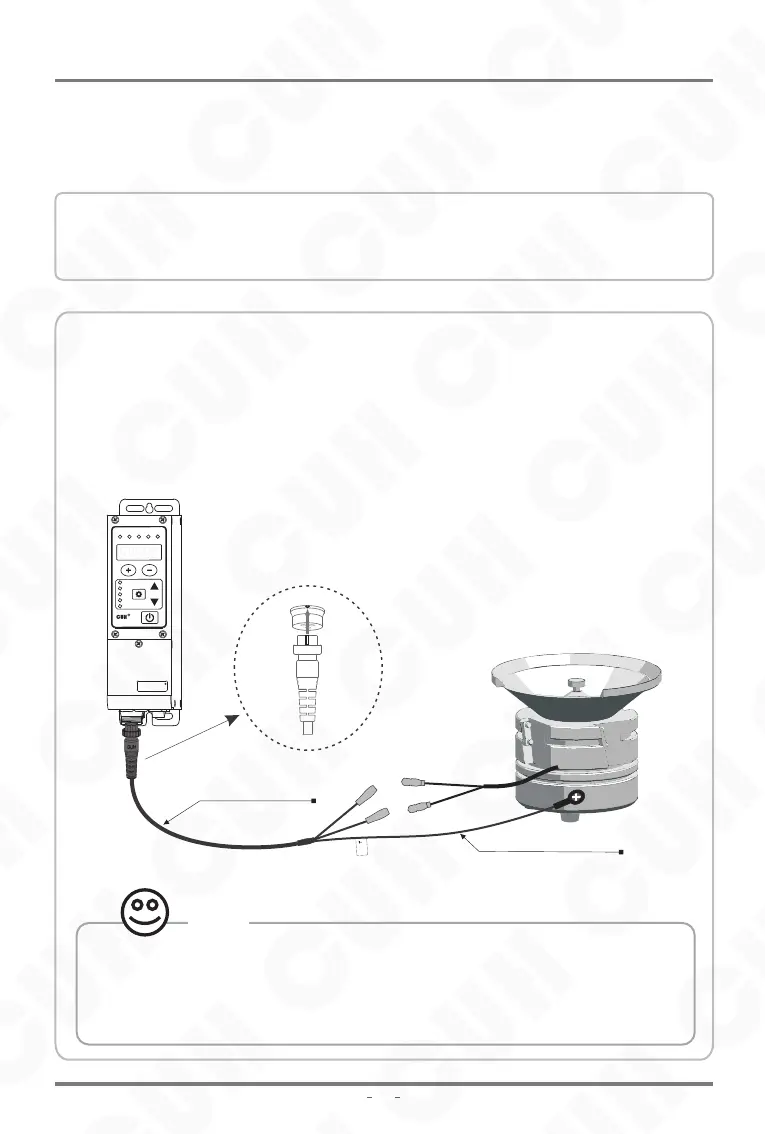

Step One:

Open the packing box and check the controller and all accessories.

Earth Wire

(Yellow - Green Dual color Wire)

Output Power Cable

Connect the wiring terminals of the Output Power Cable to the vibrator's

electromagnetic coil.

Align the notch on the aviation plug of the output cable with the triangle mark on

the output socket of the controller, and then tighten the nut after connecting the

output cable correctly.

Step Two:

1. Make sure the vibrator's electromagnetic coils are connected to the two output

pins of the Output Power Cable, and the vibrator's metal shell is reliably grounding.

2. It is forbidden to connect piezoelectric loads to the power output, otherwise it

may cause an electric shock safety accident!

Note

SDVC311 Series

Variable Frequency Digital Controller for Vibratory Feeder

SDVC311SMSEN_1.032023-08

CUH SDVC311 Series User Manual
