By setting the advanced parameter " d", customers can choose 4 control

output logic direction:

Same Phase Indicates that the valid state of the output signal does not

change.

Reverse_ _: Indicates that the valid state of the output signal is reversed.

Always Active: Indicates that the signal is always active and uncontrolled.

Always Inactive: Indicates that the signal has been invalid and uncontrolled.

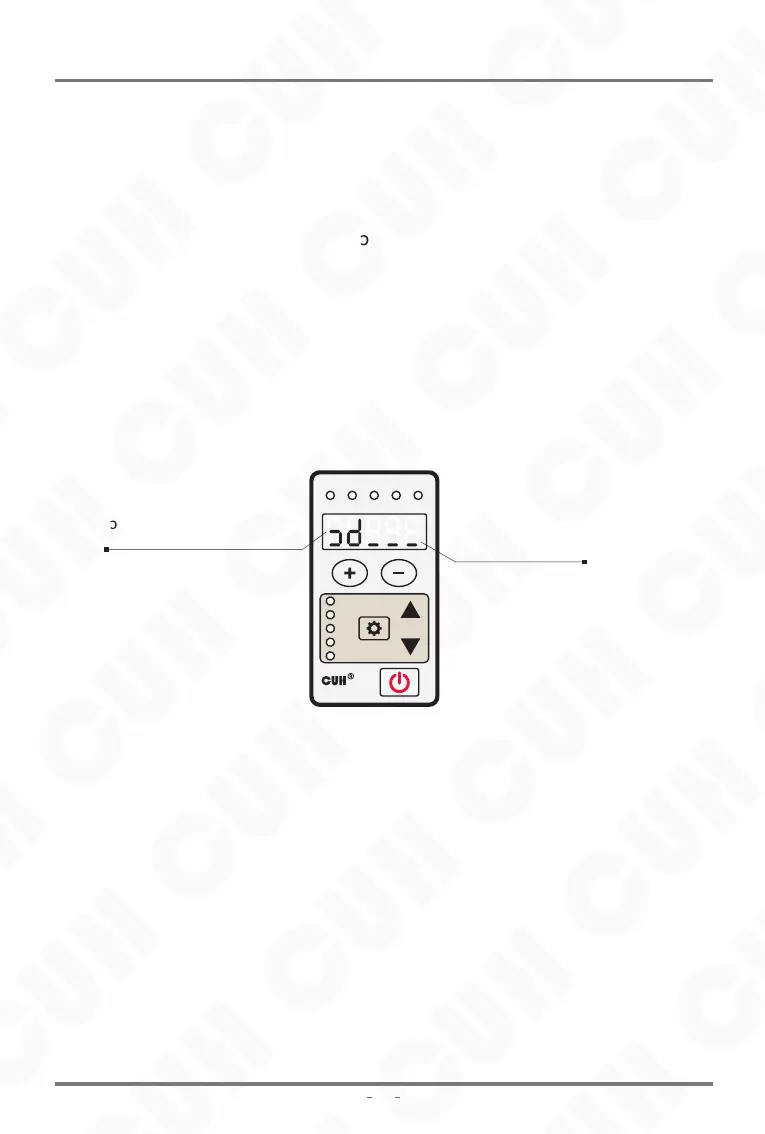

___:

d means

Logic direction of control output

Default setting:

same phase___

Variable Frequency Digital Controller

for Vibrat

ory Feeder

Saturated Accelerate

Remote

Stop

Lock

Voltage

Frequency

On Delay

Off Delay

Soft Start

SDVC311-M

5.4.5 Main Output Signal Control Function

5.4.4 Control Output Logic Direction

The main output signal control is similar to that of the control output. After selecting

two signal sources for logic relationship operation, the control signal is obtained

through on/off delay mode selection and logic direction control. The control signal is

logically with the on/off signal of the panel, than send to the power board to control

the main output.

The main output signal control wiring method, signal source and logic diagram can

refer to the control output function.
