24
5.4.3 Control Output Mode Description
T1: Output signal rising edge delay T2: Output signal falling edge delay
The signal output after the logic relationship selector
Hold mode output
Delay mode output
T1
T1
T2
T2
Customers can choose 2 control output modes: delay mode, hold mode.
Delay mode: It means that after the controller output drive signal changes from
valid to invalid, the control output turns off after a period of off delay time.
Hold mode: After the controller output drive signal becomes valid, the control
output remains on during the off-delay time, and turns off after the off-delay time
is exceeded.

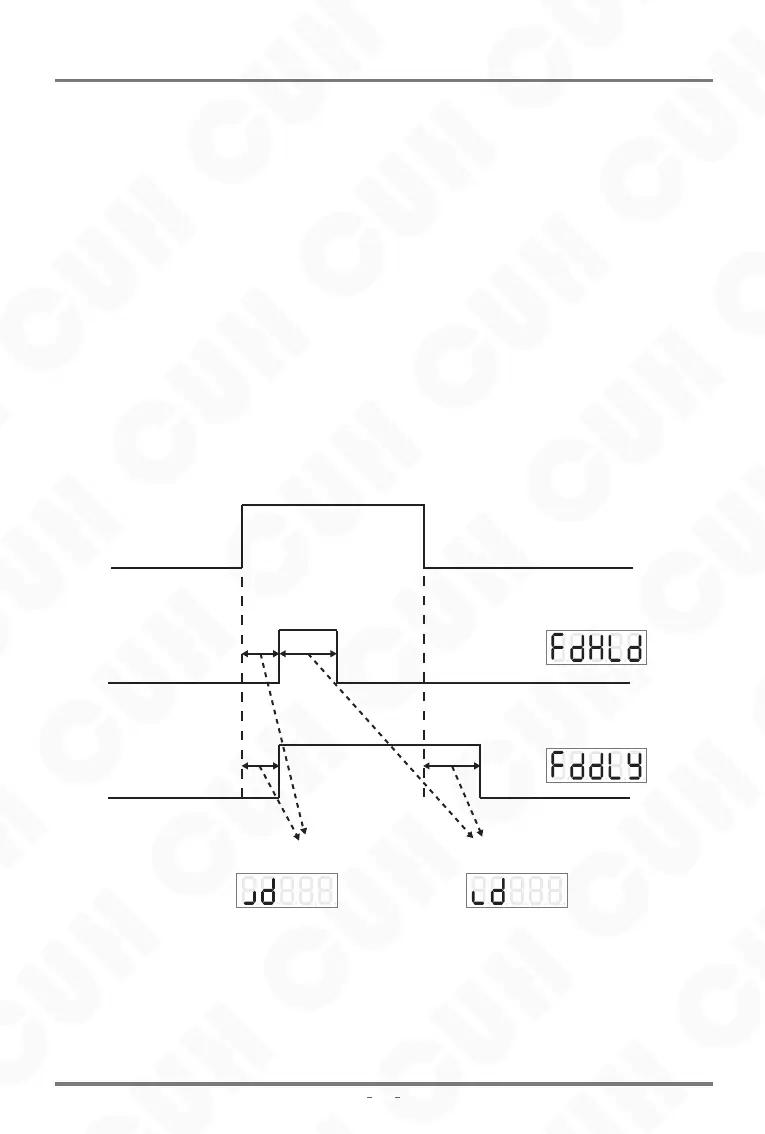

The difference between the two modes is expressed in the form of a timing diagram
as follows, where the input signal is the signal output after the logic relationship
selector.
SDVC311 Series
Variable Frequency Digital Controller for Vibratory Feeder
SDVC311SMSEN_1.032023-08
