4.5 Brake Cycles/Soft Shutdown Time
In order to avoid sudden shock to the vibrator coil, the controller can gradually
increase output voltage from 0 to the preset value when startup
Soft Startup Time ( t ): The period of time it takes for the controller to
smoothly rise its output voltage from 0 to the preset value when startup.
Variable Frequency Digital Controller
for Vibrat
ory Feeder
Saturated Accelerate
Remote
Stop
Lock
Voltage
Frequency
On Delay
Off Delay
Soft Start
SDVC311-M

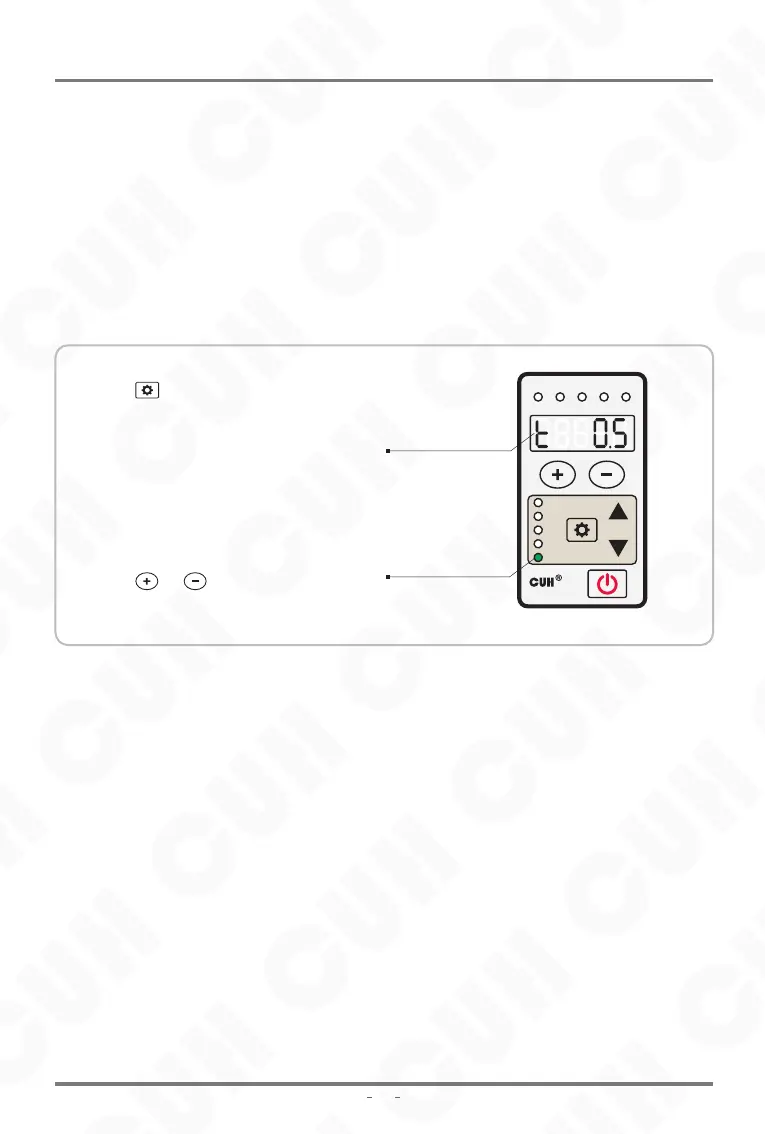

4.4 Soft Startup Time
8
to enter the basic parameter
interface.
8Press ▲ or ▼ to switch to soft
startup parameter "t" and the
default value 0.5.
8Press or to adjust the
parameter value.
Press and hold for 2 seconds
t means
Soft Startup Time
Soft Start Indicator
Since the vibratory feeder will vibrate freely for a period of time after the controller stops
output, the material will continue to move during this time. This will cause errors for some
applications of precision metering and packaging of materials, so the vibration needs to
be stopped quickly.
Brake Function: by delaying the start point of the slow stop
180° to achieve the opposite effect of the driving force and the free vibration phase of the
vibratory feeder. It is realized by setting the soft shutdown time ( ) as a negative value, the
unit is cycle, that is, the number of current cycles of reverse driving when braking.
When the controller is stopped from the running state, the output voltage can be gently
reduced to 0 to prevent the vibration equipment from being impacted.
Soft Shutdown Time ( ): When the controller stops from the running state, the time
required for the output voltage to smoothly decrease from the set value to 0 .
To quickly stop the vibration
t
t
SDVC311 Series
Variable Frequency Digital Controller for Vibratory Feeder
SDVC311SMSEN_1.032023-08
