SDVC311-M

4.1 Output Voltage

Output voltage rectified mean value of the controller can be set directly and

digitally through the keypad. Benefit from the unique voltage stabilizing

function, output voltage of the controller won't fluctuate as the input voltage

does, so that the vibrator can maintain stable operation in case of unstable

grid voltage.

controller.

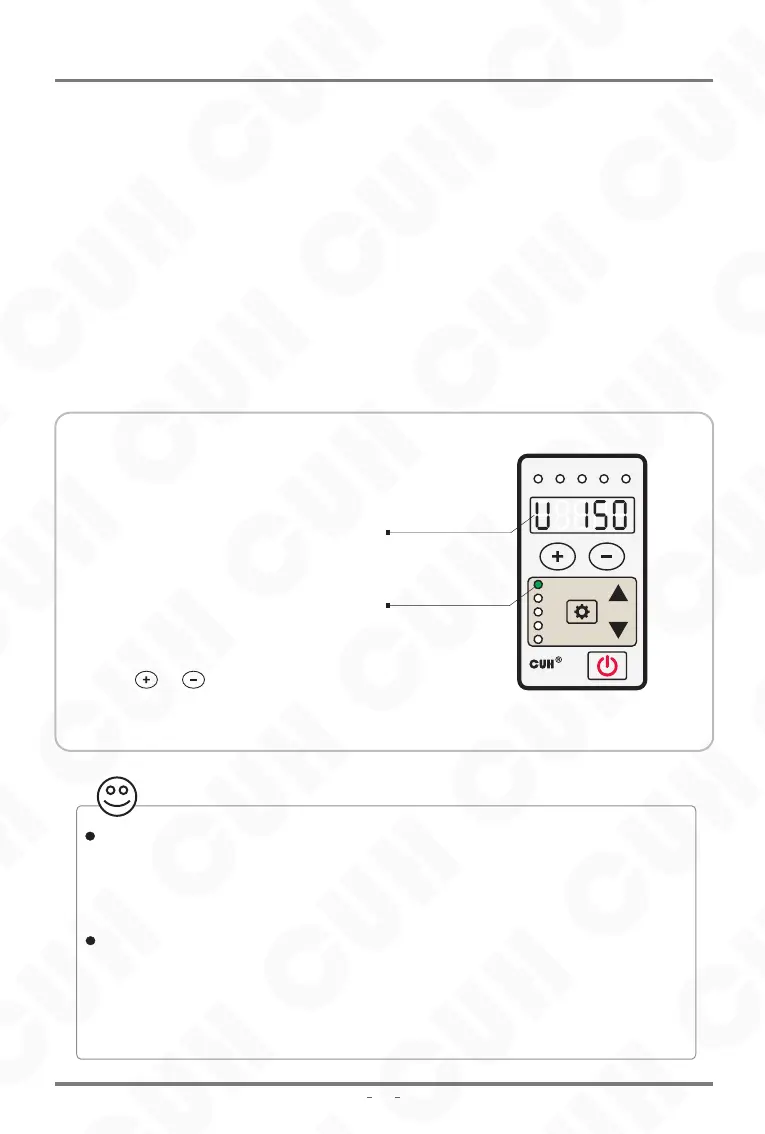

8The controller enters the output

voltage parameter. The voltage

indicator lights up, and the LED

display output voltage parameter

U and the default value 150.

8Press or to adjust the

parameter value.

Turn on the power switch of the

The controller does not have a boost function. When the controller cannot

reach the set voltage due to the limitation of the input power supply

voltage, the saturation indicator will light up, and the mains voltage

compensation will fail at this time.

The controller can achieve a certain degree of acceleration effect by

sacrificing the sinusoidal characteristics of the output waveform, which is

determined by the parameter "acceleration index y". When entering the

acceleration state, the output current waveform changes from a sine wave

to a triangular wave, and the acceleration indicator lights up.

Chapter Ⅳ Basic Function Description

This chapter introduces basic parameter settings in the modern parameter

interface (default).

SDVC311 Series

Variable Frequency Digital Controller for Vibratory Feeder

SDVC311SMSEN_1.032023-08

Brand	CUH
Model	SDVC311 Series
Category	Controller
Language	English
