Set NPN or PNP type by parameter.

Set the sensor type through the advanced parameter ΓA.

When other external signals such as sensors are used to start and stop operations

through the C port of the controller, if the operation needs to be delayed for a

period of time after the signal is given or the signal is restored, you can set the

advanced parameters "Sensor C port on delay" and It can be realized by the time

of "Sensor C port off delay". For the operation method, please refer to the

Intelligent Photoelectric Sensor On/Off Delay Time Setting.

5.3 Switch Sensor

The port can support NPN, PNP, Ut1, Ut0 modes.

The Ut1 mode is a single scan, that is, before the sensor signal is invalid, the high

and low levels are changed to detect whether the port is valid. After finding a valid

signal, the port sensor type is determined and no longer scans.

The Ut0 mode is continuous scanning, regardless of the sensor type, it always

detects whether the port is connected to a valid signal by changing the high and

low levels.

Switch Sensor

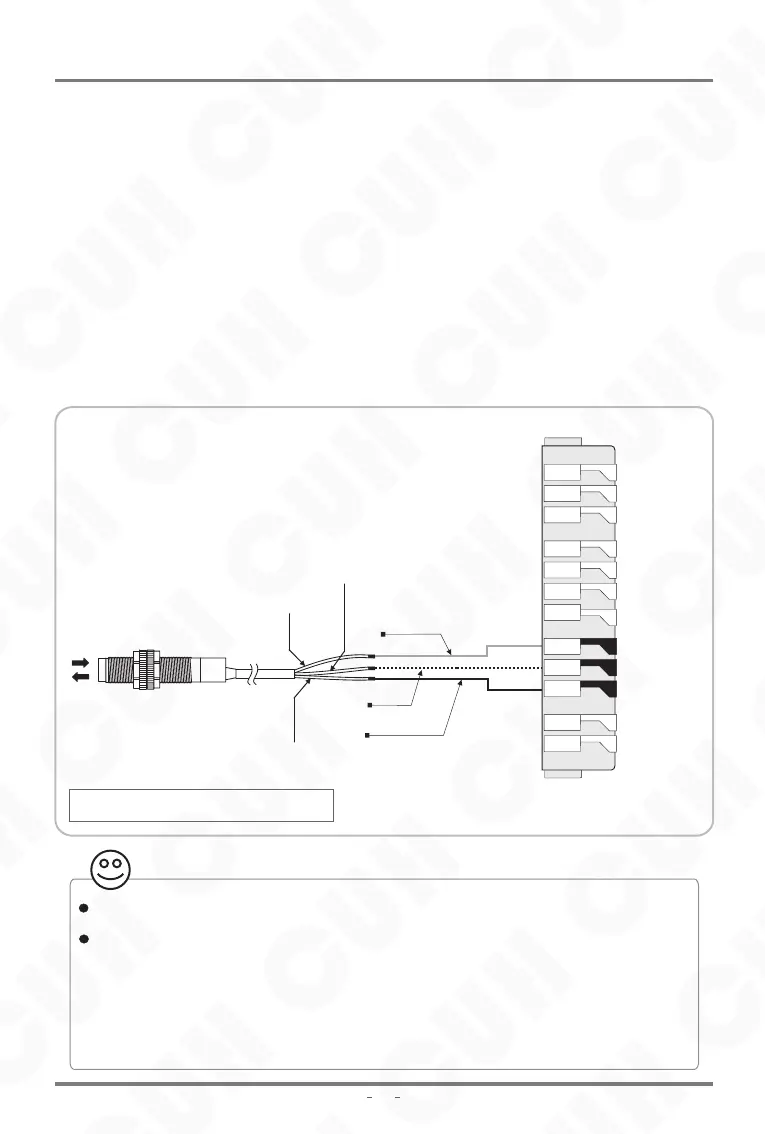

Switch sensor connection method

Brown+

Blue-

Black OUT

GND

Signal

+24V Output

Photosensor

Speed Ctrl

Sensor

Ctrl Out

SDVC311 Series

Variable Frequency Digital Controller for Vibratory Feeder

SDVC311SMSEN_1.032023-08
