Schematic
Schematic 14
13 CULLIGAN GLOBAL ELECTRONIC CONTROLLER
To RS 485Comm Port
on GBE Ciruit Board, #1
To Flow Meter Connection
on GBE Circuit Board.
CABLE 01016342
Flow Meter Connector
(from meter).
To Flow Meter Connection
(on GBE Circuit Board).
To RS 485Comm Port
on GBE Ciruit Board, #2

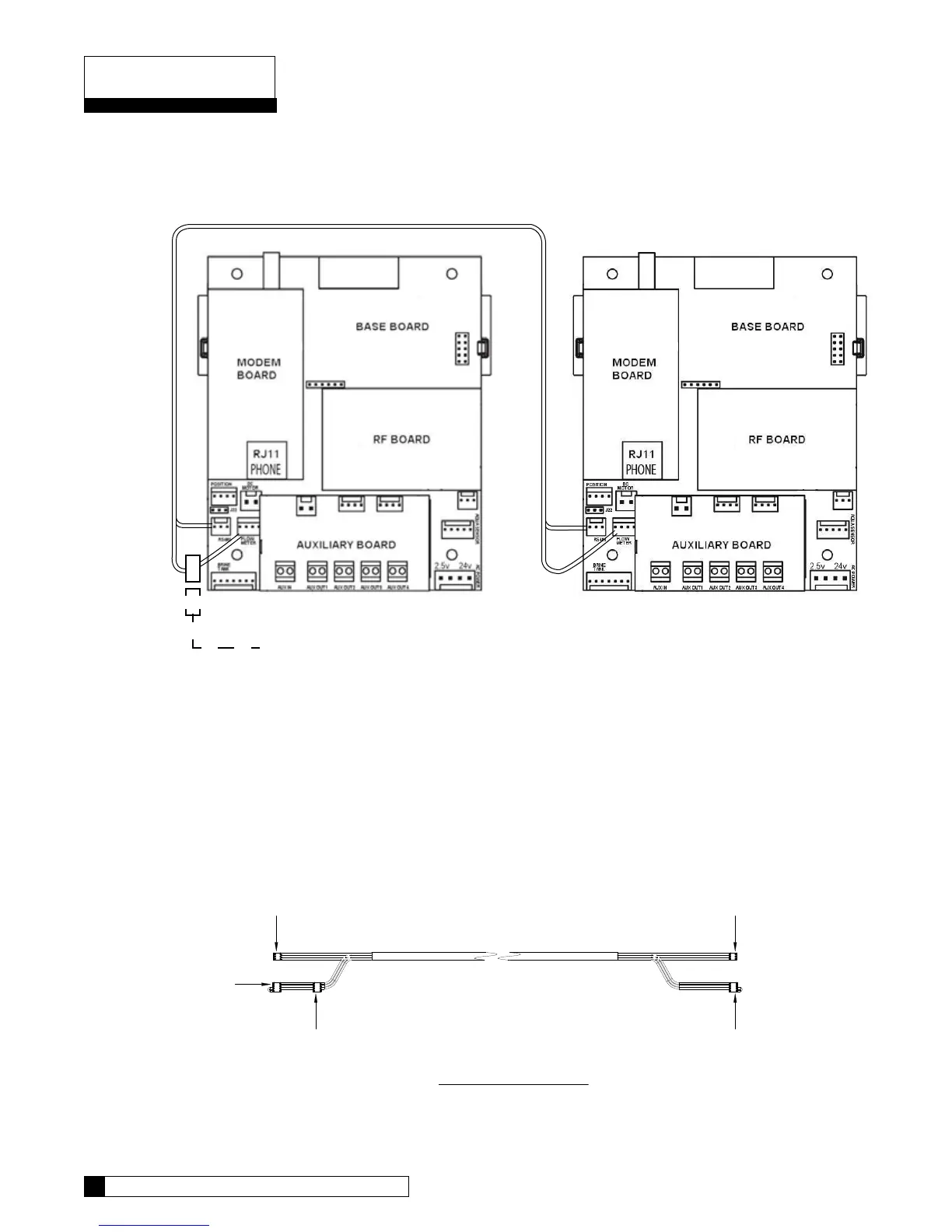

DUPLEX ALTERNATING
Duplex Alternating with Meter option
For triplex, quad, etc alternating, you must use a meter on each unit and connect the same way as
progressive flow.
Duplex Alternating Cable 01016342
Communication Cable 01016342
Figure 18
Unit 1 Unit 2
Flow meter
