Auxiliary Outputs (Optional)

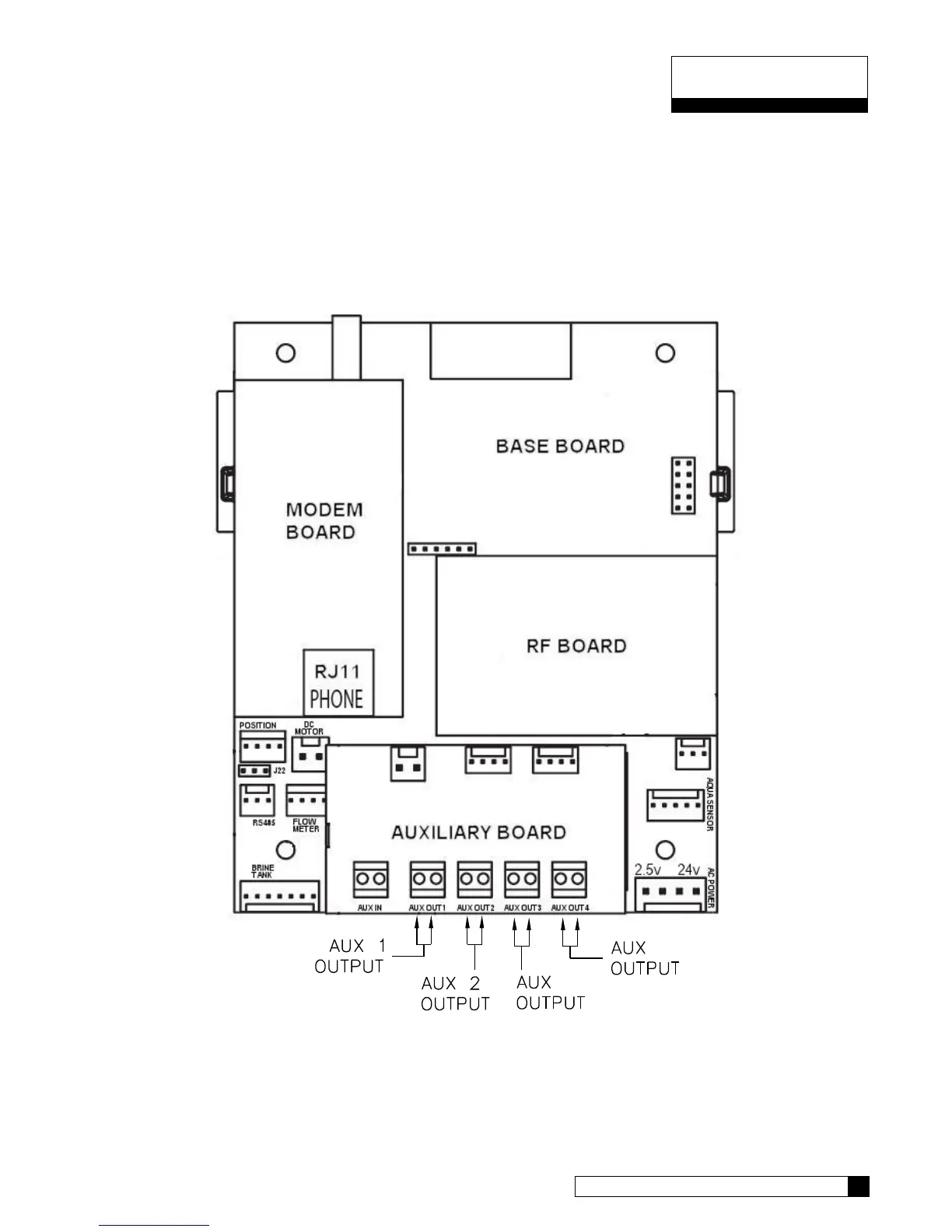

The Auxiliary Outputs - reference Figure 21) are output triacs that can be programmed to provide power to a
“normally open” (normally no power to auxiliary output until power required) or a “normally closed” contact (user
choice). These 24VAC outputs can be used for energizing a relay coil only. (2.1 Amp maximum power draw)
Refer to the section on Programming (page 46) for additional information on the uses of this feature.
Schematic 16
15 CULLIGAN GLOBAL ELECTRONIC CONTROLLER
Schematic
Figure 21
