Culligan GBE - Appendices and Index; Appendix A: Flow Device K-Factor Data

Clack
Autotrol
Signet/ Seametrics

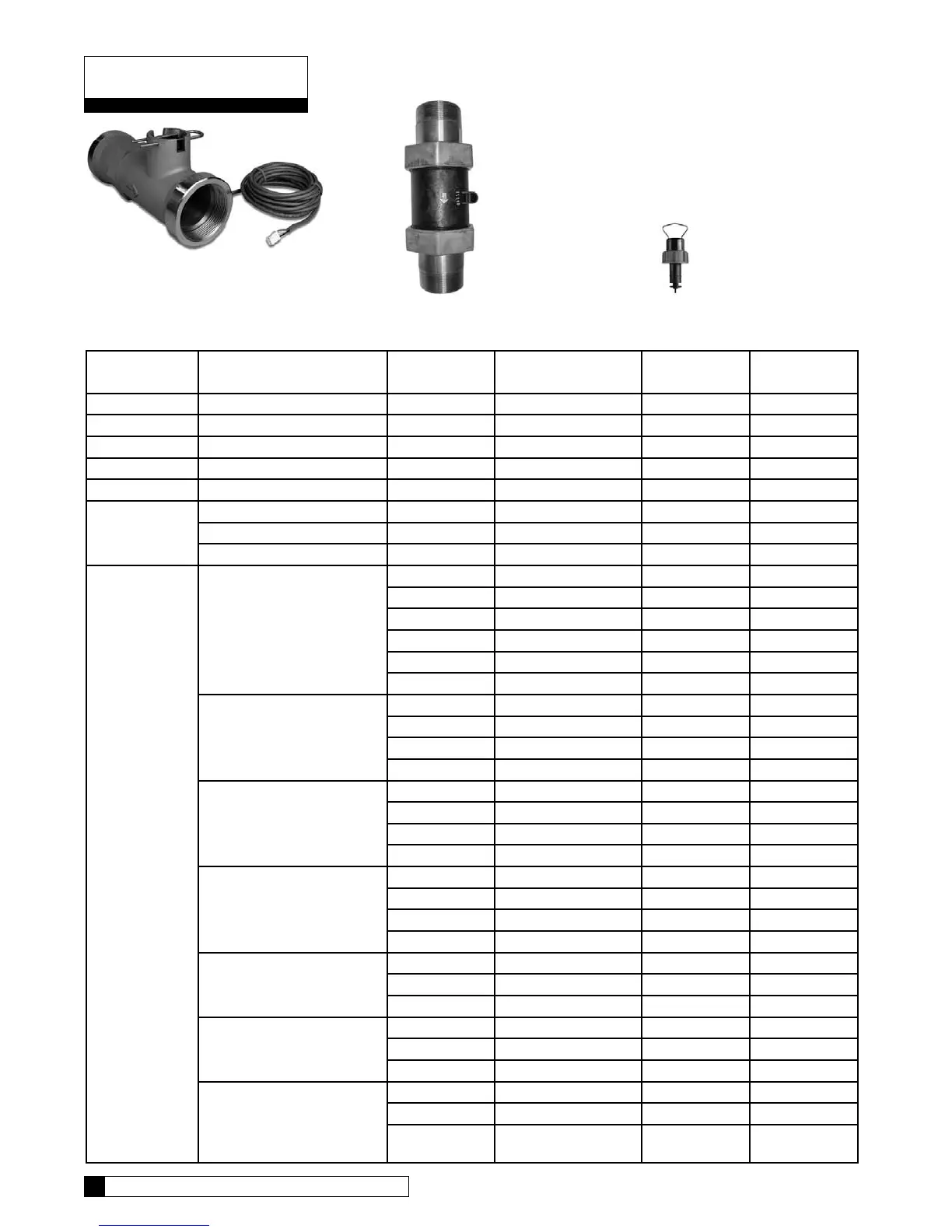

Flow Device K-Factor Data
Meter Type Installation Fitting
Type (if applicable)
Pipe Size Flow Range
(Gal. Per Min.)
1
K-Factor -
Gallons
K-Factor -
Liters
Hi-Flo 22 Integral 78 295.2
Clack Brass Tee 1.5” 0.75 to 75 37 140
Clack Stainless Steel Tee 2.0” 1.5 to 150 20 75.7
Autotrol Plastic Body w/SS ends 1.5” 7 to 250 15 56.8
Autotrol Plastic Body w/SS ends 2” 7 - 250 15 56.8
SeaMetrics
Paddlewheel
All 2” 3.1 - 195.8 18 58.1
All 3” 6.6 - 440.6 11 41.6
All 4” 11.74 - 783.2 6.5 24.6
Signet
Paddlewheel
(Blue Nut)
Sch. 80 PVC Tee
1” 0.6 - 42 352.4 1333.8
1.25” 1.2 - 77 177.2 670.7
1.5” 1.6 - 106 117.9 446.3
2” 2.7 - 179 66.7 252.5
2.5” 3.8 - 256 43.0 162.8
3” 6.0 - 401 26.7 102.1
Sch. 40
Galvanized Tee
1” 0.7 - 44 213.0 806.2
1.25” 1.2 - 80 127.7 483.3
1.5” 1.7 - 110 94.4 357.3
2” 2.8 - 184 58.4 221
Type K Copper Tee
1” 0.7 - 48 256.4 970.5
1.25” 1.1 - 75 176.4 667.7
1.5” 1.6 - 107 115.7 437.9
2” 2.8 - 187 63.4 240
Type L Copper Tee
1” 0.8 - 51 241.6 914.5
1.25” 1.2 - 78 170.9 646.9
1.5” 1.7 - 110 112.0 423.9
2” 2.9 - 192 61.7 235.5
Sch. 40 Steel
Pipe Saddle
2.5” 4.5 - 298 37.6 142.3
3” 6.9 - 460 23.2 87.8
4” 11.9 - 793 13.3 50.3
Sch. 80 PVC
Saddle
2.5” 3.9 - 256 43.0 162.8
3”` 6.0 - 401 26.7 101.1
4” 10.5 - 701 15.0 56.8
Brazolet
-Sch 40 Copper Pipe
-Sch 40 Bronze Pipe
-Sch 40 Brass Pipe Weldolet
-Sch 40 Steel Pipe
2.5” 4.0 - 264 37.6 142.3
3” 6.2 - 411 24.3 92
4” 10.8 - 716 13.9 52.6
Appendix A
