Culligan GBE User Manual

WIRING PROCEDURES AND DIAGRAMS
Preparation
1. Loosen the screws or latches securing the controller access cover (Figure 3 or 4) on each controller
provided.
2. Using a small screwdriver, loosen all the terminal strip binding screws on the main circuit board that do
not contain wires by turning counterclockwise until the wire clamp has been fully opened (see Figure 5).
Installation

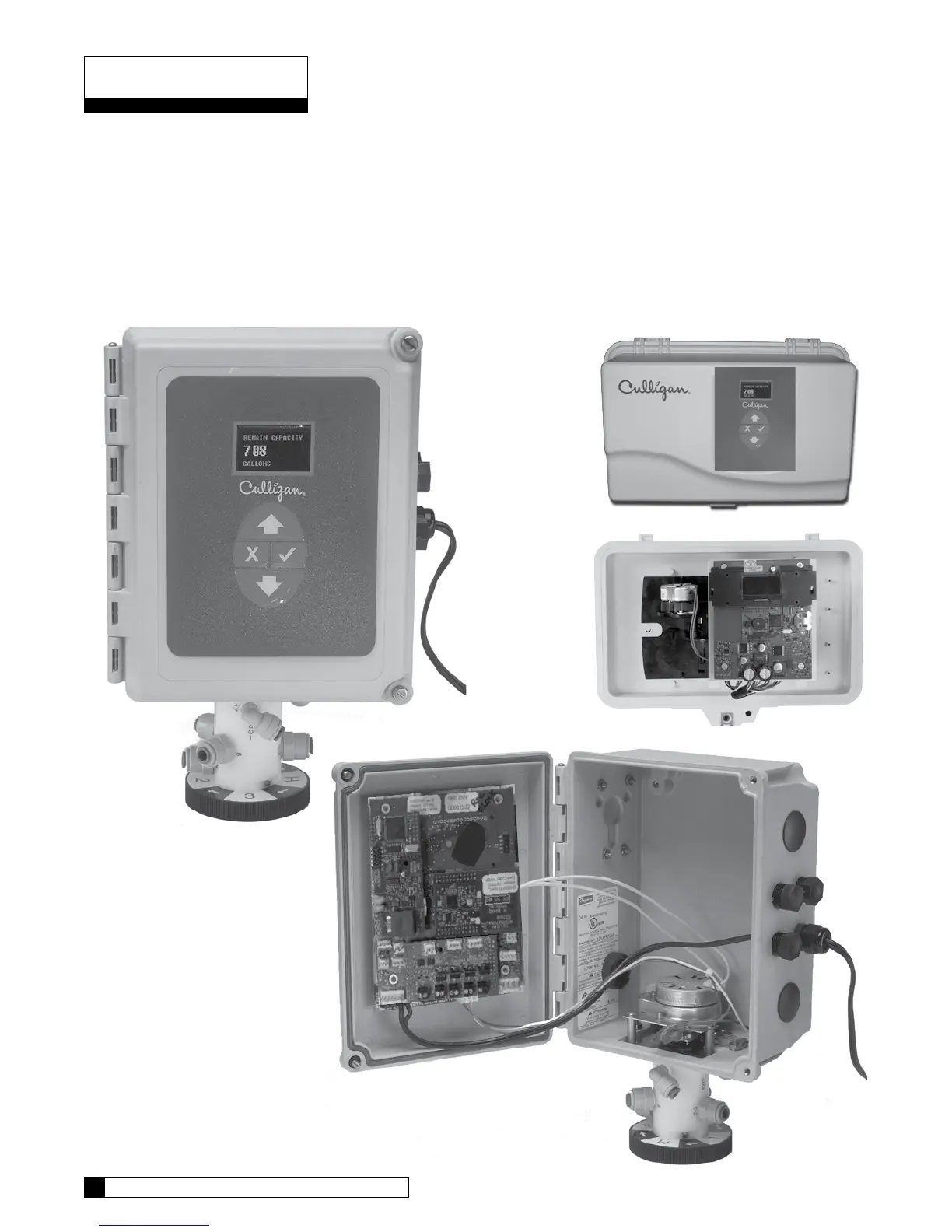

Figure 3
Figure 5
Installation 6
5 CULLIGAN GLOBAL ELECTRONIC CONTROLLER
Figure 4
