CURBTENDER Quantum Compact - Page 60

20.00
20.00
R2.00 (4)
1.00
1.00
3.00
10.75
INSTALL TRIM LOCK TO SIDE SHEET HOLE
10
2
3
4
4
5
6
3
4
4
5
2
1
11
7
13
14
89
6
12
.16
.19
4

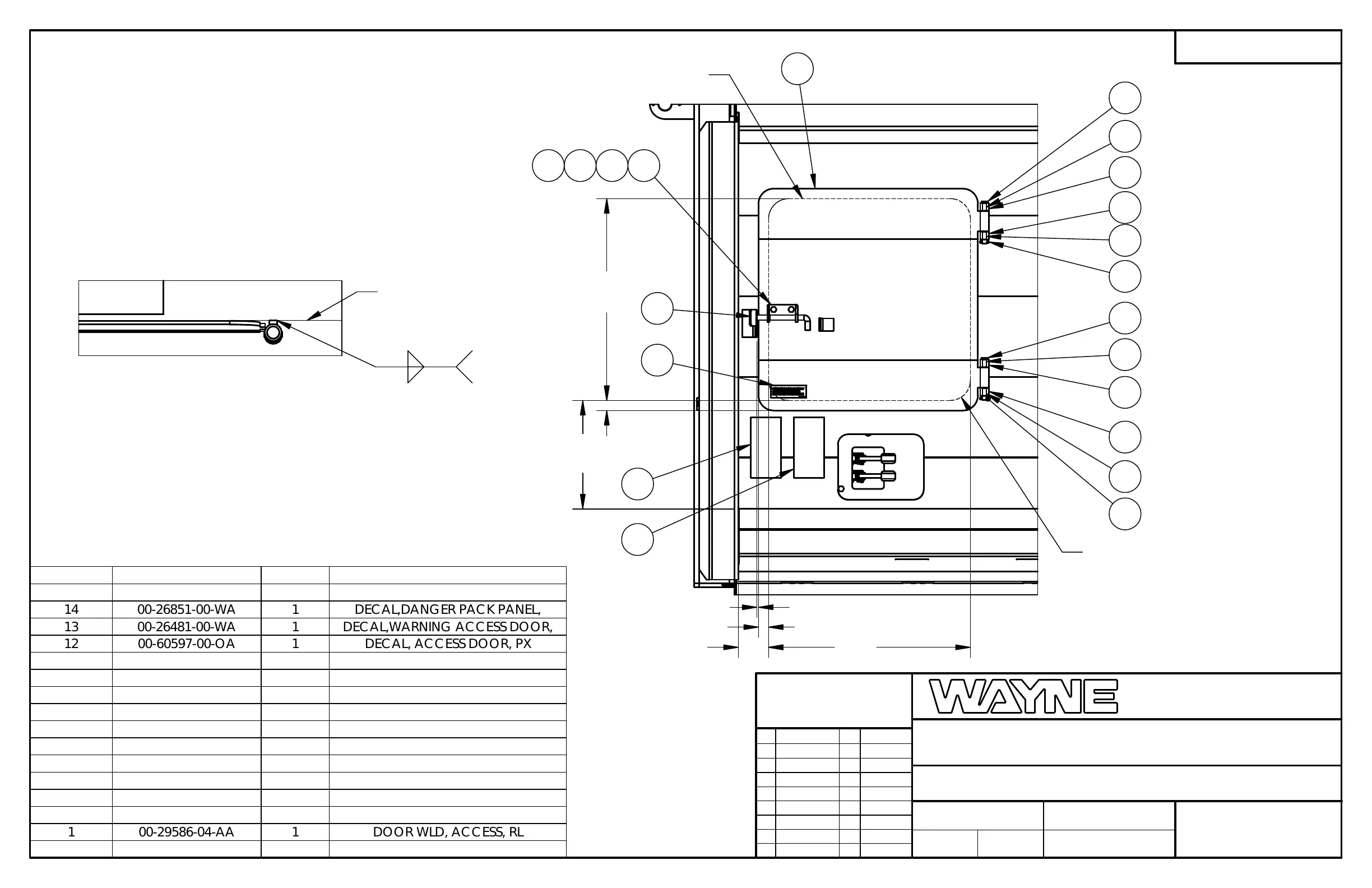

BODY SIDE SHEET
DOOR HINGE DETAIL
SCALE 1:4
ITEM NO. PART NUMBER QTY. DESCRIPTION
16 00-63372-00-OA 1 GUSSET, SIDE SHEET, QUS
15 07-70002-09-R 7F TRIM LOCK
14 00-26851-00-WA 1 DECAL,DANGER PACK PANEL,
13 00-26481-00-WA 1 DECAL,WARNING ACCESS DOOR,
12 00-60597-00-OA 1 DECAL, ACCESS DOOR, PX
11 00-60596-00-OA 1 TAB, BODY ACCESS DOOR, PX
10 445-005-001 2 NUT,
9 470-031-000 2 WASHER, LOCK
8 415-005-012 2 CAPSCREW
7 425-008-002 1 LATCH,HEAVY DUTY,RH
6 480-004-025 2 PIN, SPRING
5 00-37228-01-OA 2 SPACER, DOOR HINGE, PX
4 00-09603-01-OA 4 HINGE
3 00-37228-02-OA 2 SPACER, DOOR HINGE, PX
2 485-008-018 2 PIN,CLEVIS
1 00-29586-04-AA 1 DOOR WLD, ACCESS, RL
THICK SHIM
THICK SHIM
THIN SHIM
THIN SHIM
SHEET 1 OF 2
SHEET 1 OF 2
7
8
BY ECN NUMBER SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
6
5
DESCRIPTION
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
DAS
00-39010-01-AB
ECN 06035 DAS 11/17/14
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-39010-01-AB
05/07/12
DOOR INSTALL, ACCESS, QUS
05198
1:8
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
