OPERATING INSTRUCTIONS
This section of the manual provides all the instructions necessary to start and operate the Quan-
tum Compact, including speci c instructions for loading, packing, and unloading the unit.
PACKING THE LOAD
The Quantum Compact incorporates the backhoe principle of operation. The sweep panel (lower) and
swing panel (upper) make up the backhoe. Another vital component in the packing operation is the
ejector panel. When operated correctly, these three components are capable of producing fairly con-
sistent refuse loads.
1) Engage the PTO control by turning the system switch “On.” This switch is located on the main
control box in the cab. This action will start the hydraulic pump (hot shift PTO only). While
operating in cold climates, it may be necessary to allow the hydraulic system to warm-up for a
while before engaging any of the hydraulic functions.
2) Be certain the tailgate is in its lowered position. The tailgate open light will illuminate if the
tailgate is not latched.
3) Move the ejector panel to the rear of the body before starting to pack the refuse. Failure to
do this will produce a light and uneven load density. Your Quantum rear loader is equipped
with a resistance cartridge as an added feature to the body valve. The resistance cartridge
allows the hydraulic system to sense the pressure created on the face of the ejector panel dur-
ing the packing process. When the pressure exceeds a pre-set pressure setting, the resistance
cartridge automatically causes the ejector panel to move forward a few inches. Because of
this, no additional action on the eject panel is needed by the operator until the ejector panel
has reached the front of the body.

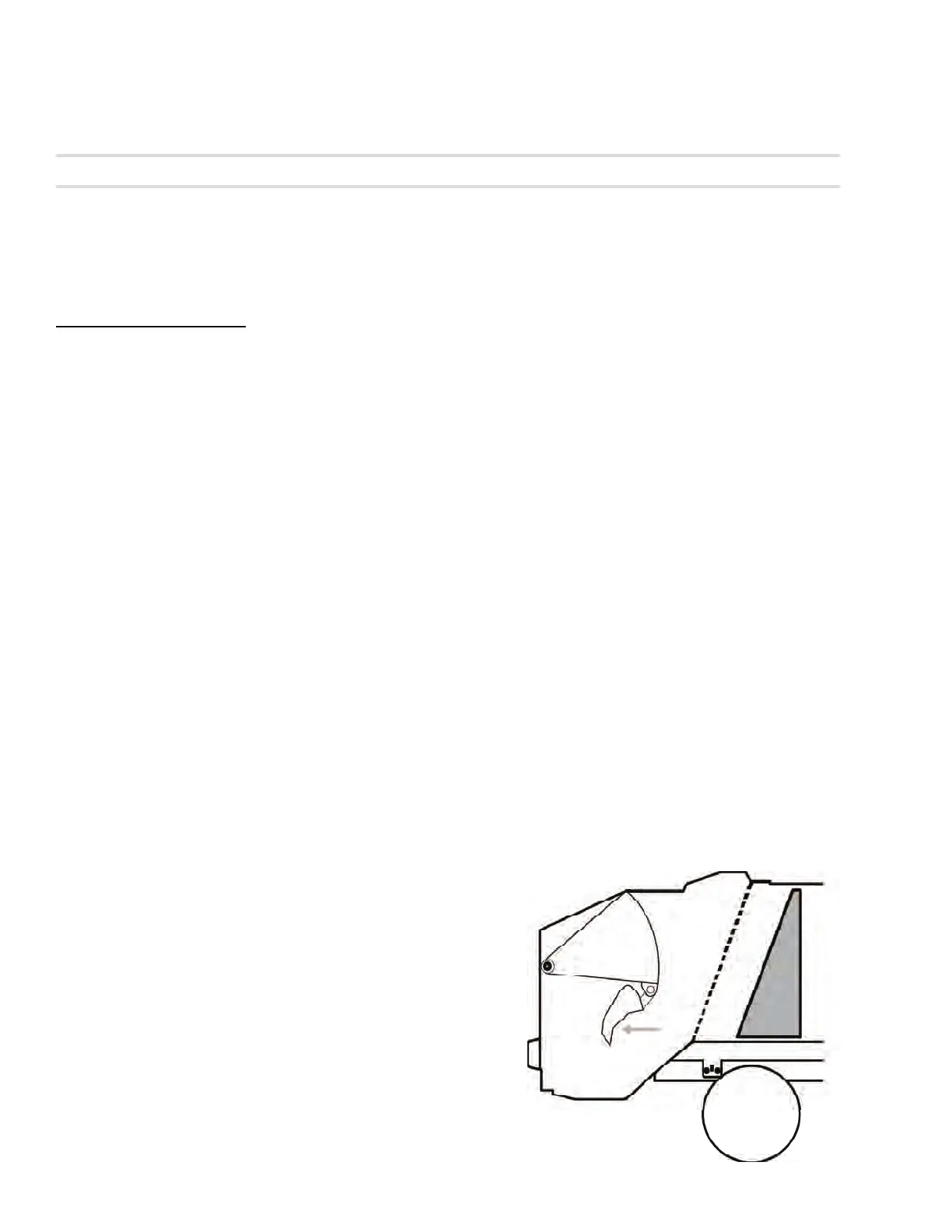

4)
PULL BOTH PACKING CONTROL LEVERS
OUT TO THE DETENT POSITION.
The sweep panel will pivot up and the
sweep control lever will “pop out” of
detent at the end of the sweep cylinder
stroke.
