The sweep and swing panel will move
down over the loaded hopper. The
swing control lever will “pop out” of
detent at the end of the swing cylin-
der stroke.
5) PULL BOTH THE PACKING CONTROL
LEVERS IN TO THE DETENT POSI-
TION.

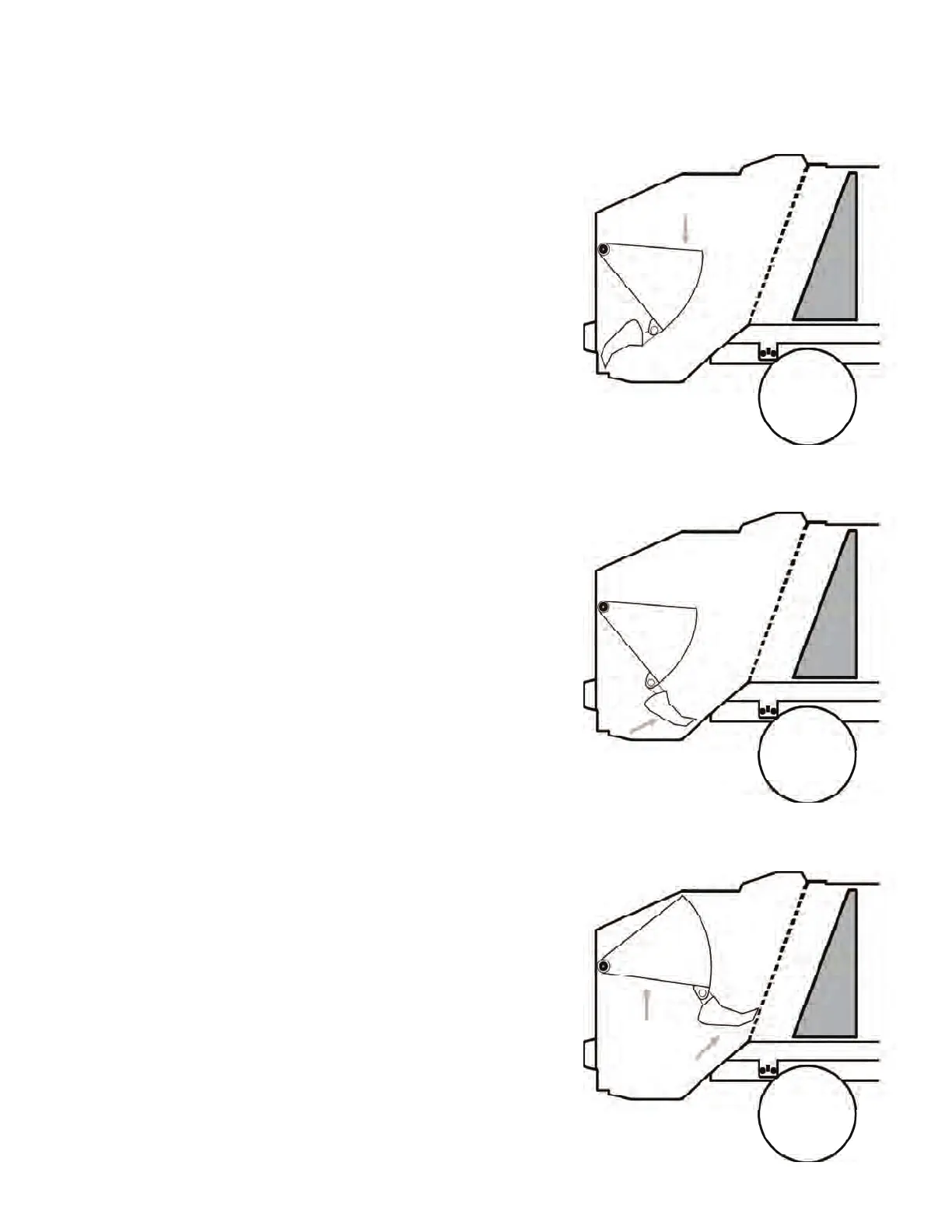

The sweep panel will pivot down to
sweep the hopper clean. The sweep
control lever will “pop out” of detent
at the end of the sweep cylinder
stroke.
The sweep and swing panels will
pivot up to pack the refuse tightly
into the body. The swing control lever
will “pop out” of detent at the end of
the swing cylinder stroke.
