GRIND SMOOTH THE TOP SURFACE
OF THE I-BEAM AND GREASE
SHEET 2 OF 2
SHEET 2 OF 2
17
16
LOCATE INTO PLACE AND
SECURE WITH 4 WELD TACKS
181920
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
6
7
8
ECN RELEASE
00-36255-XX-AB
ECN 04058 DAS 04/14/09
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36255-XX-AB
09/15/05

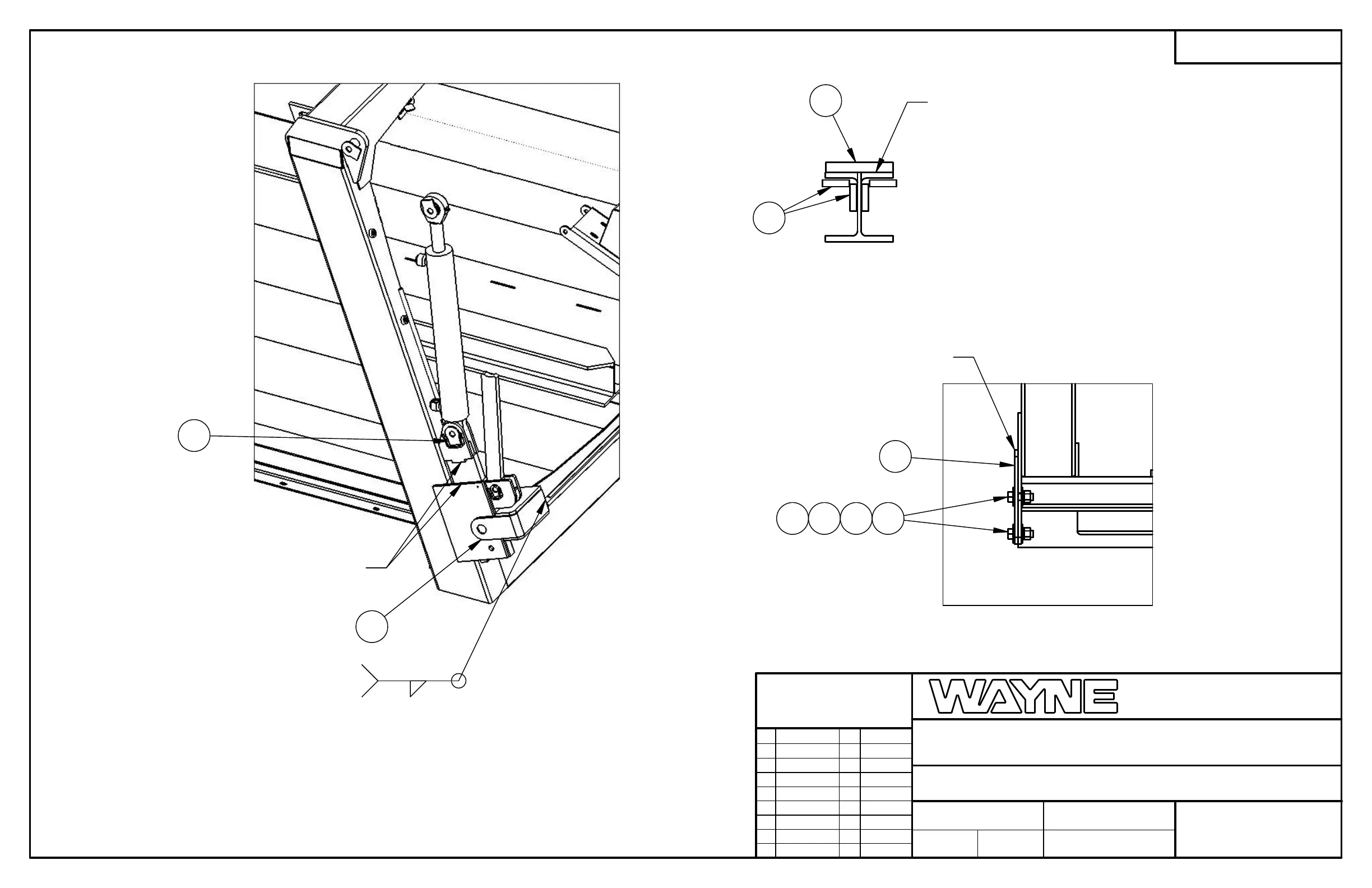

PARTS ASSY, BODY, PLS
02997
DAS
1:10
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
SPACE UP 3.00 BEFORE WELDING LATCH
WLD (ITEM 8)TO TAILGATE. MAKE SURE
LATCH PIN OF ITEM 8 IS AT THE BOTTOM
OF THE SLIDING LATCH HOOK (ITEM 4)
EJECT PANEL LOWER SLIDE BLOCK DETAIL
SCALE 1:6
3
8
EJECT PANEL RETAINER DETAIL
SCALE 1:6
