8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
00-36304-XX-AB
ECN 04083 DAS 06/17/09
ECN 04163 IMM 07/01/09
ECN 06794 EDC 05/05/17
ECN
ECN
ECN
ECN
ECN
00-36304-XX-AB
10/17/05

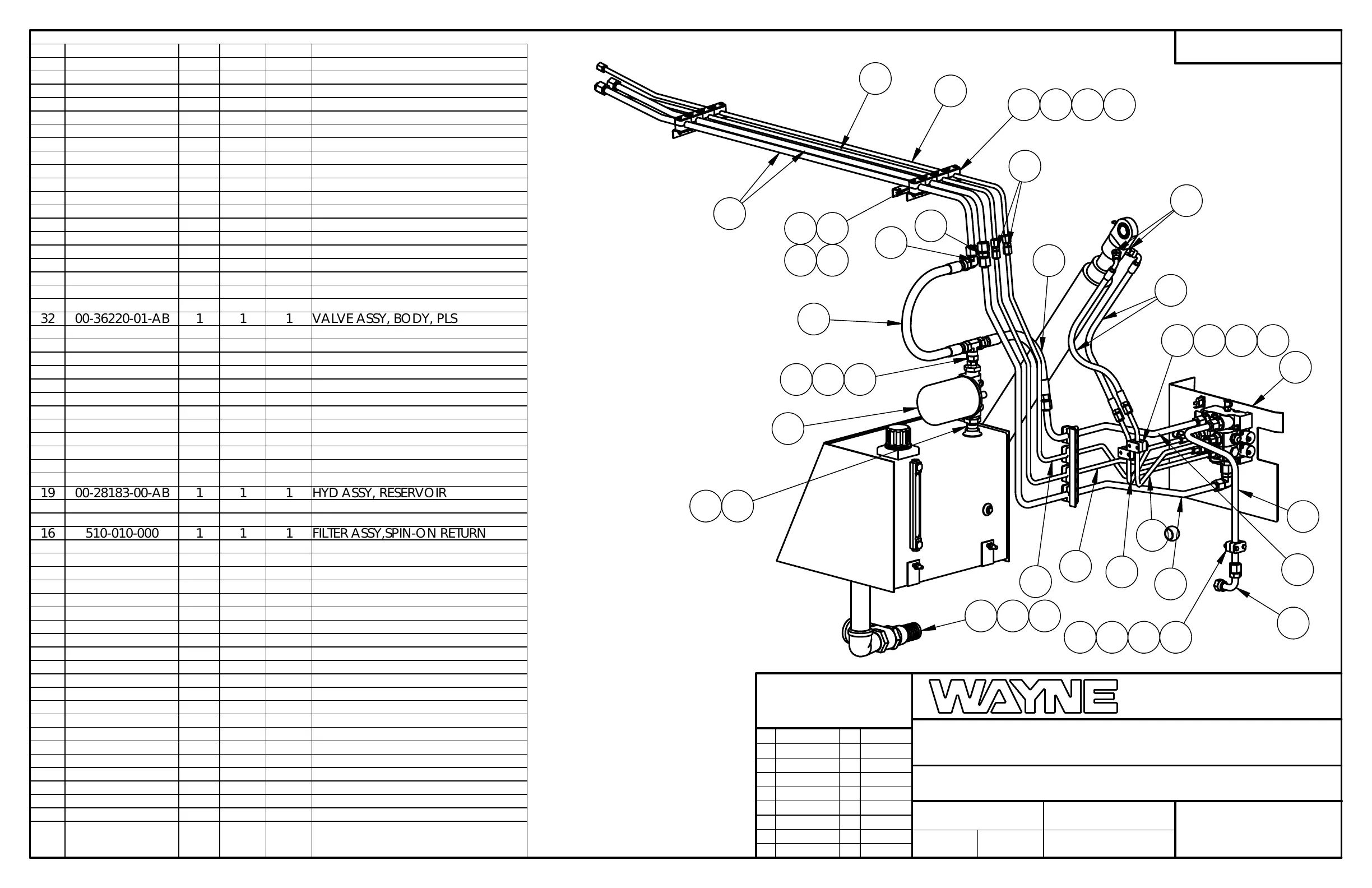

HYD ASSY, BODY, PLS
03034
DAS
1:10
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM
NO.
PART NUMBER
6 YD
QTY.
8 YD
QTY.
10 YD
/QTY.
DESCRIPTION
52 430-003-000 8 8 8 STRAP, TIE
51 07-52015-00-R 9 9 9 HOSE COVERING
50 G12C12E12-036 2 2 2 HOSE ASSY,,
49 00-36217-02-AA 1 1 1 TUBE ASSY, RH TG LIFT, PLS
48 00-36218-02-AA 1 1 1 TUBE ASSY, RH TG LOWER, PLJR
47 848-008-000 1 1 1 ELBOW, SWIVEL NUT
46 806-011-008 2 2 2 TEE, UNION
45 G06E06E06-024 2 2 2 HOSE ASSY,,
44 G06E06E06-028 2 2 2 HOSE ASSY,,
43 841-008-006 4 4 4 ADAPTER,MALE O-RING,MALE JIC
42 00-24369-02-OA 2 2 2 FITTING,ORIFICE,
41 842-006-006 4 4 4 ELBOW,M O-RING/M JIC,
40 842-006-008 4 4 4 ELBOW, MALE O-RING, MALE JIC
39 00-36217-01-AA 1 1 1 TUBE ASSY, LH TG LIFT, PLS
38 00-36218-01-AA 1 1 1 TUBE ASSY, LH TG LOWER, PLS
37 G12C12E12-019 1 1 1 HOSE ASSY,,
36 841-008-008 2 2 2 ADAPTER, MALE O-RING
35 G06C08G08-030 2 2 2 HOSE ASSY,,
34 485-008-004 4 4 4 WASHER,LOCK
33 415-004-024 4 4 4 CAPSCREW
32 00-36220-01-AB 1 1 1 VALVE ASSY, BODY, PLS
31 00-36222-00-AA 1 1 1 TUBE ASSY, PRESSURE, PLS
30 00-36230-00-AA 1 1 1 TUBE ASSY, RETURN, PLS
29 848-012-001 1 1 1 ELBOW,TUBE
28 445-004-006 10 10 10 NUT, FLANGE LOCK
27 00-36227-00-AA 1 1 1 TUBE ASSY, PRESSURE, PLJR
26 00-36224-00-AA 1 1 1 TUBE ASSY, EJECT RETRACT, PLS
25 00-36228-00-AA 1 1 1 TUBE ASSY, TG RAISE, PLS
24 00-36225-00-AA 1 1 1 TUBE ASSY, EJECT EXTEND, PLS
23 00-36229-00-AA 1 1 1 TUBE ASSY, TG LOWER, PLS
22 755-032-000 1 1 1 ELBOW, STREET
21 545-084-002 1 1 1 VALVE,2" GATE,
20 520-032-000 1 1 1 BARB,HOSE,
19 00-28183-00-AB 1 1 1 HYD ASSY, RESERVOIR
18 715-020-016 1 1 1 BUSHING,REDUCING
17 760-016-032 1 1 1 NIPPLE
16 510-010-000 1 1 1 FILTER ASSY,SPIN-ON RETURN
15 715-020-012 1 1 1 BUSHING,REDUCING
14 804-012-000 1 1 1 STRAIGHT ADAPTER
13 851-012-012 1 1 1 TEE,BRANCH,JIC,SWIVEL NUT
12 G12E12E12-030 1 1 1 HOSE ASSY,,
11 850-012-000 1 1 1 UNION, 90 DEG, JIC
10 843-012-000 1 1 1 UNION, JIC
9 843-008-000 2 2 2 UNION, JIC
8 432-003-019 7 7 9 CLAMP SET,HOSE,19MM
7 445-004-002 24 24 32 NUT,LOCK
6 415-004-032 34 34 42 CAPSCREW
5 432-003-002 19 19 23 COVER PLATE,CLAMP,3 SIZE
4 432-003-013 12 12 14 CLAMP SET,HOSE,13MM
3 00-36215-03-AA - - 1 TUBE ASSY, TG RETRACT, QUS
3 00-36215-02-AA - 1 - TUBE ASSY, TG RETRACT, PLS
3 00-36215-01-AA 1 - - TUBE ASSY, TG RETRACT, PLS
2 00-29605-03-AA - - 1 TUBE ASSY, TG LIFT, QUS
2 00-29605-02-AA - 1 - TUBE ASSY, TG LIFT
2 00-29605-01-AA 1 - - TUBE ASSY, TG LIFT
1 00-36219-03-AA - - 2 TUBE ASSY, 3/4 ROOF, PLS
1 00-36219-02-AA - 2 - TUBE ASSY, 3/4 ROOF, PLS
1 00-36219-01-AA 2 - - TUBE ASSY, 3/4 ROOF, PLS
35
2220
3
2
10
11
12
14 1315
5
6
8
7
5 6
1
4
7
9
36
32
31
29
56 828
27
26
24
30
25
23
16
1718
37
5 33 344
(FILTER ELEMENT #510-011-000)
INSTALL FILTER ASSY WITH
ARROWS POINTING DOWN
SHEET 1OF 2
21
ALL HYD. HOSES REF TO
00-65015-01-AA
ALL HYD TUBES REF TO
6YD: 00-65014-01-AA
8YD: 00-65014-02-AA
10YD: 00-65014-03-AA
00-36304-01-AB IS FOR 6 YD
00-36304-02-AB IS FOR 8 YD
00-36304-03-AB IS FOR 10 YD
