8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
00-36255-XX-AB
ECN 04058 DAS 04/14/09
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36255-XX-AB
09/15/05

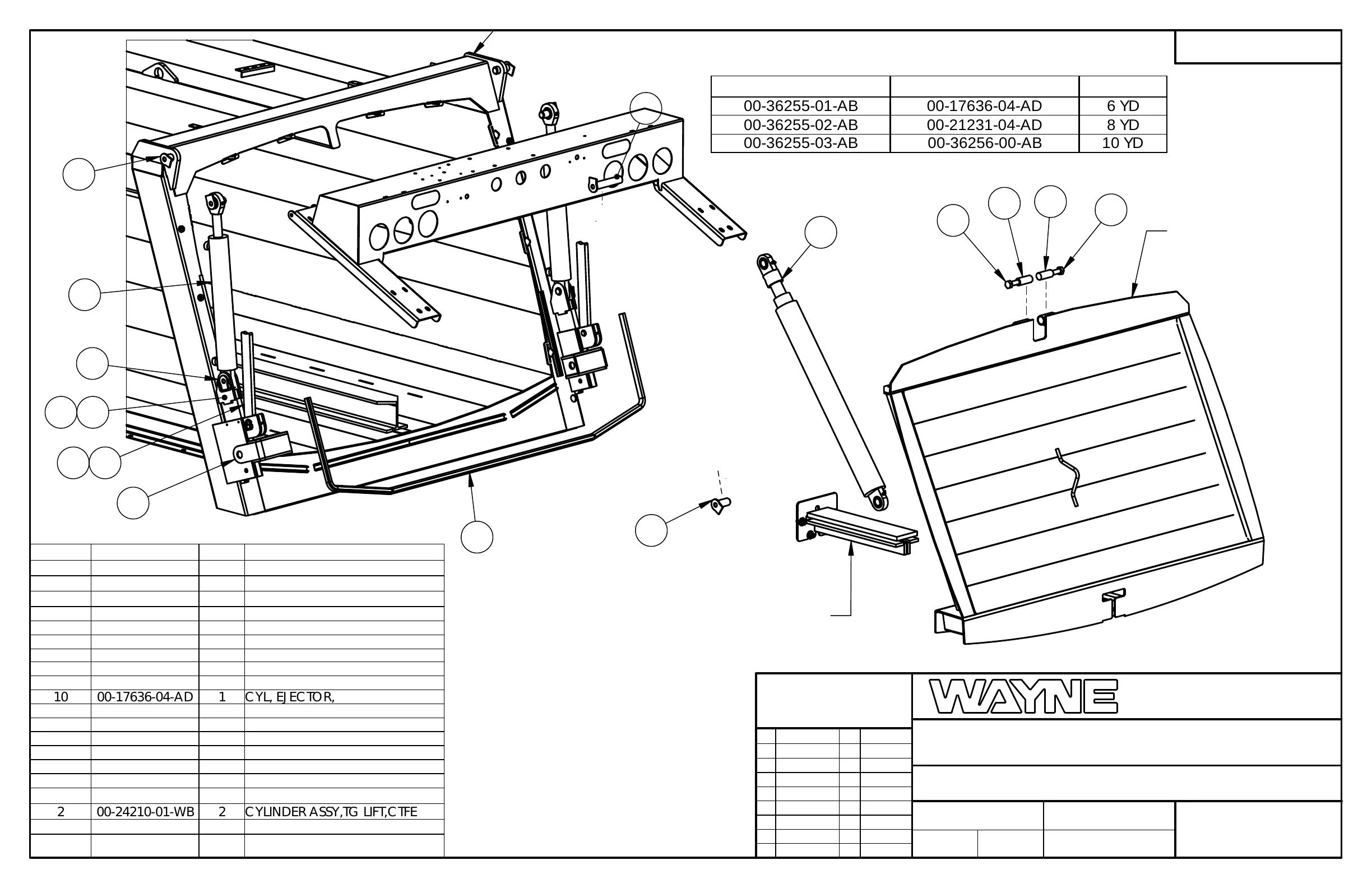

PARTS ASSY, BODY, PLS
02997
DAS
1:14
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
9
1
2
3
8
#00-36137-00-AB
7
6
EJECT PANEL WLD
1
12
13
12
BODY WLD #00-36132-XX-AD
54
13
IN BODY.
6 YD
8 YD
10 YD
11
BLOCKS TO CENTER EJECT PANEL
SHEET 1 OF 2
3) ADJUST TOP EJECT PANEL GUIDE
SHEET 1 OF 2
10
OF SEAL CHANNELS TO FILL GAPS
NOTE:
1) APPLY ANTI-SEIZE COMPOND TO
ALL PINS .
2) APPLY SILICONE SEALER AT ENDS
SEE DETAILS ON PAGE 2 OF 2
ITEM NO. PART NUMBER
Defaul
t/QTY.
DESCRIPTION
20 445-008-003 4 NUT,STD
19 485-008-002 4 WASHER,LOCK
18 485-008-000 8 WASHER,STD FLAT
17 415-008-024 4 CAPSCREW
16 00-27986-00-OA 1 RETAINER,SLIDE BLOCK,
15 00-28017-01-WA 4 BLOCK, SLIDE,
14 00-32282-02-OA 1 BLOCK, SLIDE
13 415-012-032 2 CAPSCREW
12 00-14360-00-OA 2 BLOCK,SLIDE,
11 00-20147-00-AA 1 PIN ASSY, CYL
10 00-17636-04-AD 1 CYL, EJECTOR,
9 00-20155-02-OA 1 SEAL,
8 00-36164-00-AB 2 LATCH WLD, TAILGATE, PLS
7 00-31756-00-AA 2 PIN WLD,LATCH HOOK,
6 00-36231-00-OA 2 PROP,TAILGATE,PLS
5 00-36160-02-AB 1 LATCH WLD, TAILGATE, PLS
4 00-36160-01-AB 1 LATCH WLD, TAILGATE, PLS
3 00-20146-01-AA 2 PIN ASSY
2 00-24210-01-WB 2 CYLINDER ASSY,TG LIFT,CTFE
1 00-23261-00-AA 5 PIN ASSEMBLY
ASSEMBLY NUMBER PART NO. FOR SYM 10 UNIT SIZE
00-36255-01-AB 00-17636-04-AD 6 YD
00-36255-02-AB 00-21231-04-AD 8 YD
00-36255-03-AB 00-36256-00-AB 10 YD
