5.4.4 Ground Cable
A ground cable is required, but not provided. The ground cable (DTS1+ CSfC Ground
Connection) terminal is installed on the DTS1+ CSfC ground stud E1. The provided nut should be
torqued to 18 in. lb. to ensure proper connection.

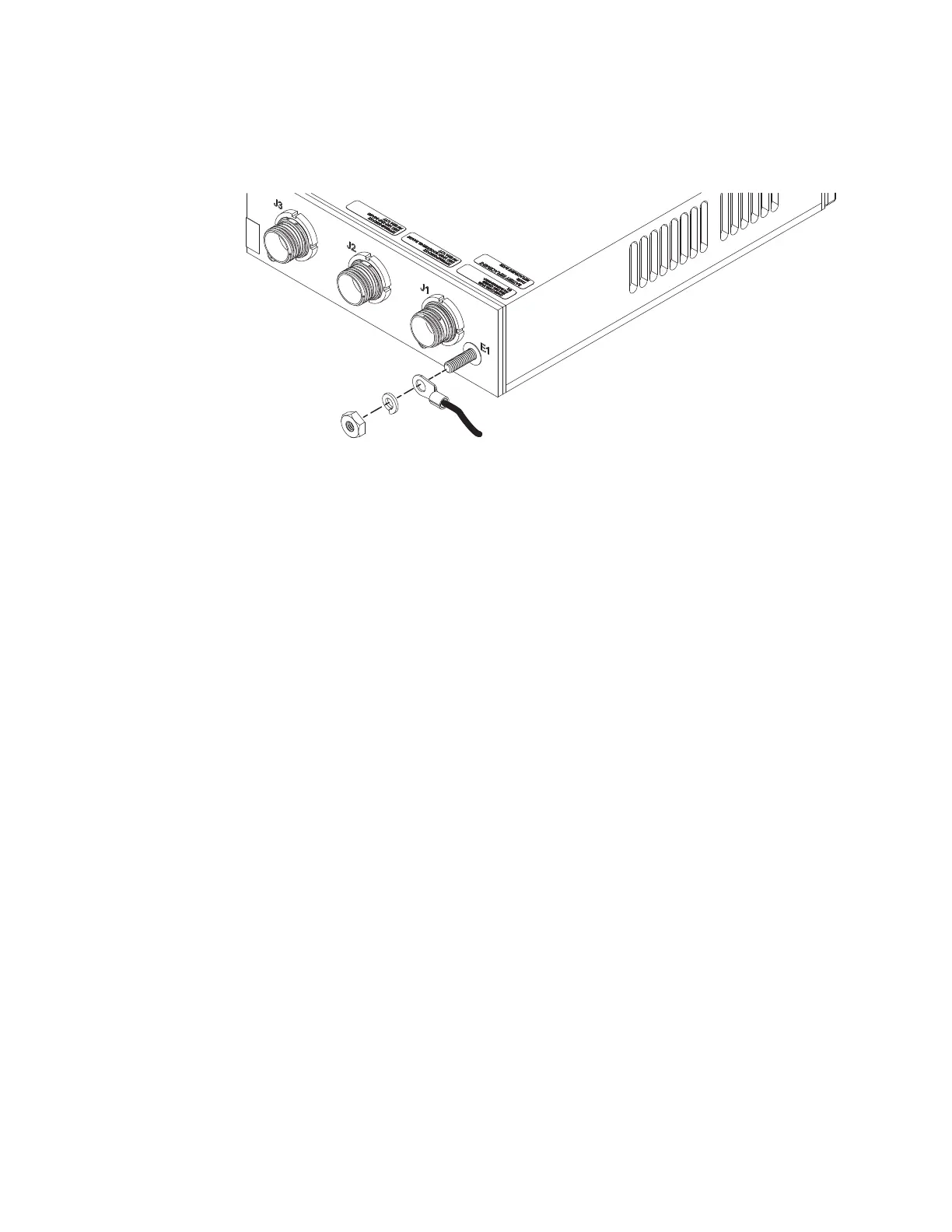

Figure 5.9 DTS1+ CSfC Ground Connection
DDOC0199-0047
Ground Cable
Torque Nut to 18 in. lb.
