EN
39

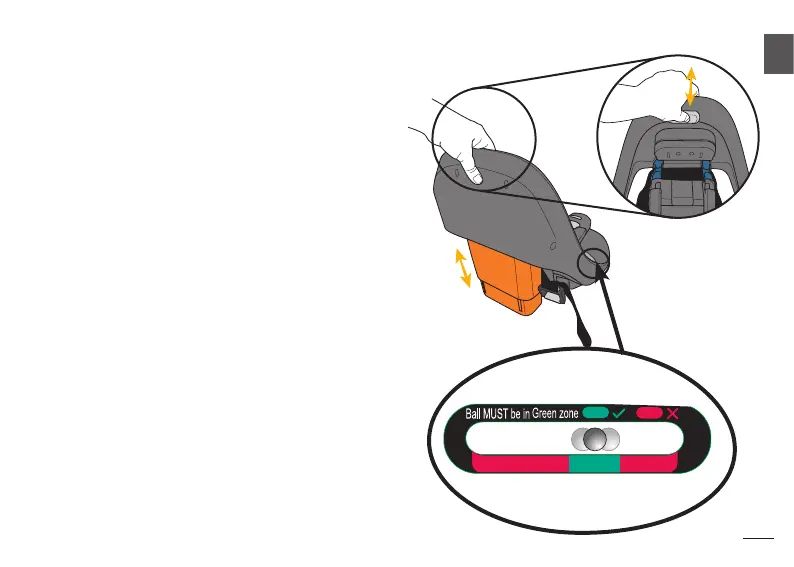

Adjust R
ecline Angle
Squeeze the Level Adjustment Handle to e
xtend
or retract the Leveling Foot until the Base is
within the green zone as shown. There are four
recline positions.
Release handle to lock Foot in place
.
Install Base. Be sure to check for correct recline
angle after installation.
If the Recline Angle is not correct and the ball
falls in the red zone after installation, uninstall the
base, adjust L
eveling Foot and reinstall.
38
40
Table of Contents
English
2
Table of Contents
2
Registration and Recall Information
4
Warnings and Important Safety Information
5
Child Height and Weight Limits
14
Unique Features of the Aton M
15
Overview of the Safelock Base
16
Overview of the Aton M Infant Carrier
18
Using the Infant Carrier
20
Handle
20
Canopy
21
Adjustment
22
Adjusting the Seat
23
Infant Body Support
23
Securing the Child
24
Vehicle Seat Location Requirements
26
Vehicle Seat Belt Requirements
27
Using Latch
30
What Is Latch
30
Outer Seating Positions
30
Removing and Storing Latch Connectors
32
Using the Load Leg
34
Adjusting the Recline Angle Using the Base
38
Installing the Base Using Latch
40
Using a Lap and Shoulder Belt
44
Using a Lap Belt Only
48
Using the Infant Carrier with the Base
52
Attaching Infant Carrier to Base
52
Releasing Infant Carrier from Base
53
And Shoulder Belt
54
Using Only a Lap and Shoulder Belt (Alternate Method)
58
Installing the Infant Carrier
62
Using a Lap Belt Only
62
Using the Linear Side-Impact Protection (Lsp)
64
Adjusting the Recline Angle Without the Base
66
Using the Infant Carrier on an Aircraft
68
General Information about Sensorsafe 2.0
70
Using Sensorsafe 2.0
74
Care and Cleaning
78
Removing the Seat Cover
78
Washing Instructions
80
Safety Checklist
82
Warranty
83
Español
84
Registro E Información sobre Retiro de
86
Productos del Mercado
86
Advertencias E Información Importante de Seguridad
87
Límites de Peso y Altura del Niño
96
Características Únicas
97
Del Sistema Aton M
97
Descripción General de la Base Safelock
98
Descripción General del Portabebé
100
Aton M
100
Uso del Portabebé
102
Asa
102
Capota
103
Hebilla del Arnés, Clip para el Pecho, Ajuste del Arnés
104
Cómo Ajustar el Asiento
105
Soporte para el Cuerpo del Bebé
105
Cómo Asegurar al Niño
106
Requisitos de Ubicación del Asiento del Vehículo
108
Requisitos del Cinturón de Seguridad del Vehículo
109
Uso del Sistema Latch
112
¿En qué Consiste el Sistema LATCH
112
Posiciones de Asientos Exteriores
113
Cómo Retirar y Almacenar Los Conectores Latch
114
Uso de la Pata de Carga
116
Ajuste del Ángulo de Reclinado Usando la Base
120
Instalación de la Base Uso del Sistema Latch
122
Hombro
126
Regazo
130
Cómo Acoplar el Portabebéa la Base
134
Uso del Portabebé con la Base
134
Cómo Liberar el Portabebé
135
La Base
135
Regazo y Hombro
136
Instalación del Portabebé sin la Base
140
Y Hombro (Método Alternativo)
140
Uso solo del Cinturón para Regazo
144
Uso de la Protección Lineal contra Impactos Laterales (Lsp)
146
Ajuste del Ángulo de Reclinado sin la Base
148
Uso del Portabebé en un Avión
150
Información General Acerca de Sensorsafe Tm 2.0
152
Uos Sensorsafe 2.0
156
Cuidado y Limpieza
160
Cómo Retirar la Cubierta del Asiento
160
Instrucciones de Lavado
162
Lista de Verificación de Seguridad
164
Garantía
165
