3. Grasp the other side of the frame and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Make note of either rear foot lifting off the floor easier than the other.
If both rear feet lift off the floor evenly, secure both leveling foot jam nuts against the frame post
using a 9/16” open-end wrench. Unit is leveled.

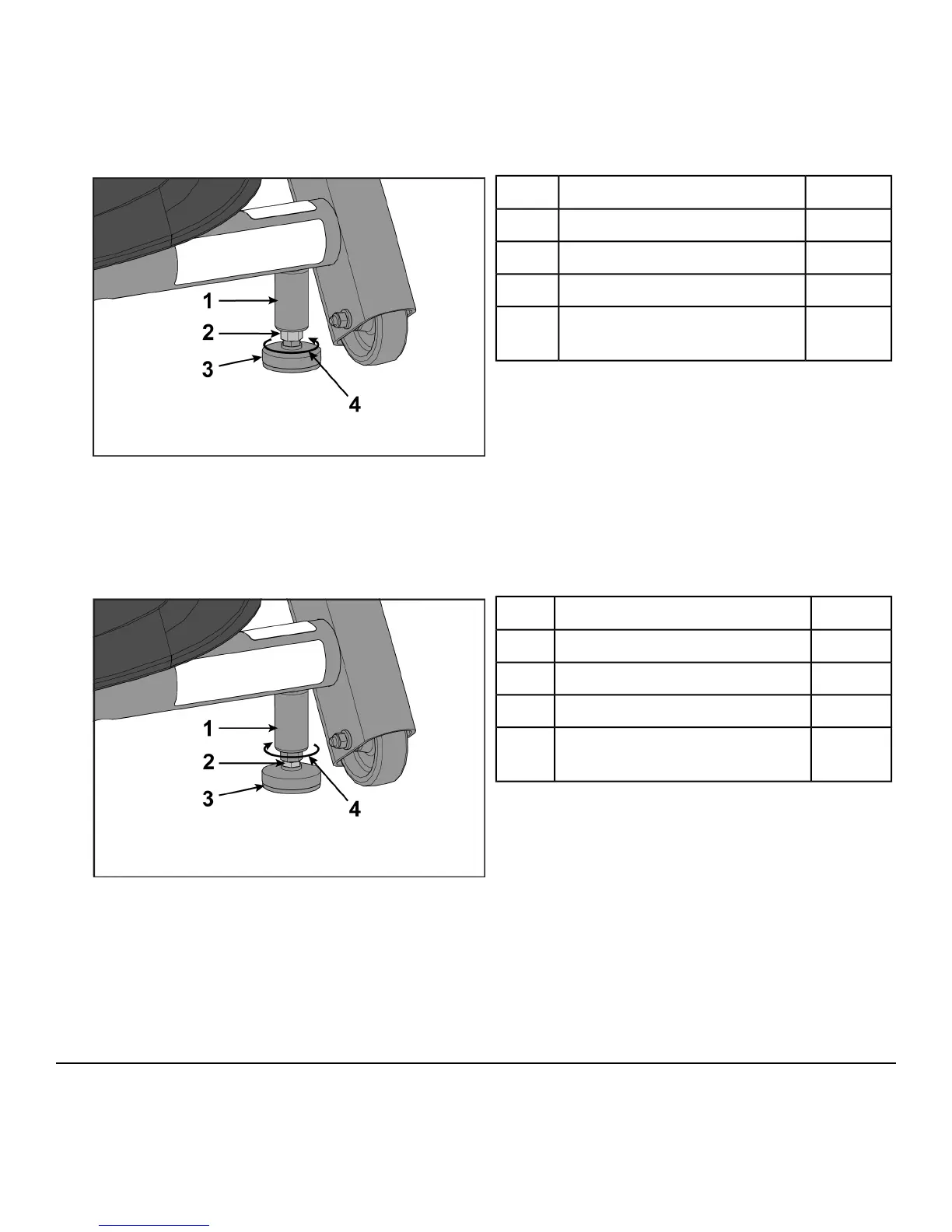

Qty.Description
1Frame post1
1Jam nut2
1Leveling foot3
1
Turn counter-clockwise to
secure
4
Left leveling foot shown
4. Adjust the weight of the rear feet using a 1/2” open-end wrench.
• If the left rear foot lifts up easier, Adjust the right leveling foot nut down.
• If the right rear foot lifts up easier, Adjust the left leveling foot nut down.
Qty.Description
1Frame post1
1Leveling foot nut2
1Leveling foot3
1
Turn clockwise to adjust
leveling foot down
4
Left leveling foot shown
5. Test the unit again for uneven weight on the rear feet. Adjust leveling foot nuts until each rear foot
lifts with even force.
6. Secure both jam nuts using a 9/16” open-end wrench. Unit is leveled.
Install optional coax cable (E3 View Monitor option)
Install 6’ coax cable to the coax cable connector in base of unit. Do not install if facility provides coax
cable to base of unit.
Page 24 of 82
Cybex 525AT Arc Trainer Part Number 5525-4 F
