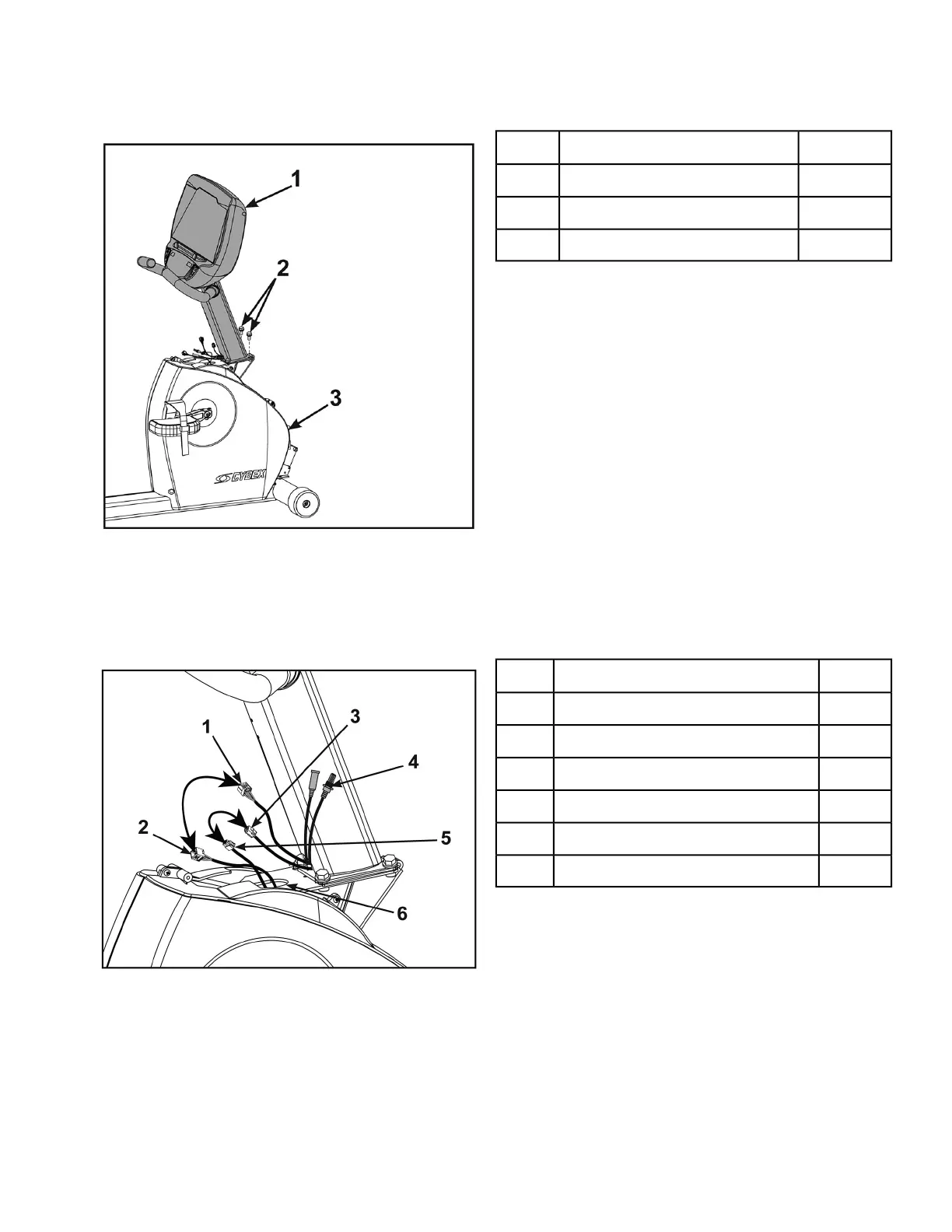

2. Place the console assembly in the correct position on the base assembly by sliding into position
onto the two mounting screws.
Qty.Description
1Console Assembly1
2Screws2
1Base Assembly3
3. Hand thread the other two screws.
4. Securely fasten the four screws with a 1/2” socket wrench.
5. Plug the upper display cable connector into the lower display cable connector.
Ensure cable connectors click together and are securely fastened.
Qty.Description
1Upper Display Connector1
1Lower Display Connector2
1Upper Heart Rate Connector3
1A/V Cables (optional)4
1Lower Heart Rate Connector5
1Top Hole In Frame6
6. Plug the upper heart rate connector into the lower heart rate connector.
7. Tuck each of the cable connectors into the top hole in the frame.
Do not pinch or damage the cables during assembly.
