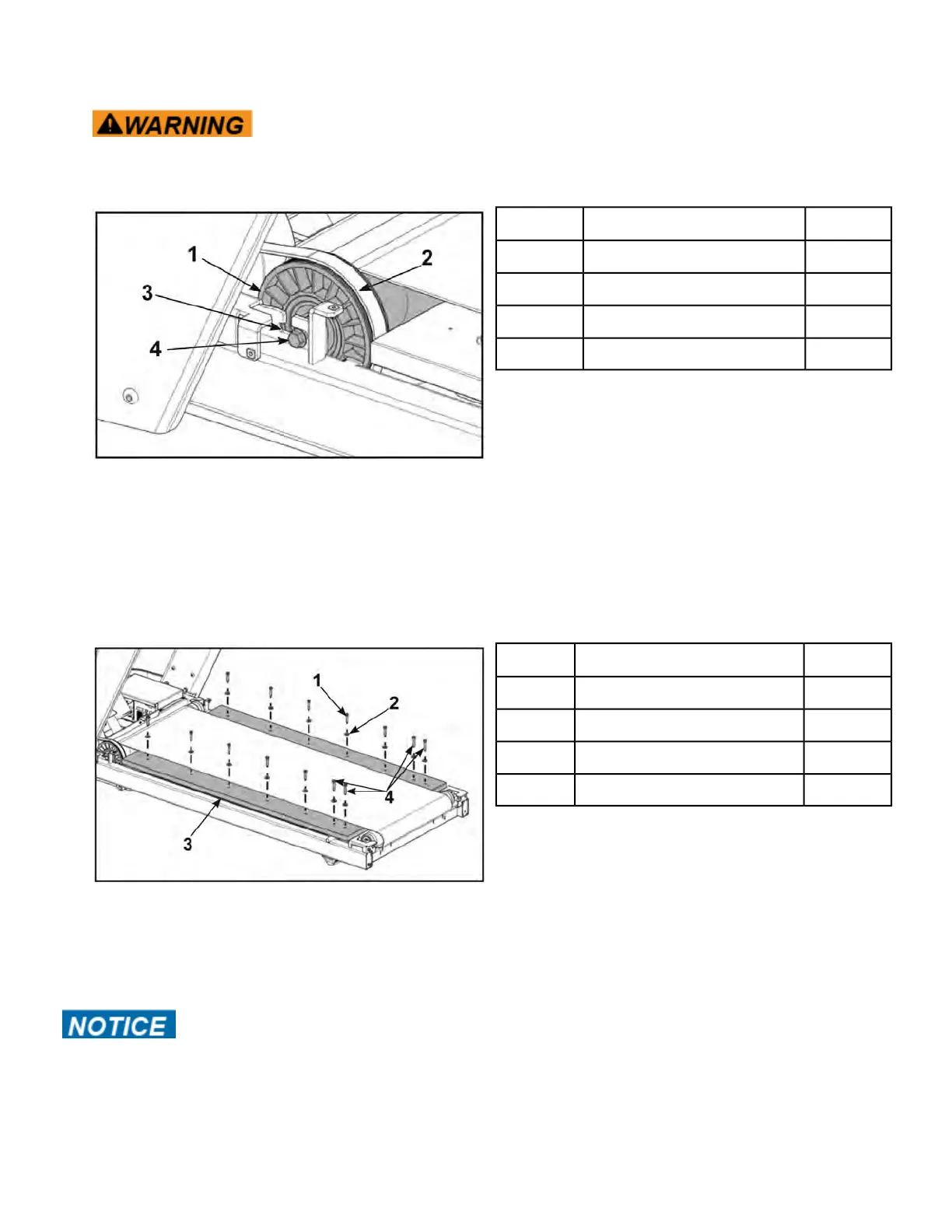

Remove front roller
1.
Moving parts hazard. To avoid serious injury slowly release tension to
parts.
Loosen the left mounting bolt using a 9/16” Socket wrench.
Qty.DescriptionItem
1Front roller1
1Drive belt2
1Tensioning slot3
1Mounting bolt4
2. Loosen the right mounting bolt using a 9/16” Socket wrench.
3. Remove the front roller and slide the drive belt off of the front roller.
Remove running deck
1. Remove the fourteen bolts and fourteen flat washers that hold the deck in place using a 1/2” Socket
wrench.
The four rear pivot bolts are longer. The nuts may fall out of the deck pivots.
Qty.DescriptionItem
10Bolt, deck, 5/16-18 x 1.5”1
14Flat washer2
1Deck3
4Bolt, pivot, 5/16-18 x 1.75”4
2. Slide the deck out of the frame.
The deck has two wear sides and can be flipped. If both sides are worn, replace deck.
Inspect deck bumpers
Inspect the deck bumpers for cracks or wear.
Replace the deck bumpers if the rubber is cracked or worn.
