Calibration
Calibrate Incline motor 525T

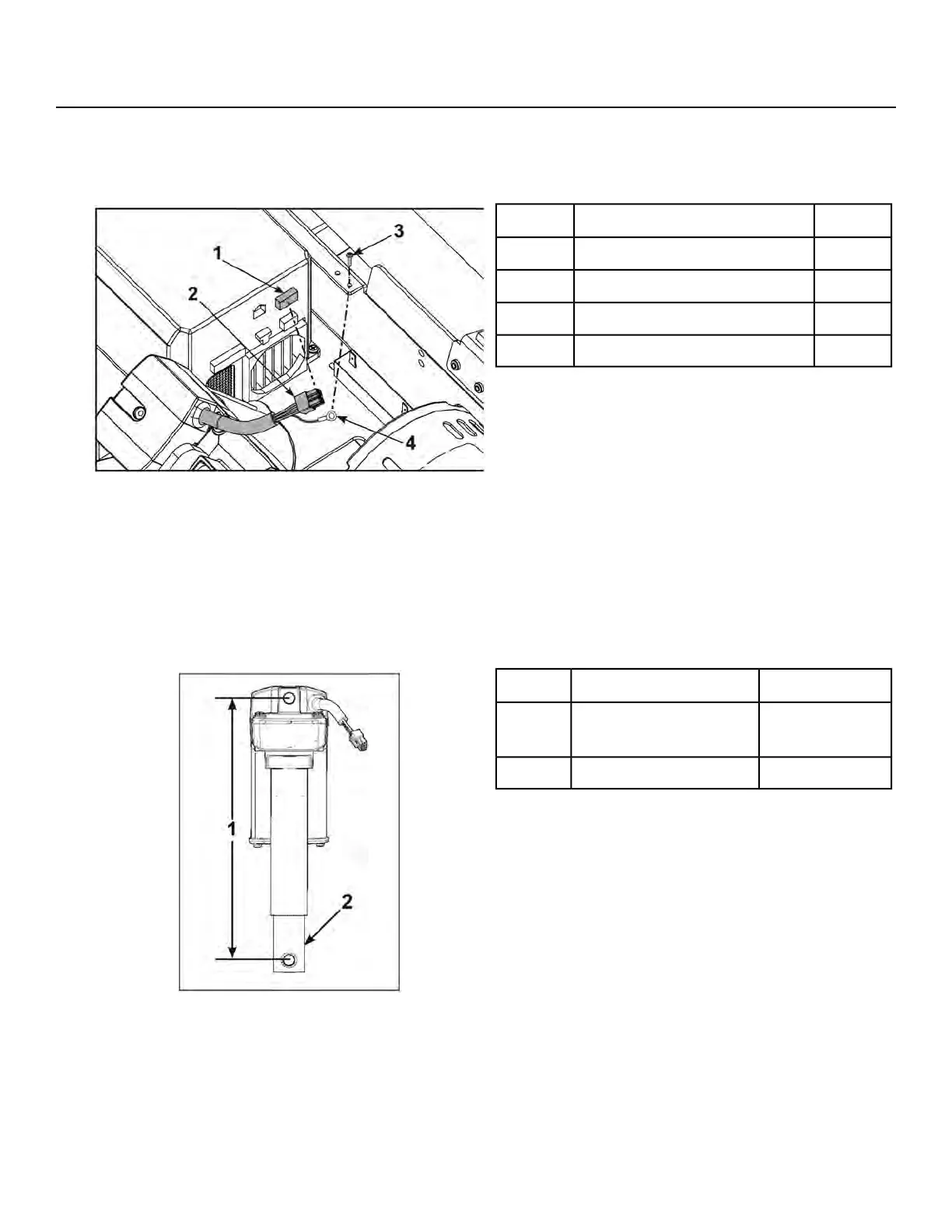

1. Plug the incline motor cable into the motor controller connector.
Qty.DescriptionItem
1Motor Controller Connector1
1Incline Motor Cable2
1Ground Wire Screw3
1Ground Wire4
2. Install the ground wire screw securing the ground wire using a Phillips screwdriver.
3. Connect the main power cord into the power outlet.
4. Turn the main power switch to the on (I) position.
The incline motor will now rotate to find the zero percent position.
5. Wait for the incline motor to stop turning.
6. Turn the tube nut with your fingers until it measures the correct center to center length. This length
is measured from the center of the top hole to the center of the bottom hole.
Qty.DescriptionItem
11.75” (29.8
cm)
Center to center
length
1
1Tube Nut2
7. Unplug the power cord from the power outlet.
