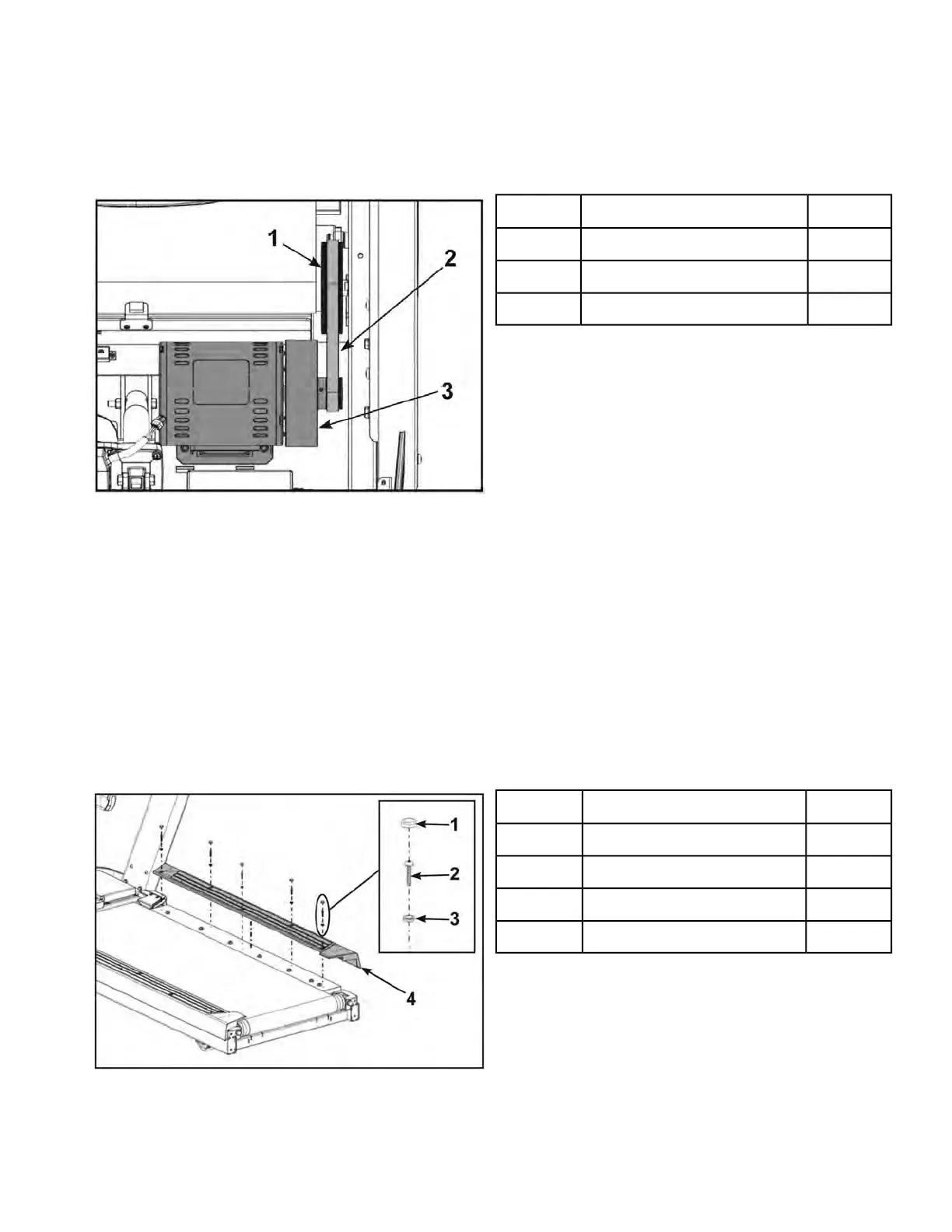

3. Install the two roller bolts that fasten the front roller to the frame.
Do not tighten the bolts at this time.
Ensure that the drive belt is aligned properly in the grooves on the drive motor pulley and front roller
pulley. The drive belt should be positioned in the inner most groove of the drive motor pulley.
Qty.DescriptionItem
1Front Roller Pulley1
1Drive Belt2
1Drive Motor Pulley3
Tighten rear roller
1. Tighten the two rear roller bolts using a 3/4” Socket wrench.
Tighten each bolt evenly, making sure not to tighten either bolt too many turns before moving to the
other bolt.
2. Continue to tighten bolts until the front roller is all the way back in the tensioning slots.
3. Tighten the front roller bolts using a 9/16” Socket wrench.
Install top steps
1. Install the five screws and five screw cover bases securing the right top step using a Phillips
screwdriver.
Do not tighten screws at this time.
Qty.DescriptionItem
5Screw cover1
5Screw2
5Screw cover base3
1Top step, right4
2. Install the five screws and five screw cover bases securing the left top step using a Phillips
screwdriver.
