CYBEX 525T Service Manual

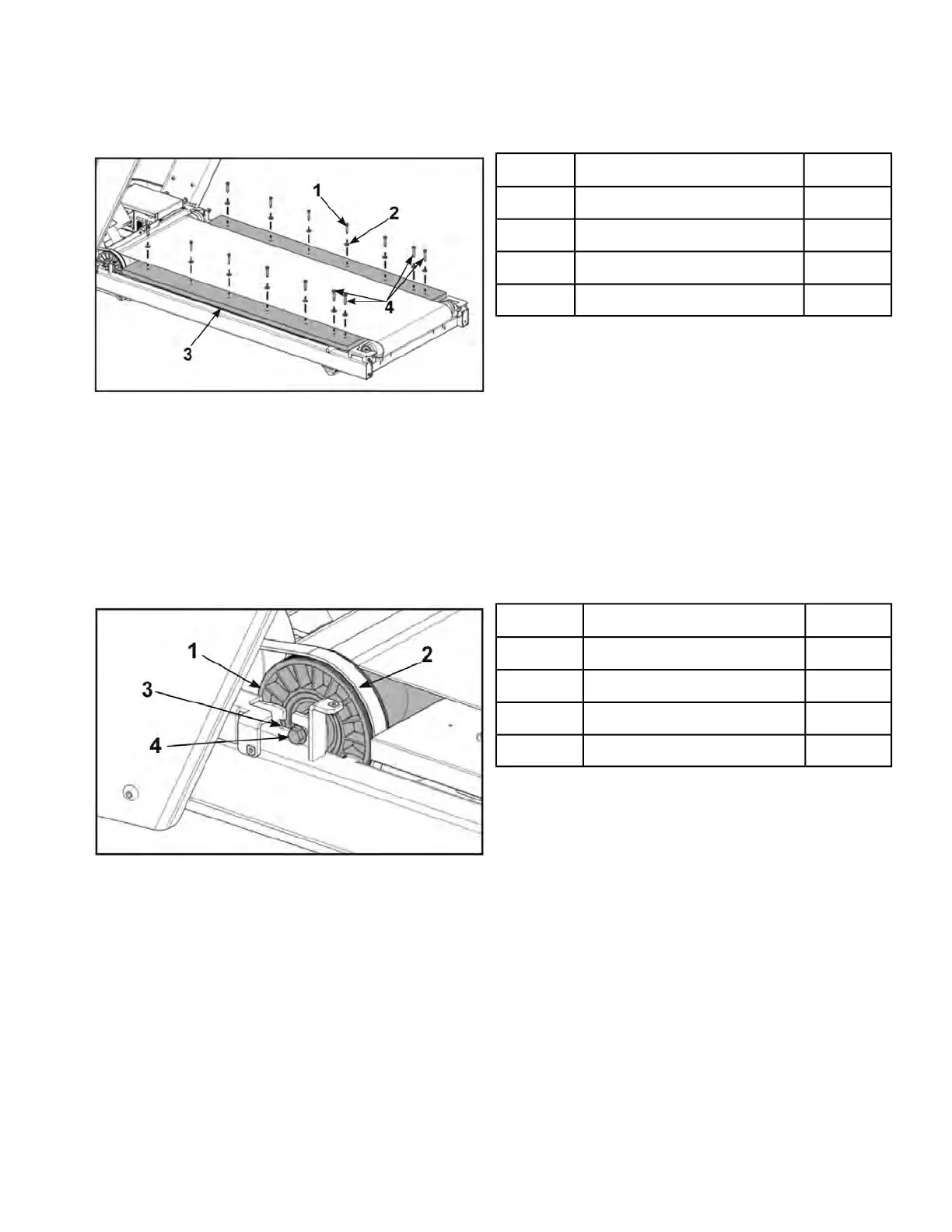

2. Install the two pivot bolts and two flat washers that secure the deck to the left deck pivot using a 1/2”
Socket wrench.
The deck pivots need to be fully seated onto the pivot shaft.
Qty.DescriptionItem
10Bolt, deck, 5/16-18 x 1.5”1
14Flat washer2
1Deck3
4Bolt, pivot, 5/16-18 x 1.75”4
3. Repeat step for the right deck pivot.
4. Install the ten deck bolts and ten flat washers that secure the deck to the deck stiffener using a 1/2”
Socket wrench.
Tighten to 80 in-lbs (9 Nm) using a torque wrench.
Install front roller
1. Slide the front roller into the running belt.
2. Slide the drive belt around the front roller before attaching the front roller.
Qty.DescriptionItem
1Front roller1
1Drive belt2
1Tensioning slot3
1Mounting bolt4
Page 133 of 199
